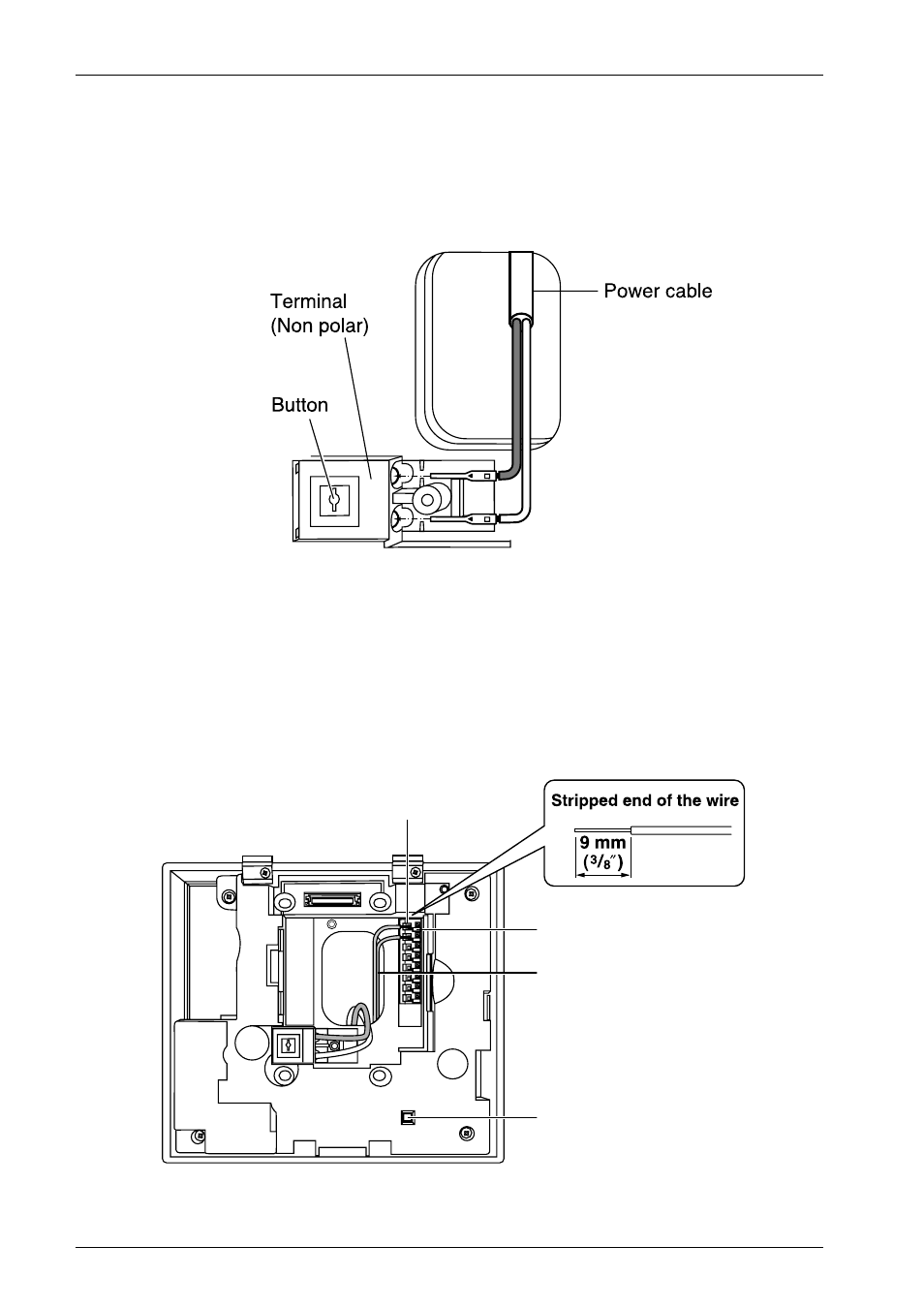

Attach the wires that connect to the monitor station and sub monitor station to
the terminal. See page 16 for details on how to attach the wires.
• See page 9 for the wire type and distance.
• See the wiring schematic diagram on page 9.
4
Attach the power cable to the terminal. See page 16 for details on how to attach
the power cable.
• If you want to use your own power cable, see page 9 for the type and distance.
Button
Power switch
• When the front case is
attached, the power
switch will be pressed and
power will be supplied.
Terminal
(Non polar)
Wire
(Not included)
