Installing the sub monitor station

1

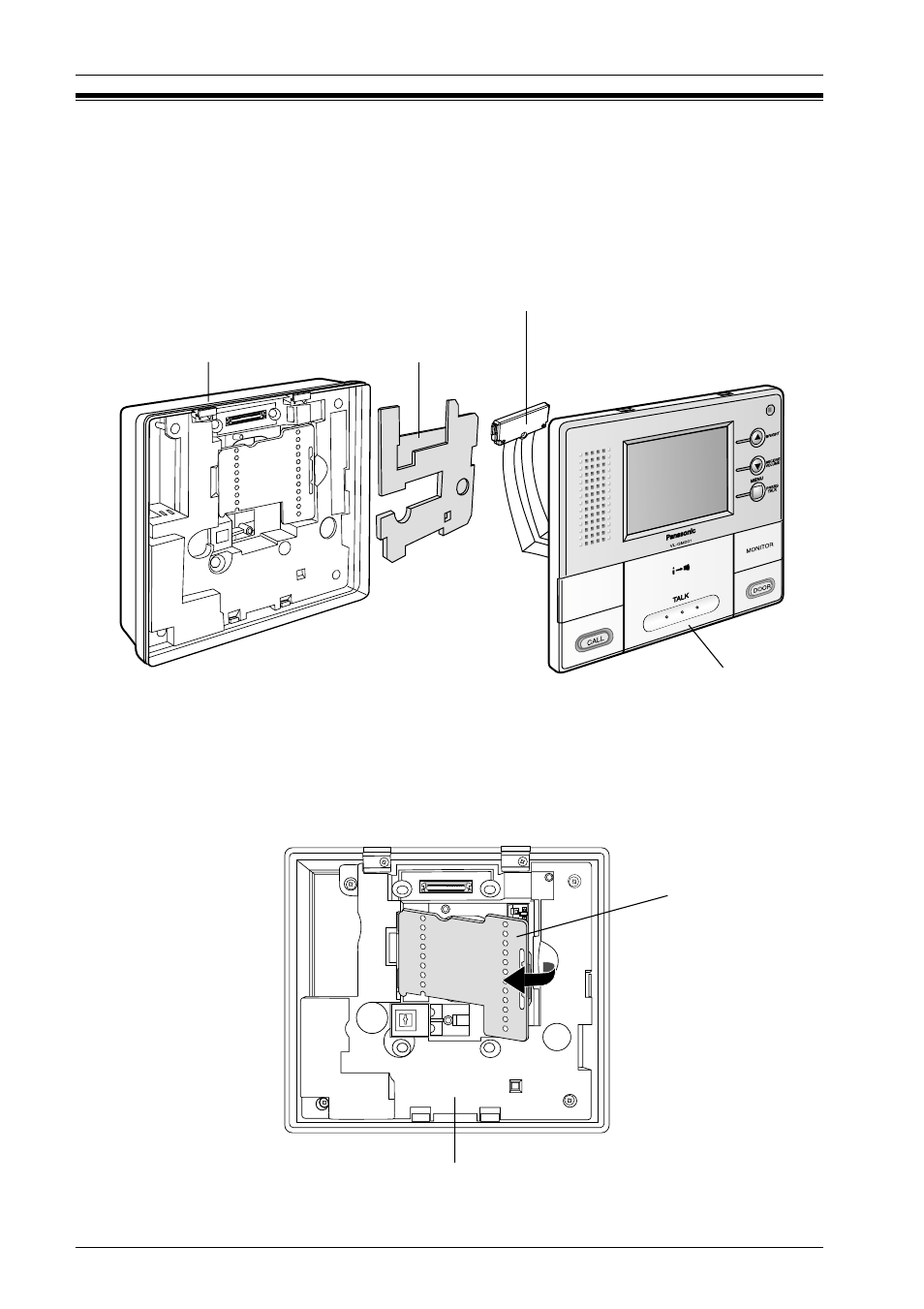

Remove the sub monitor station from the box, and then remove the padding
material from between the front case and the bottom case.

• The front case and the bottom case are not joined together, so be careful not

to drop them when taking them out of the box.

Bottom case

Front case

Padding material

Connector

2

Remove the terminal cover.

Bottom case

Terminal cover

Introduction and Installation
