APPENDIX D
V.35 INTERFACE STANDARDS (DCE)
23
B
F
L
R
V
Z
DD
NN
A
E
K
U
Y
CC
HH
MM
D
J
N
T
X
BB
FF
LL
H
M
S
W
AA
EE
KK
A
JJ
P
Frame Ground -A
Request to Send -C
Data Set Ready -E
Data Terminal Ready -H
(Not Used) -K
(Not Used) -M
Transmitted Data (A) -P
Transmitted Data (B) -S
External Clock (A) -U
External Clock (B) -W
Transmit Clock (A) -Y
Transmit Clock (B) -AA
B- Signal Ground
D- Clear To Send
F- Data Carrier Detect
L- Remote Digital Loop
N- Local Analog Loop
R- Receive Data (A)
T- Receive Data (B)
V- Receive Clock (A)
X- Receive Clock (B)

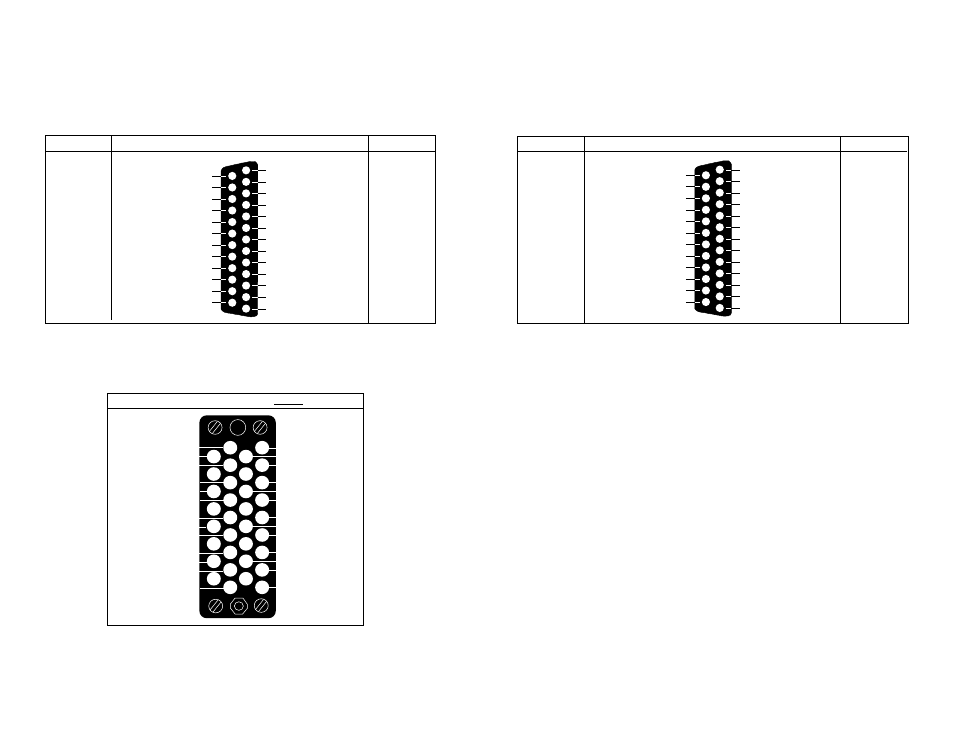

CCITT V.35 Interface (M/34 Female)
1 - (FG) Frame Ground Common
2 - Transmit Data A To 1045RC
3 - Receive Data A From 1045RC
4 - (RTS) Request to Send To 1045RC
5 - (CTS) Clear to Send From 1045RC
6 - (DSR) Data Set Ready From 1045RC
7 - (SG) Signal Ground Common
8 - (CD) Carrier Detect From 1045RC
9 - Receive Clock B From 1045RC
11 - External Clock B To 1045RC
12 - Transmit Clock B From 1045RC
To 1045RC Data Term. Ready (DTR) - 20
DIRECTION CCITT V.35/EIA-530 INTERFACE (DB-25) DIRECTION
To 1045RC External Clock A - 24
From 1045RC Transmit Clock A - 15
From 1045RC Receive Clock A - 17
To 1045RC Local Analog Loop (LAL) - 18
To 1045RC Remote Digital Loop (RDL) - 21
To 1045RC Transmit Data B - 14
From 1045 Receive Data B - 16
APPENDIX E
RS-232 INTERFACE STANDARDS (DCE)
Copyright ©
Patton Electronics Company
All Rights Reserved
24
1- (FG) Frame Ground
2- (TD) Transmit Data
To 1045RC
3- (RD) Receive Data From 1045RC
4- (RTS) Request to Send To 1045RC
5- (CTS) Clear to Send From 1045RC
6- (DSR) Data Set Ready From 1045RC
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
From 1045RC
From 1045RC Transmit Clock - 15
From 1045RC Receive Clock - 17
To 1045RC Analog Loop - 18
To 1045RC Data Term. Ready (DTR) - 20
To 1045RC Digital Loop - 21
To 1045RC External Clock - 24
DIRECTION RS-232C/V.24 INTERFACE (DB-25) DIRECTION
