Powerware Ferrups FE/QFE 500VA User Manual
Page 43
External Bypass Switch Installation
37
Powerware
®
FERRUPS FE/QFE UPS (500 VA–18 kVA) Installation Guide
:
Rev A www.powerware.com
60 Hz 208 Vac or 240 Vac Input - 120/208 Vac or 120/240 Vac Output
For 208 Vac, use only a BBM switch.

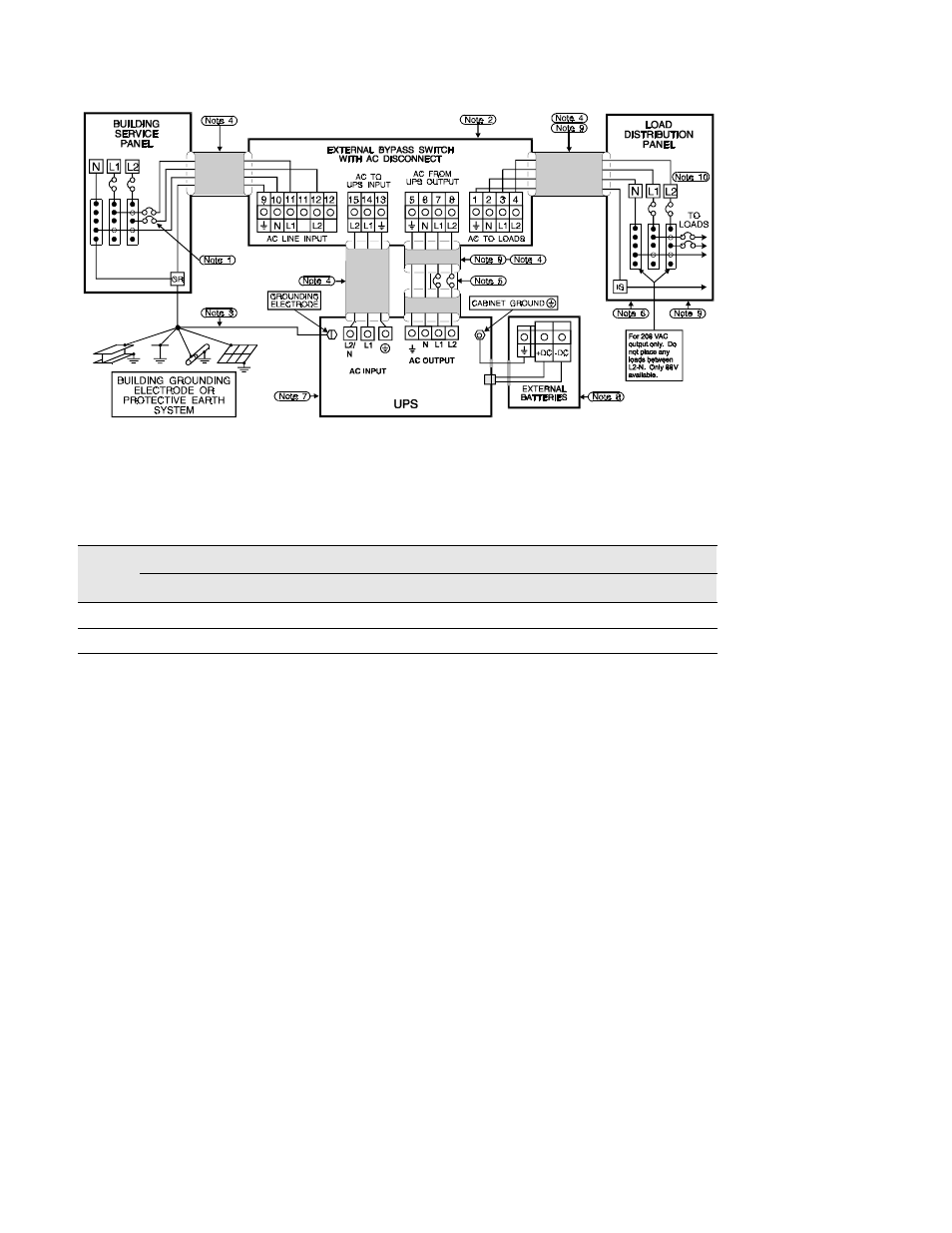

Figure 9. FE 500 VA–3.1 kVA UPS with External Bypass Switch
Table 14. Minimum Recommended Circuit Breakers for 208 Vac or 240 Vac
208 Vac
240 Vac
Charger
500 VA –1.4 kVA
1.8 kVA
2.1 kVA
3.1 kVA
500 VA –1.4 kVA
1.8 kVA
2.1 kVA
3.1 kVA
Standard
15
15
15
20
15
15
15
15
15A
15
20
25
30
15
20
20
25
