Setup
19 Powerware ® FERRUPS FE/QFE UPS (500 VA–18 kVA) Installation Guide
:
Rev A www.powerware.com
D D
A
B
BPE-01 BPE-02, 04, and 05
C
E
A
B
C
E

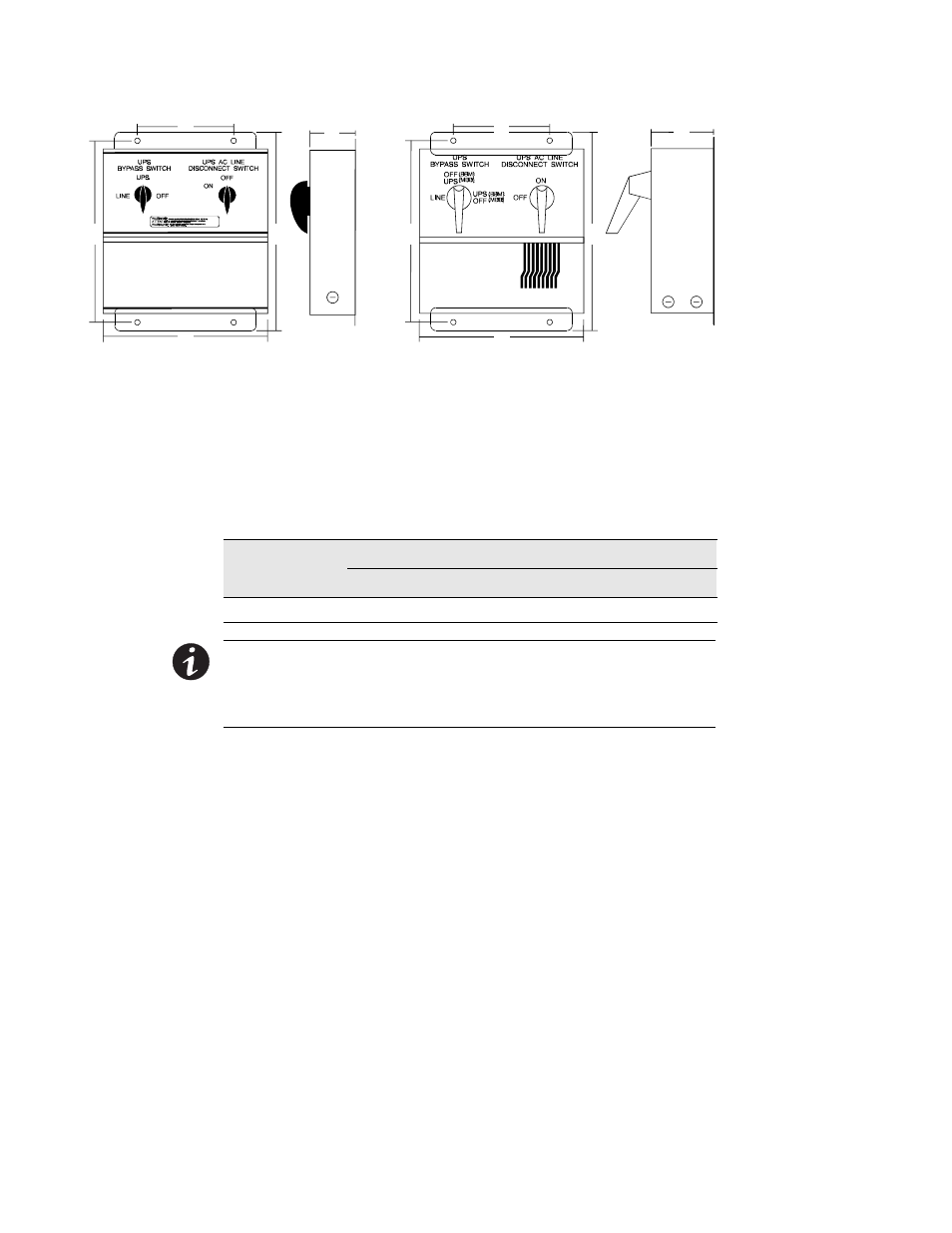

Figure 3. Bypass Switch Dimensions
Equipment Clearances
All cabinet sizes require the following clearances to allow for servicing
and adequate ventilation:
Table 5. Clearances for the UPS and Battery Cabinets
Dimensions (see Figure 4)
Sides (G) Front (H) Top (I) Back (J)
36 2 (91.5 cm) 36 2 (91.5 cm) 12 2 (30.5 cm) 4 2 (10.0 cm)
NOTE A minimum clearance of 4
2 (10 cm) is required on the sides, front, and back
and 12
2 (30.5 cm) above the UPS for proper ventilation.
NOTE For 4.3–18 kVA models with an internal bypass switch, measure from the back
of the switch.
