2. Raise or lower the foot platform to the desired height.
3. Reinstall the quick release fastener into the foot platform
bracket and tighten.
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform with a hex key and
wrench.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the setscrew. See figure 27.
2. Turn the setscrew to raise or lower the front of the foot
platform.
Swing-Away Footrests
Swing-Away Footrests (SFRs) enable you to rotate the foot-
rests to the side before you transfer onto or off of your power
chair. See figure 28.
To rotate the SFRs:
1. Push in the release lever.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the two adjustment screws from the back of
each footrest extension.
2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.
Elevating Leg Rests
Elevating Leg Rests (ELRs) offer an infinite range of adjust-
ment for the leg angle and a footrest adjustment range of 12–
19 in. (30.48-48.26 cm). See figure 29.
To rotate the ELRs:
1. Push in release lever A.
2. Rotate the ELRs.
To adjust the ELR angle:
1. Push down release lever B.
2. Move the leg rest to the desired angle.
To adjust the ELR length:
1. Remove the two adjustment screws from the back of
each leg rest extension.
2. Slide the leg rest up or down to the desired length.
3. Reinstall the two adjustment screws.

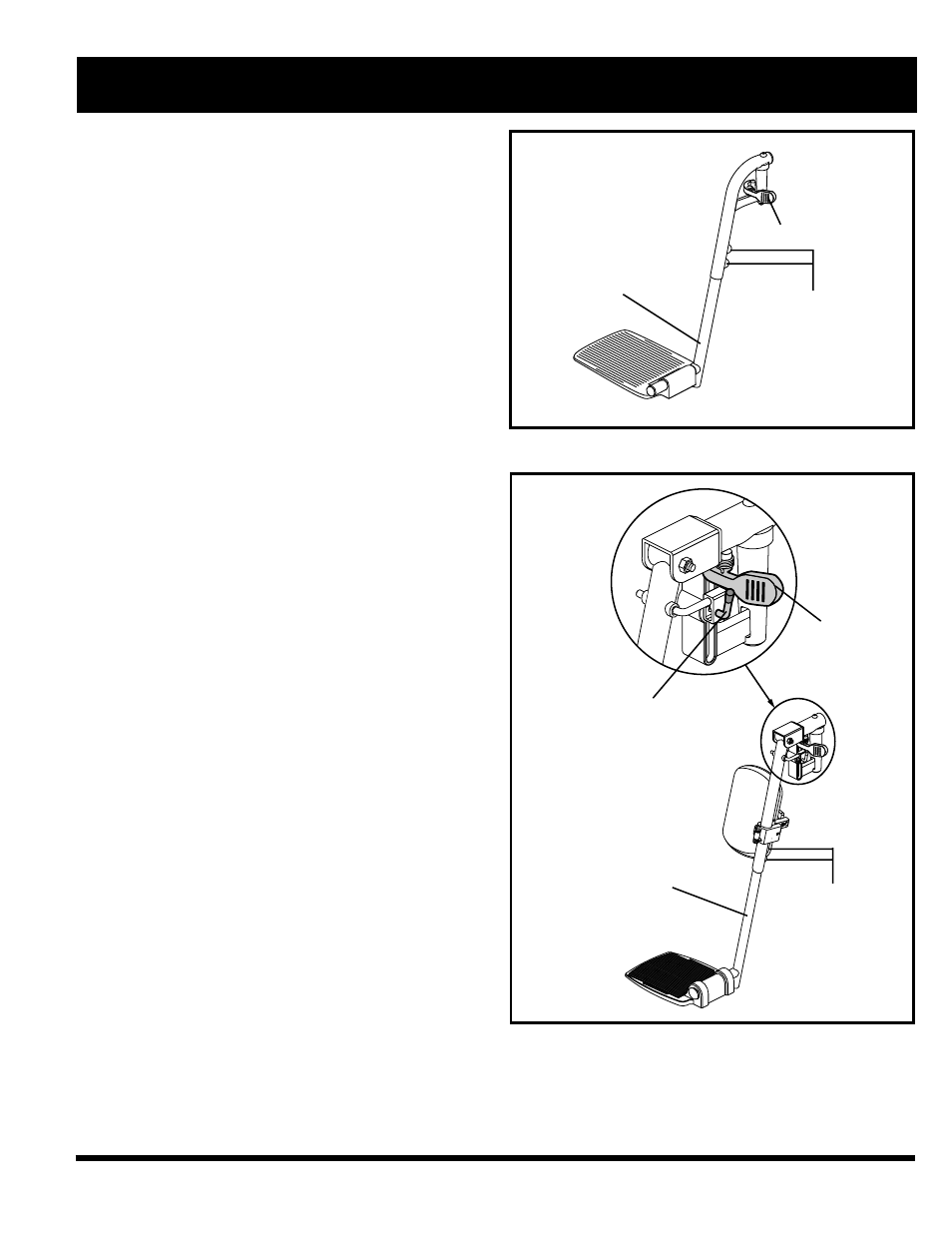

Figure 28. Swing-away Footrest Adjustment
ADJUSTMENT
SCREWS
FOOTREST
EXTENSION
SFR RELEASE LEVER
Figure 29. Elevating Leg Rests
V I . C O M F O R T A D J U S T M E N T S
ADJUSTMENT
SCREWS
RELEASE LEVER B
RELEASE LEVER A
LEG REST
EXTENSION
