Jazzy Select 7
www.pridemobility.com
23
V . S E R V I C E
Dismantling Your Power Chair
Your power chair can be dismantled into eight component assemblies (including the seat) to facilitate servicing the unit. See
figure 13. The seat assembly, foot platform, and battery boxes can be removed with no tools required. The power base
assembly can be further dismantled via the removal of the service disassembly bracket. See figure 13 and 17.
WARNING! You should take care not to place your hands or fingers on the areas of the component
assemblies where they may be pinched, as the assemblies “snap” together or “snap” apart.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specifications table for specific component weights before you dismantle
the power chair for service.
NOTE: During both the dismantling and the assembly of your power chair for service, you may find it helpful
to engage the drive motors to secure the unit from rolling. See III. “Your Power Chair.”

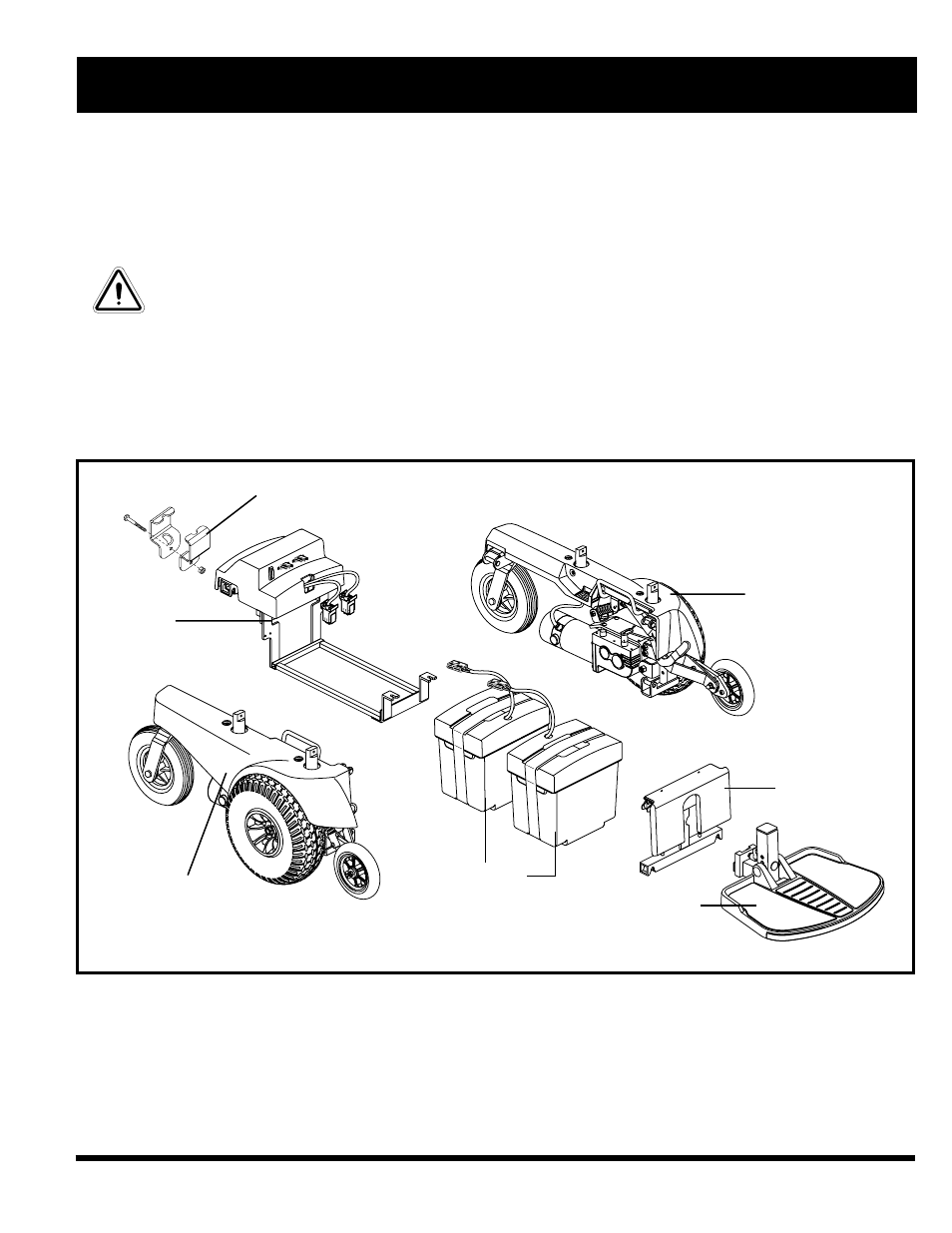

Figure 13. Jazzy Select 7 Component Assemblies
RIGHT POWER BASE
FRAME ASSEMBLY
BATTERY BOXES
BATTERY WELL
FRAME
FRONT FRAME
LEFT POWER BASE
FRAME ASSEMBLY
FOOT PLATFORM
SERVICE DISASSEMBLY BRACKET
