Jazzy Select 7 www.pridemobility.com 25
4. Remove the foot platform by lifting it up, then pulling it out away
from the chair. See figure 15.
5. Disconnect both battery connectors and both motor connectors.
See figure 7.
6. Lift and remove each battery box. See figure 16.
7. Remove the service disassembly bracket located between the
latch release levers. See figure 17.
NOTE: The service disassembly bracket must be reinstalled
as the chair is reassembled after service.
8. Squeeze together the latch release levers that hang vertically
down from the crossbar at the rear of the battery well frame.
See figure 18.
9. Lift up the rear end of the battery well frame. Pull it to the rear
of the chair to release the front slots from the locating pins on
the front frame bottom bar.
10. Stand behind your power chair and grasp one of the power
base frame assembly handles. See figure 19.
11. Press the chrome latch release lever toward the center of the
frame and hold it.
12. Push the frame assembly outward and pull up on the front frame
until the latching mechanism releases.
13. Keep pulling upward until the locating pin on the bottom of the
front frame releases from its slot in the power base frame
assembly.
14. Carefully let the power base frame assembly tilt to a resting
position.
15. Repeat steps 9 through 13 for the other power base frame
assembly.
V . S E R V I C E

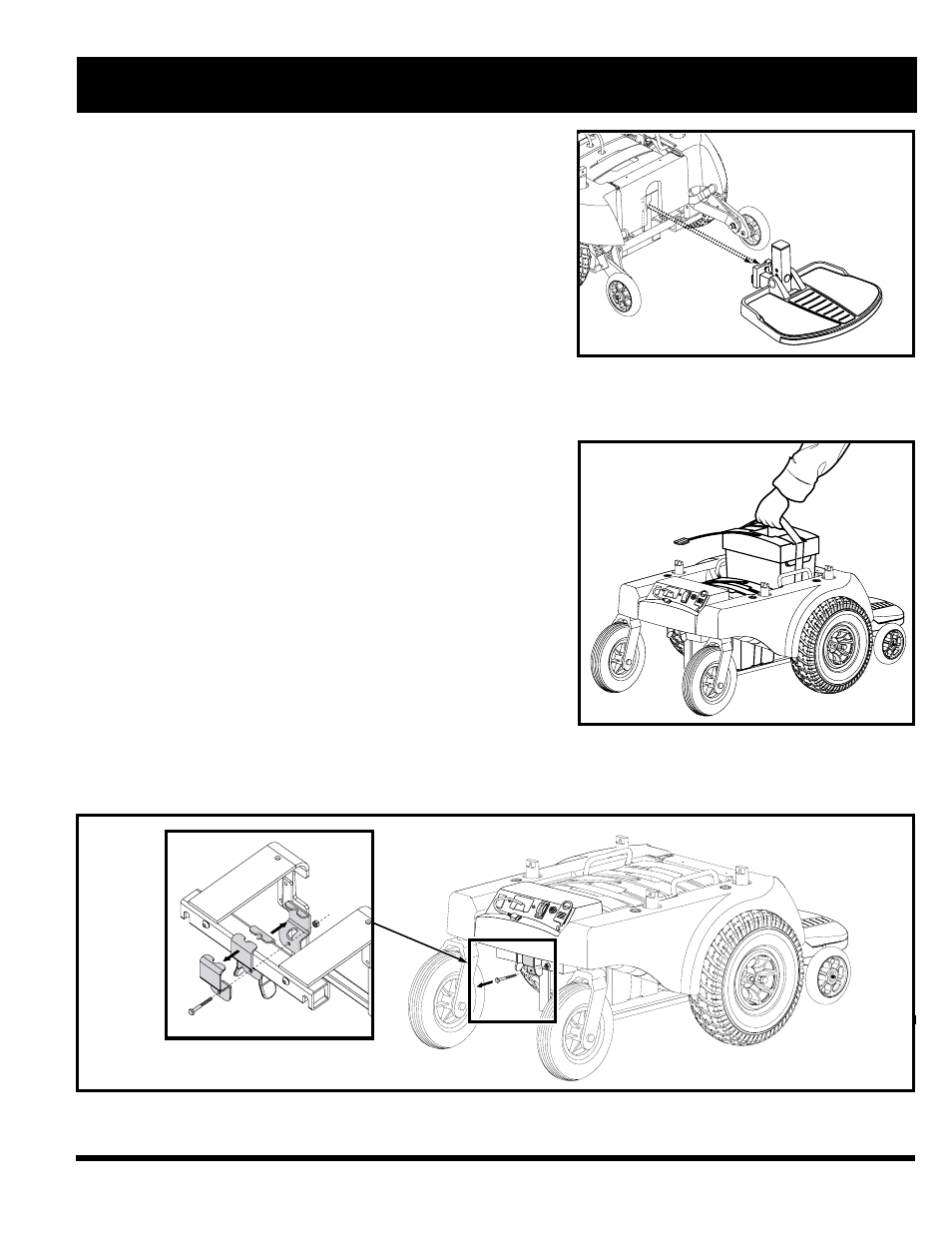

Figure 16. Removing Battery Boxes
Figure 15. Foot Platform Removal
Figure 17. Service Disassembly Bracket
