Jazzy Select 7 www.pridemobility.com 17
I I I . Y O U R P O W E R C H A I R

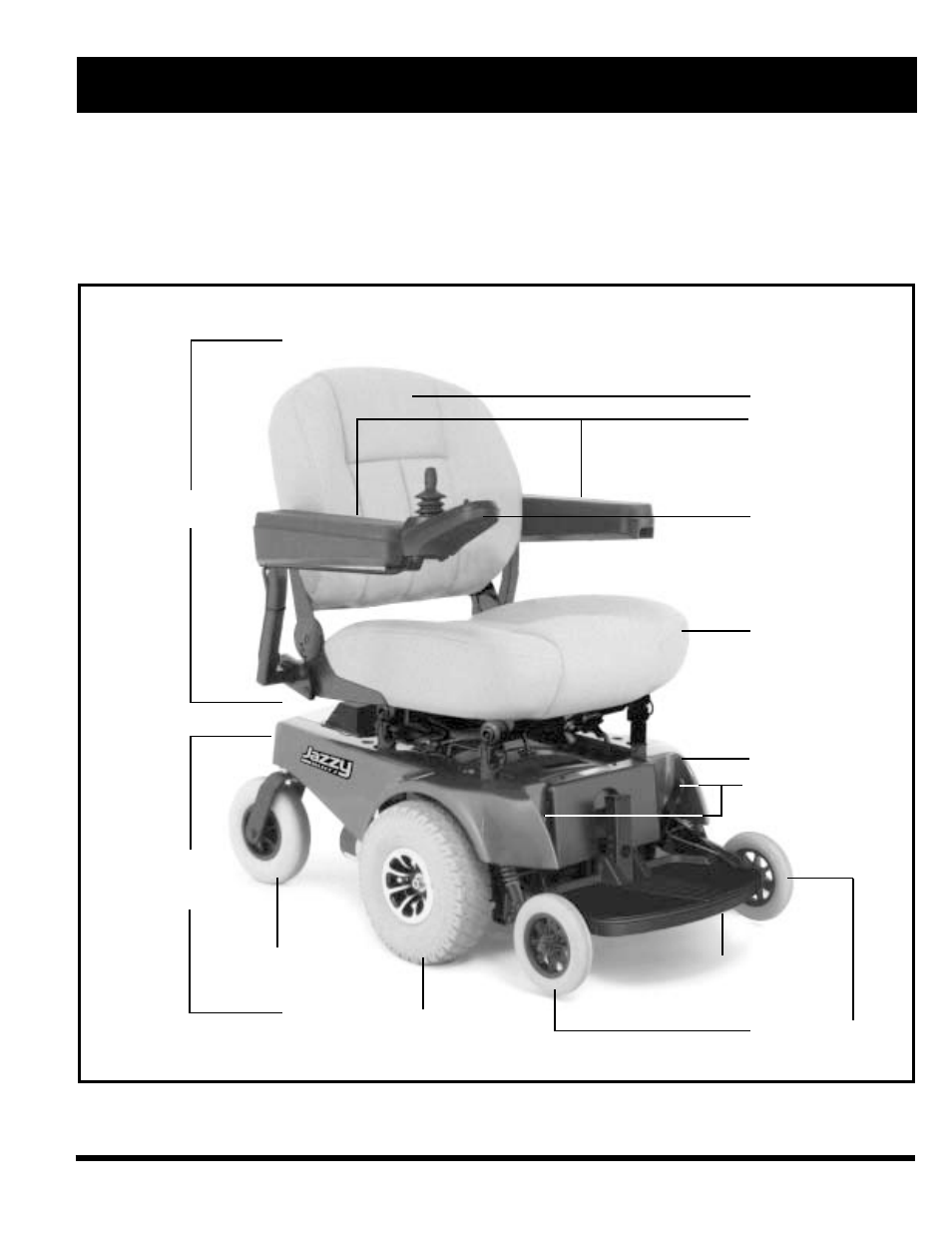

Figure 5. The Jazzy Select 7
SEAT BACK
ANTI-TIP WHEELS
ARMRESTS
BODY SHROUD
FOOT RIGGING
(FOOT PLATFORM SHOWN)
CASTER WHEEL
DRIVE WHEEL
CONTROLLER
POWER
BASE
ASSEMBLY
SEAT
ASSEMBLY
FREEWHEEL LEVERS
SEAT BASE
THE JAZZY SELECT 7
Your power chair has two main assemblies: the seat and the power base. See figure 5. Typically, the seating system
includes the armrests, the seatback, the seat base, and the controller. The power base assembly includes two drive wheels,
two anti-tip wheels, two rear caster wheels, a body shroud, a frame assembly (located under the body shroud), two
battery boxes, and the electrical connectors. See figures 5, 6, and 7.
