Chapter 3 Configuration
Web configuration provides a user-friendly graphical user interface (web pages) to manage your
WAP-1963A. An AP with an assigned IP address (e.g. http://192.168.0.1 ) will allow you via web browser
(e.g., MS Internet Explorer or Netscape) to monitor and configure.
1. Open your web browser.
2. Enter WAP-1963A IP address (default IP address is http://192.168.0.1 ) into the address field of the
web browser. Please also make sure your PC ’s IP address is in the same IP range of WAP-1963A.

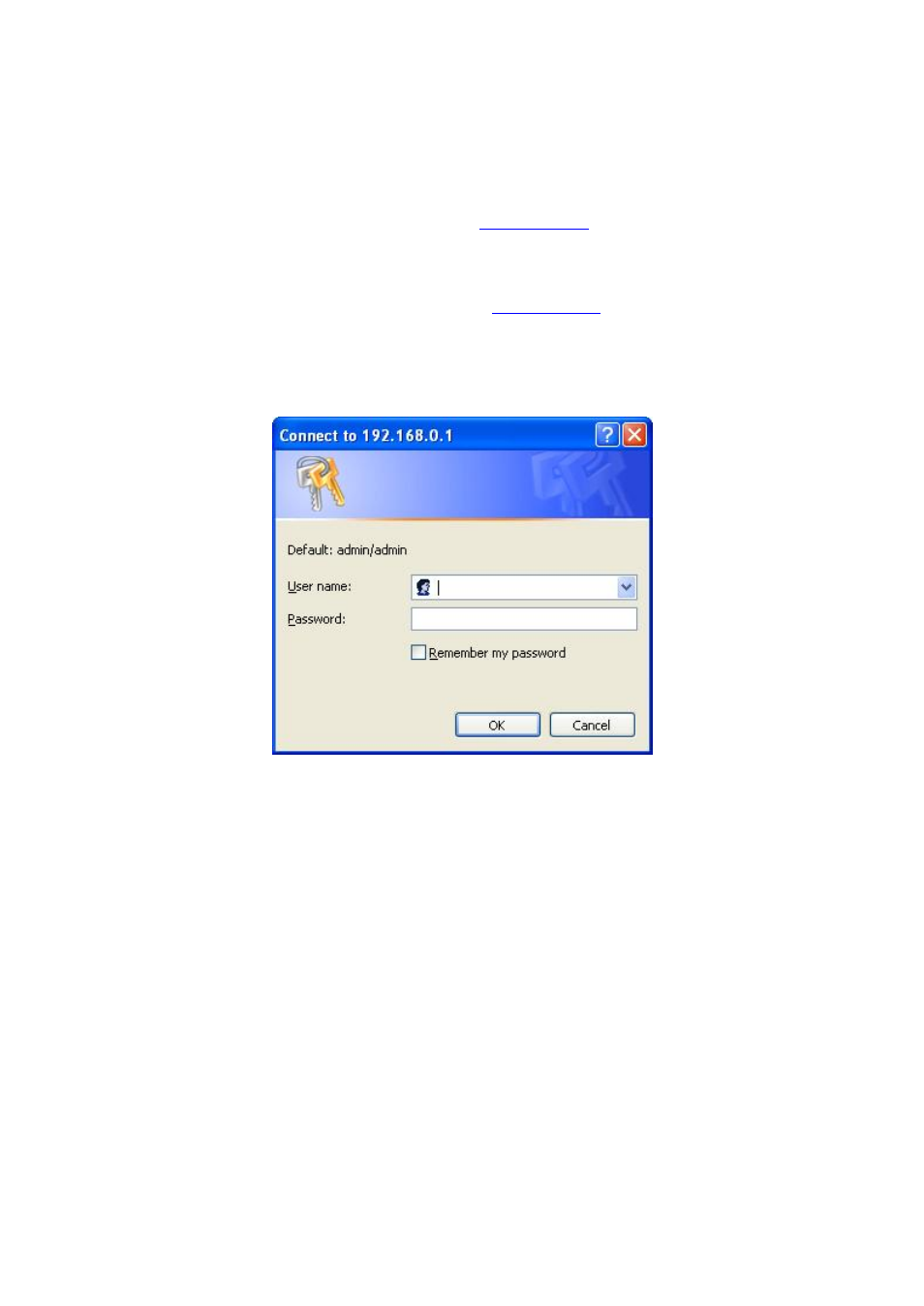

3. A User Name and Password dialog box will appear. Please enter your User Name and Password here.
Default User Name and Password is “admin”. Click “OK”.
4. Then you will see the WAP-1963A information in the web page as the picture in section 3.1.
