-7-
Notes:
• If the camera body is not installed correctly in
the camera fixing bracket, the fall prevention
cap cannot be inserted.
• The camera body cannot be moved after the
fall prevention cap is installed.
• When you need to remove the camera body,
first remove the fall prevention cap.
OPE
N
LOC
K
OPEN
LOCK

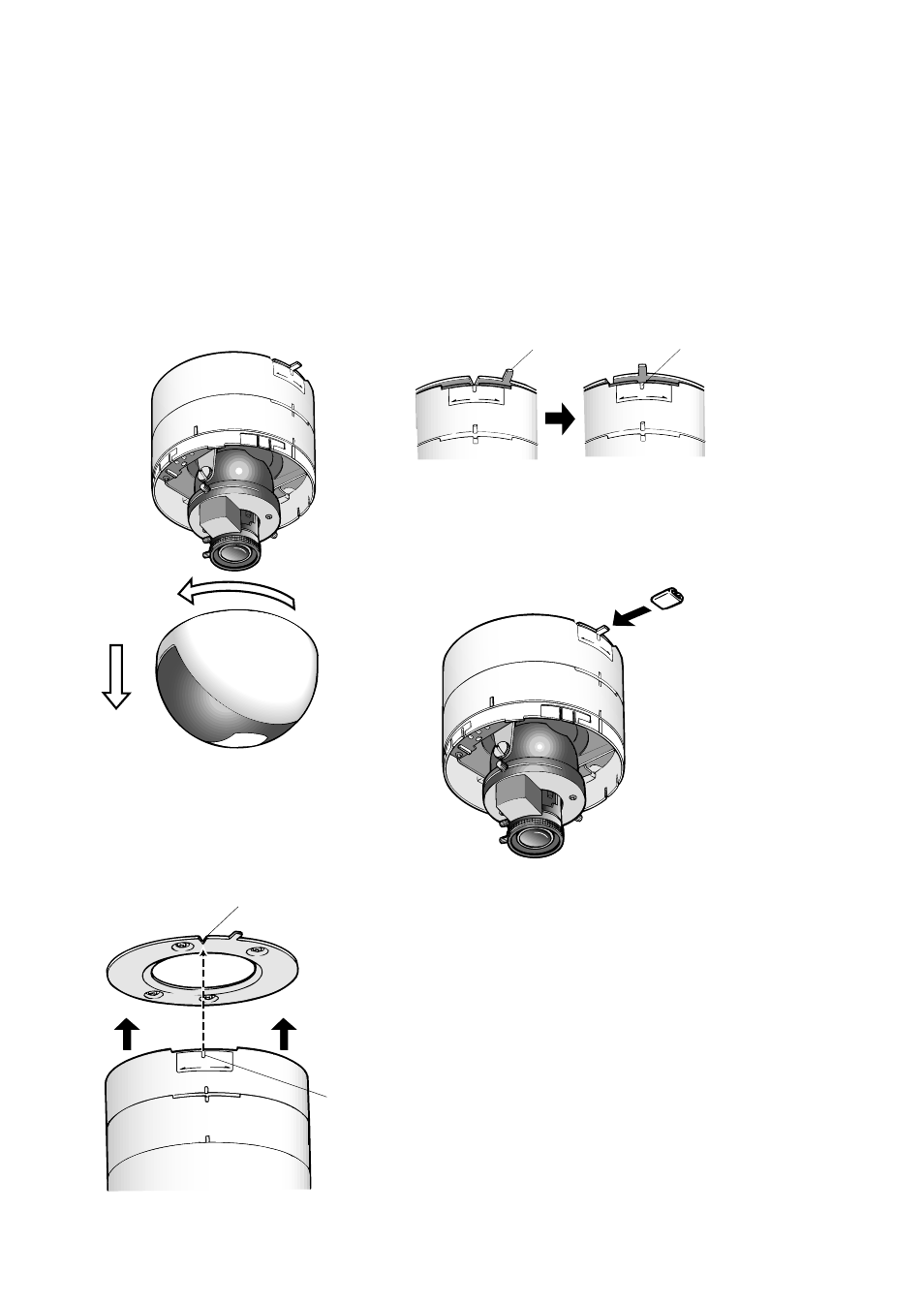

2-3. Remove the dome cover from the camera by
turning it counterclockwise.
2-4. Match the slit in the camera fixing bracket with
the lock line on the camera, and mount the
camera onto the camera fixing bracket.
2-5. Turn the camera in the LOCK direction until the
lock tab of the camera fixing bracket meets the
lock line of the camera.
OPEN
LOCK
OPEN
LOCK
2-6. Attach the fall prevention cap on the lock tab
of the camera fixing bracket as shown below to
prevent the camera from falling down.
OPEN
LOC
K
Slit
Lock
line
Lock tab
Lock line
