DiamondLink 3201 & 3241 Quick Start Guide
3

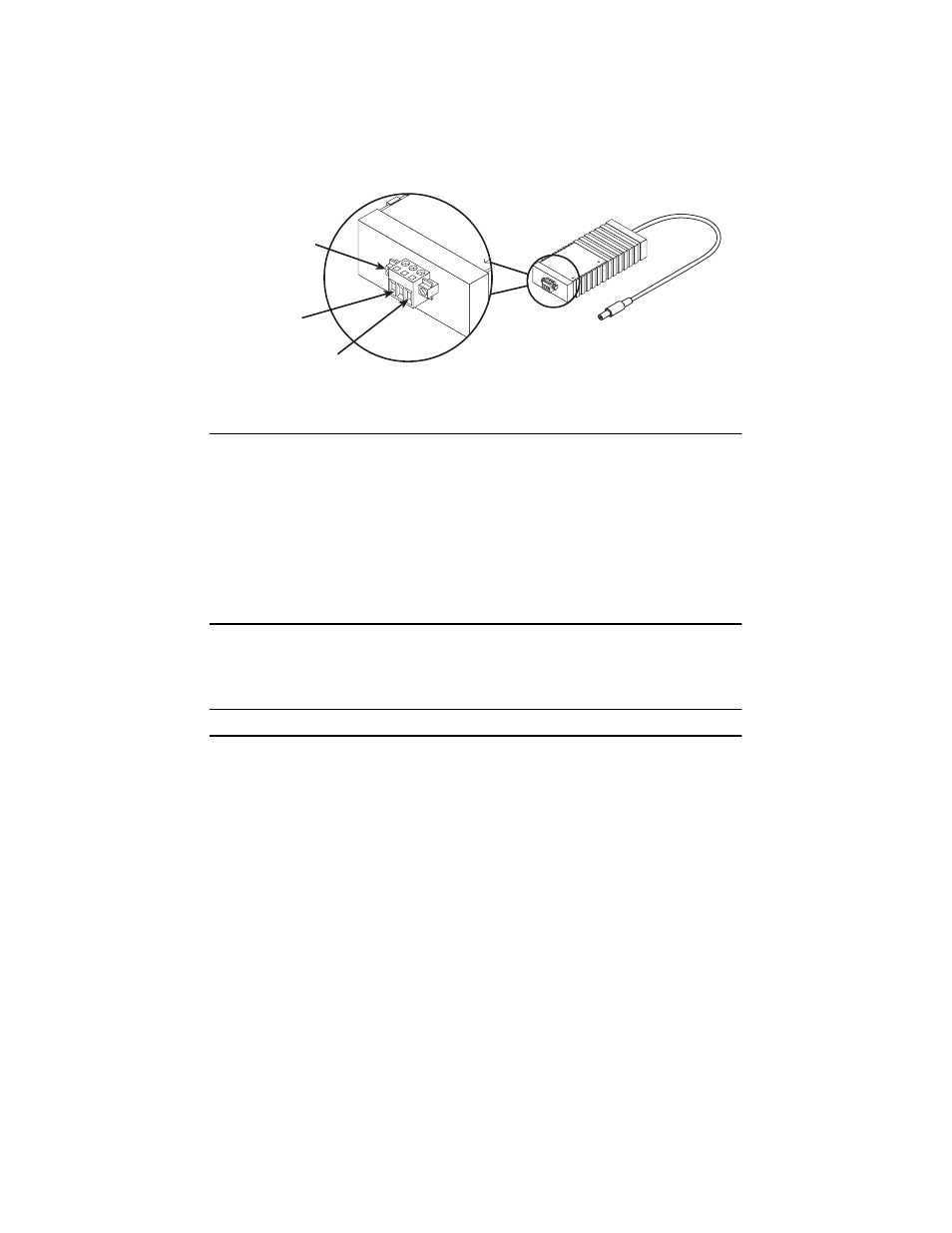

Figure 1.
48VDC power supply
1.2 Models with external DC power supply
1.
Strip insulation 1/4-inch from the electrical wires that will connect the DC power source to the 48VDC
power supply terminal block (see
).
2.
Connect the negative (-) terminal from the power source with to the negative (-) terminal on
the power supply.
3.
Connect the positive (+) terminal from the power source with to the positive (+) terminal on
the power supply
4.
Connect the 48VDC output barrel-type plug to the
Power
connector on the DiamondLink.
1.3 Power-up indication
The
Power
LED blinks as the DiamondLink is powering up. When the
Power
LED stops blinking and remains lit,
the DiamondLink is ready for you to configure.
2.0 Configure the IP address
The DiamondLink is shipped with a factory-configured IP address assigned to the
Ethernet
LAN port (green out-
line). The address is
192.168.200.10/24
. In most cases, you must change the address to be on the same subnet
as your PC, as described in the procedures below. If you are not sure which IP address to use for your installa-
tion, contact your network administrator.
Inp
ut: 3
6–6
0V
DC
, 0.1
3A
(SE
LV
)
( +
N
/C - )
48V
DC
Po
we
r S
upp
ly
Mo
dule
Ou
tpu
t: 5V
, 1A
( C
tr +)
Input: 36–60VDC, 0.13A
(SEL
V)
( + N/C - )
Power Su
le
Terminal
block
(-) Terminal
(+) Terminal
