Before Use
Rear
35
NORMAL/S-VIDEO OUT switch for AV1 only [
R13]
36
AV1 21-pin Scart socket [AV1 (TV)] [
R13,14]
37
Audio Monitor Output sockets [AUDIO OUT (AV3)]
[
R13,14,30]
38
Video Monitor Output socket [VIDEO OUT (AV3)]
[
R13,30]
39
S-Video Output socket (S-VIDEO OUT) [
R13,19]
40
AV2 21-pin Scart socket [AV2 (EXT)] [
R14]
The scart terminal is also called “Peritel”, “Euro
Connector” or “Euro AV”.
NORMAL (AV1/AV2)
S-VIDEO (AV1)
0
1
AUDIO OUTPUT
0
1
AUDIO OUTPUT
CH2 (R)
CH2 (R)
0
2
AUDIO INPUT
0
2
AUDIO INPUT
CH2 (R)
CH2 (R)
0
3
AUDIO OUTPUT
0
3
AUDIO OUTPUT
CH1 (L)
CH1 (L)
0
4
AUDIO GND
0
4
AUDIO GND
0
5
BLUE GND
0
5
No connection
0
6
AUDIO INPUT
0
6
AUDIO INPUT
CH1 (L)
CH1 (L)
0
7
BLUE
0
7
No connection
0
8
SWITCHING VOLTAGE
0
8
SWITCHING VOLTAGE
0
9
GREEN GND
0
9
No connection
10
Connection
10
Connection
(Only when NV-DV2000 is off)
11
GREEN
11
No connection
12
No connection
12
No connection
13
RED GND
13
C OUT GND
14
BLANKING GND
14
No connection
15
RED
15
C OUT
16
BLANKING
16
No connection
17
VIDEO OUTPUT GND 17
Y OUT GND
18
VIDEO INPUT GND
18
VIDEO INPUT GND
19
VIDEO OUTPUT
19
Y OUT
20
VIDEO INPUT
20
VIDEO INPUT
21
GND
21
GND
Caution: RGB reservation for only E/E operation when
connecting the Pay TV decoder.
1
3
5
7
9
11
13
15
17
19
21
2
4
6
8
10
12
14
16
18
20
Front (Explanation)
VCR-ON/OFF button (]
]
]
]
]
/I)
Press to switch the VCR from on to standby mode or
vice versa. In standby mode, the unit is still connected
to the mains.
Edit Terminal switch
By connecting a video movie camera or VCR with an
EDIT socket via an Edit cable, various kinds of editing
functions can be performed more quickly and
efficiently between two VCRs or between a VCR and
a video movie camera.
DV Input/Output socket [DV1/DV2(¥)]
To connect the DV cable to digital video equipment
with iEEE 1394-1995.
“¥” is the logo marked on products conforming with
the “i.LINK” specifications. For further details on the
DV terminal, refer to the Glossary of Terms on page
58.
Edit Mode switch
PLAYER:
When this VCR is used as the playback
VCR during editing operations.
RECORDER: When this VCR is used as the recording
VCR during editing operations.
≥
Normally set at this position.
PASSIVE:
When operating this VCR using another
VCR or an editing controller.
AV1 21-pin Scart socket [AV1 (TV)]
This 21-pin scart terminal carries input and output
signals for both picture and sound. TV sets equipped
with a similar socket can be connected here.
AV1(TV)
AV2(EXT)
MONITOR OUT
R AUDIO L
VIDEO S-VIDEO
DIGITAL STILL
PICTURE OUT
AC INT
SECTEURT
¥ DV1
AV3 IN
S-VIDEO OUT
NORMAL

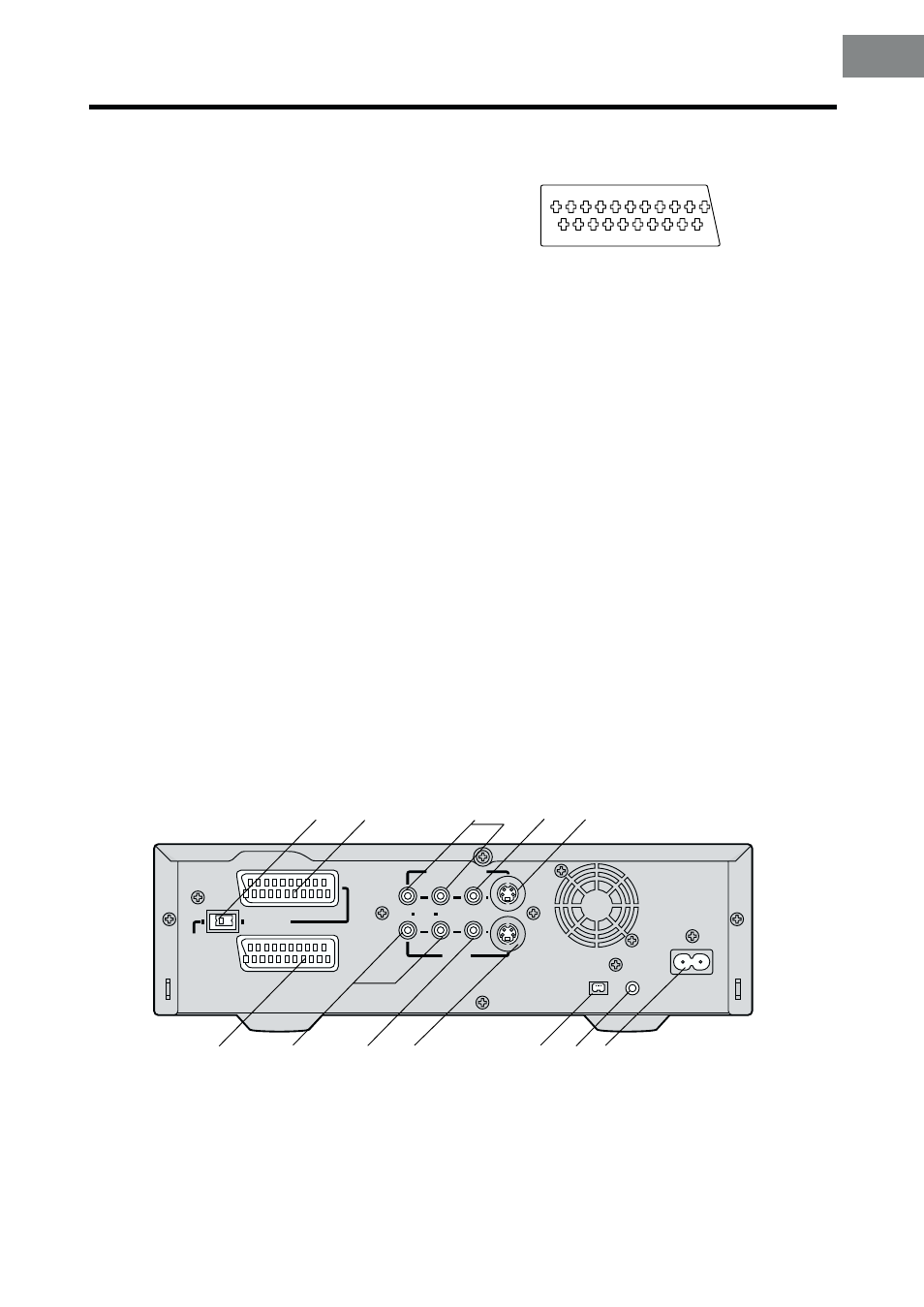

35
36
37
38
39
40
41
42
43
44
46
45
41
Audio Input sockets [AUDIO IN (AV3)]
42
Video Input socket [VIDEO IN (AV3)]
43
S-Video Input socket [S-VIDEO IN (AV3)]
44
DV Input/Output socket [DV1(¥)]
45
DIGITAL STILL PICTURE OUT socket [
R20]
46
AC Input socket (AC IN) [
R13]
