28 RECORDER button [ R43–51]
To operate this VCR as the recording unit for
editing.
29 INDEX/PHOTO buttons [
R18]
For the index/photoshot index search function.
30 STEREO SELECT button [ R17,41,42,45,51]
To select the audio track (STEREO1 audio and/or
STEREO2 audio) on a tape which was recorded in
the 12bit audio mode. During playback, each time
the button is pressed, the sound changes as
follows:
≥ The audio track cannot be selected during the
playback of a tape recorded in the 16bit audio
mode.
≥ When INPUT SELECT is set to DV1 or DV2, the
audio track can be selected by STEREO
SELECT at any time: it does not have to be
during playback.
31 VCR1/2/3 switch
Set the switch on the side panel of the editing
controller to the appropriate position when more
than two or three Panasonic VCRs is being used.
VCR1:
Select this position on both the
VCR and editing controller for
normal use with one VCR.
VCR2: Select this position when using two
Panasonic VCRs.
VCR3: Select this position when using
three Panasonic VCRs.
!" Child Lock buttons [
R12]
To set the child lock function when you keep
pressing OK and MARK IN for more than five
seconds.
17 Infra-red Transmitter window
18 OK button
To start Manual editing and to store the selection
on the SET UP or EDIT MENU screen.
19 VIDEO INSERT button [
R39,41]
For the Video Insert function and the AV Insert
function.
20 AUDIO INSERT button [
R39,41]
For the Audio Insert function and the AV Insert
function.
21 AUDIO DUB button [
R39,41,42]
For the Audio Dubbing function or the Audio Mixing
function.
22 JOG/SHUTTLE button and lamp [
R15,39–51]
To switch to the Jog/Shuttle mode. When the button
is pressed, it lights and the VCR enters the Jog/
Shuttle mode.
In the stop mode: Still picture (Jog/Shuttle mode).
During playback:
Still picture (Jog/Shuttle mode).
23 INPUT SELECT button [ R27–35]
To select the A1, A2, A3, A4 or DV IN (DV1 or DV2)
external recording source.
24 COUNTER RESET button [
R18]
To reset the tape counter (elapsed time) to
“0:00.00”.
≥
The tape counter is automatically reset to
“0:00.00”. when a video cassette is inserted.
≥ It is not possible to reset the Time code to
“0h00m00s00f ” using COUNTER RESET.
25 COUNTER ZERO STOP button [
R18]
To use the zero stop function at the tape counter
display.
26 PLAYER button [
R43–51]
To operate this VCR as the playback unit for
editing.
27 SEARCH SELECT button [
R18]
To search for a recorded programme using the
index/photoshot index search.
STEREO1 STEREO2 STEREO1
STEREO2
(MIX)

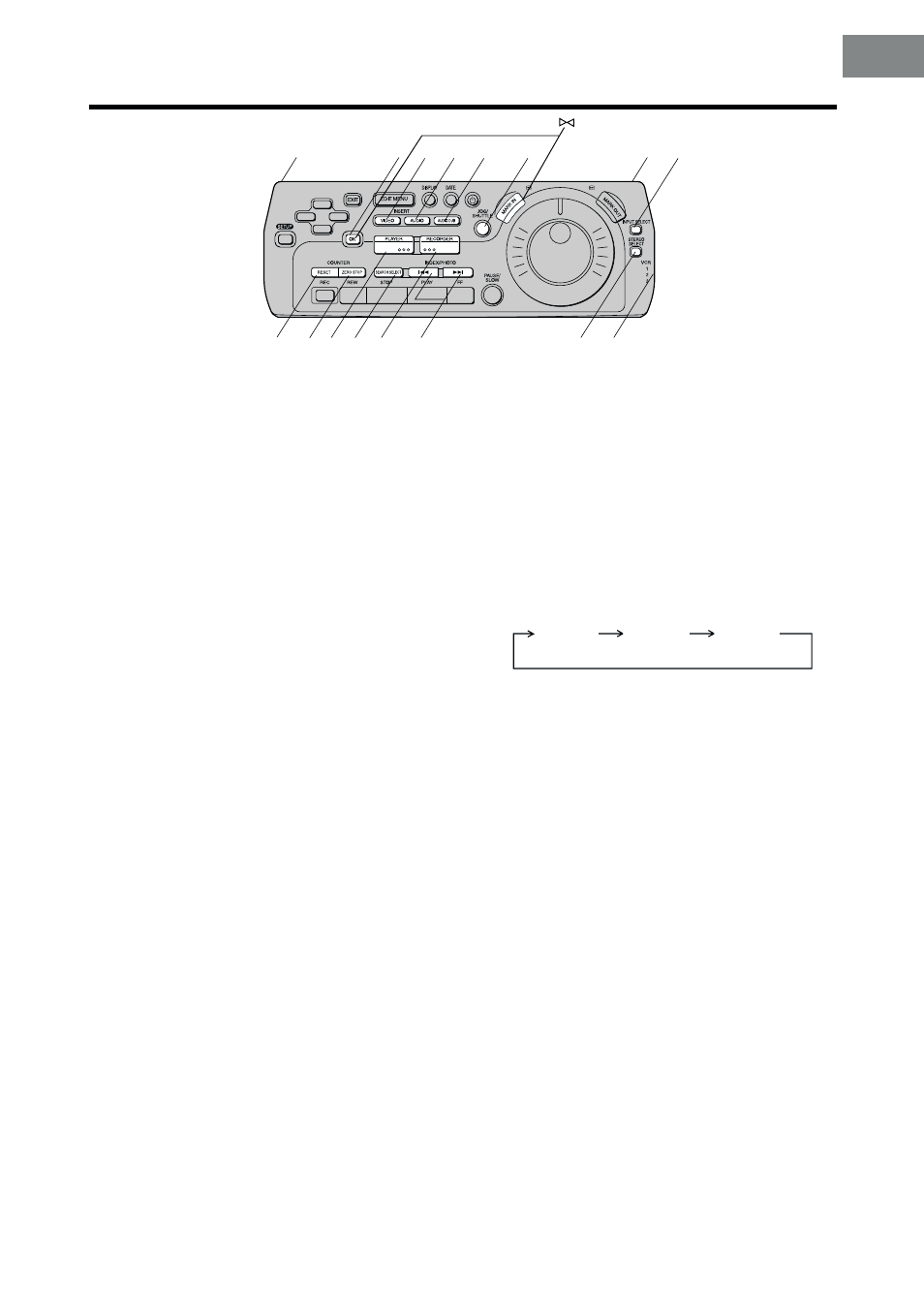

17 18 19 20 21 22 23 17
24 25 26 27 28 29 30 31
