Paxar 9854 - Manual (Page 31)

05/08 Rev. AB OPERATOR’S HANDBOOK Setup
9844/9854
2-3
9854 Printer with Internal Liner Takeup Reel (Rewinder)

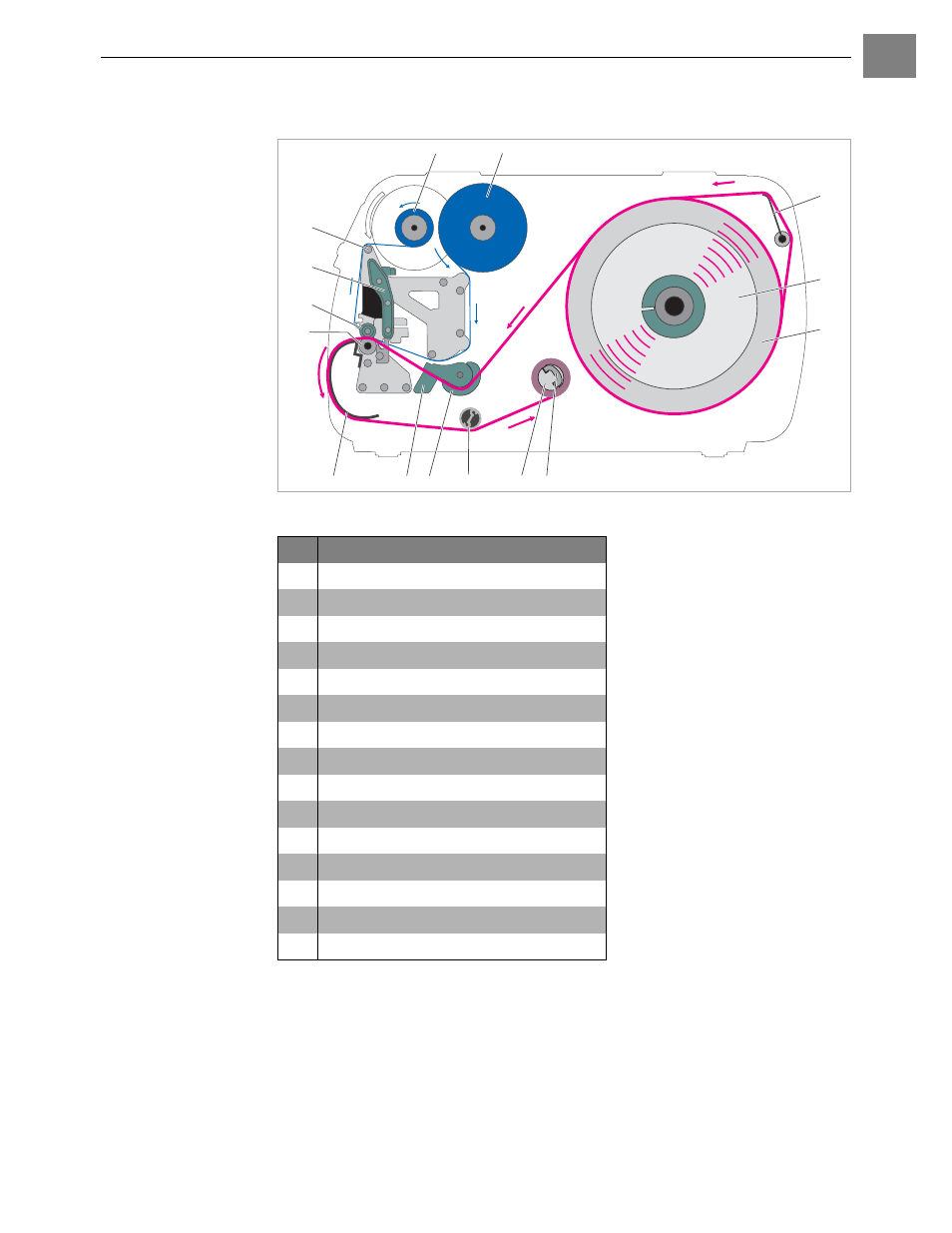

Fig. 2: Material and ribbon path through printer with internal liner takeup.
No. Description
1 Ribbon rewinding reel
2 Ribbon unwinding reel
3 Material tension roller
4 Guide disk
5 Material roll
6 Clip
7 Internal liner takeup reel
8 Deflection roller
9 Material guide
10 Light barrier fitting
11 Deflection plate
12 Print roller
13 Adjusting wheel for printhead support
14 Pressure lever
15 Ribbon deflection roller
Tab. 2: Operating parts of the printer with internal liner takeup.
Bild_3/Z0194.cdr
1 2 3 4
5
6 0
3
4
5
6 8 9 10 11
1 2
12
13
14
15
7
