Philips Semiconductors Product specification
SA5223 Wide dynamic range AGC transimpedance amplifier(150MHz)
2 1995 Oct 24 853-1816 15939
DESCRIPTION
The SA5223 is a wide-band, low-noise transimpedance amplifier
with differential outputs, incorporating AGC and optimized for signal
recovery in wide-dynamic-range fiber optic receivers, such as
SONET. The part is also suited for many other RF and fiber optic
applications as a general purpose gain block.
The SA5223 is the first AGC amplifier to incorporate internal AGC
loop hold capacitor, therefore, no external components are required.
The internal AGC loop enables the SA5223 to effortlessly handle
bursty data over a range of nA to mA of signal current, positive
direction (sinking) only.
FEATURES
•
Extremely low noise: 1.17pA
ń Hz
Ǹ
•
Single 5V supply
•
Low supply current: 22mA
•
Large bandwidth: 150MHz
•
Differential outputs
•
Internal hold capacitor
•
Low input/output impedances
•
High power-supply-rejection ratio: 55dB
•
Tight transresistance control
•
High input overload: 4mA
•
2000V HBM ESD protection

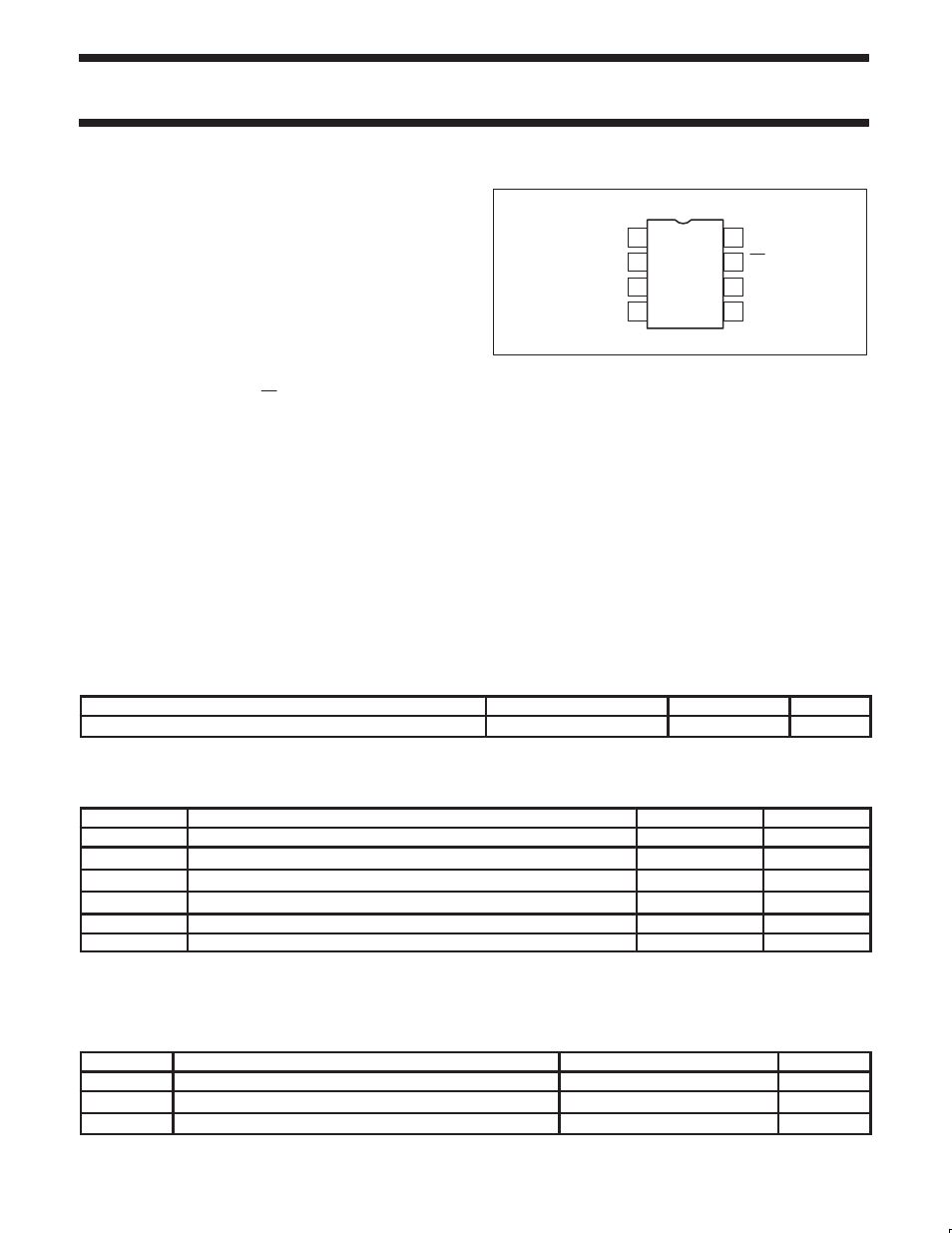

PIN DESCRIPTION
D Package
IN
GND 2
OUT
V CC 1
2
3
4
8
7
6
5
OUT
GND 4
GND 3
GND 1
SD00369
APPLICATIONS
•
OC3 SONET preamp (see AN1431 for detailed analysis
•
Current-to-voltage converters
•
Wide-band gain block
•
Medical and scientific instrumentation
•
Sensor preamplifiers
•
Single-ended to differential conversion
•
Low noise RF amplifiers
•
RF signal processing
ORDERING INFORMATION
DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #
8-Pin Plastic Small Outline -40 to +85
°
C SA5223D SOT96-1
For unpackaged die please contact factory.
ABSOLUTE MAXIMUM RATINGS
SYMBOL PARAMETER RATING UNITS
V
CC
Power supply voltage 6 V
T
A
Ambient temperature range -40 to +85
°
C
T
J
Junction temperature range -55 to +150
°
C
T
STG
Storage temperature range -65 to +150
°
C
P
D
Power dissipation T
A
= 25 o C (still air) 1 0.78 W
I
INMAX
Maximum input current 5 mA
NOTE:
1. Maximum power dissipation is determined by the operating ambient temperature and the thermal resistance
θ
JA
= 158 o C/W. Derate
6.2mW/
°
C above 25
°
C.
RECOMMENDED OPERATING CONDITIONS
SYMBOL PARAMETER RATING UNITS
V
CC
Power supply voltage 4.5 to 5.5 V
T
A
Ambient temperature range: SA grade -40 to +85
°
C
T
J
Junction temperature range: SA grade -40 to +105
°
C
