Introduction

112

Model 2160 Series User Manual

C • Port pin-outs

Introduction

This section provides pin-out information for the ports of the Model 2160.

Console port

Configuration settings: 9600 bps, 8 bits, no parity, 1 stop bit, no flow control

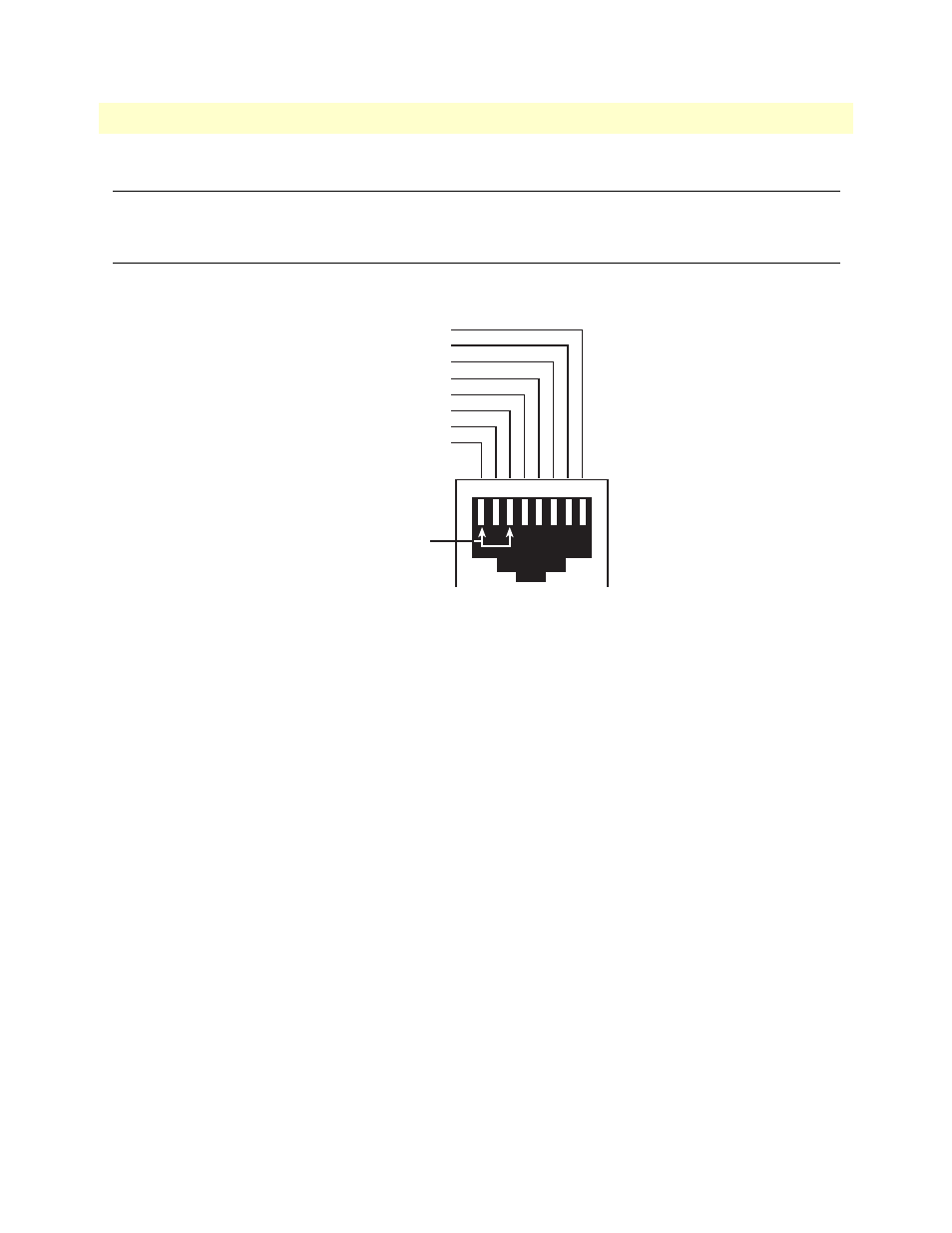

Figure 68. EIA-561 (RJ-45 8-pin) port

Note

N/C means no internal electrical connection.

1 2 3 4 5 6 7 8

8–RTS (N/C)

7–CTS (N/C)

6–TD

5–RD

4–SG

3–DTR

2–CD (N/C)

1–DSR

Pins 1 & 3 are

connected together
