Chapter 3 Configuring the Wireless AP
Web configuration provides a user-friendly graphical user interface (web pages) to manage your
WAP-4030A. An AP with an assigned IP address (e.g. http://192.168.0.1 ) will allow you to monitor and
configure (via web browser e.g., MS Internet Explorer or Netscape).
1. Open your web browser.
2. Enter WAP-4030A IP address (default IP address is http://192.168.0.1 ) into the address field of the
web browser. Please also make sure your PC’s IP address is in the same IP range with WAP-4030A.

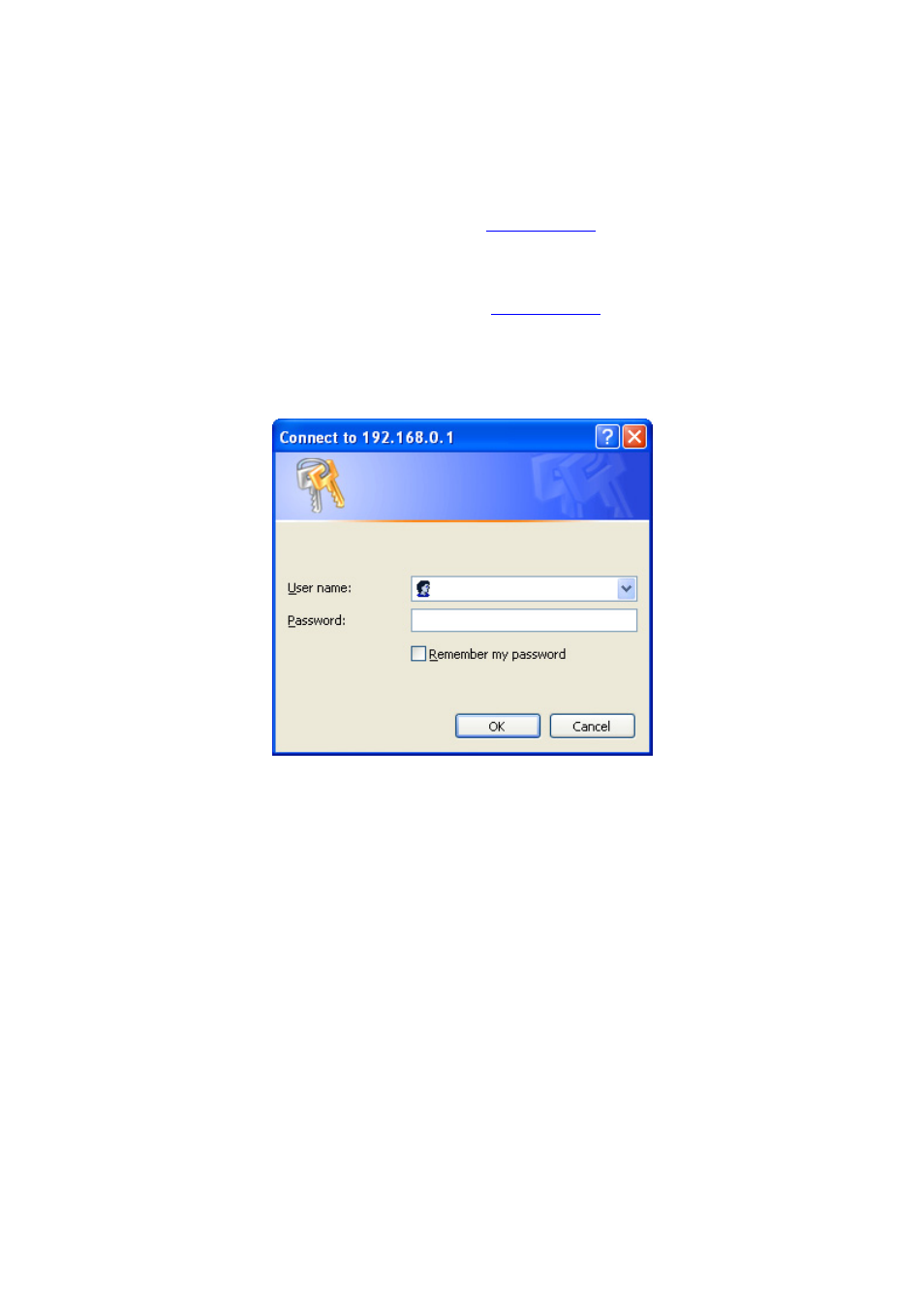

3. A User name and Password dialog box will appear. Please enter your User name and Password here.
Default User name and Password is “admin”. Click “OK”.
4. Then you will see the WAP-4030A configuration screen in the web page as the picture in section 3.1.
3.1 Operating Mode
In this screen, you can see all the operating modes of WAP-4030A. In Default, WAP-4030A is work
with Access Point mode. Please select the operating mode you want and press “Setup” button. Then
you can configure WAP-4030A to the operating mode. If the mode configuration had be done in before,
you can select the operating mode and press “Apply” button without configure again.
9
