Planet Technology WAP-4030A - Manual (Page 11)

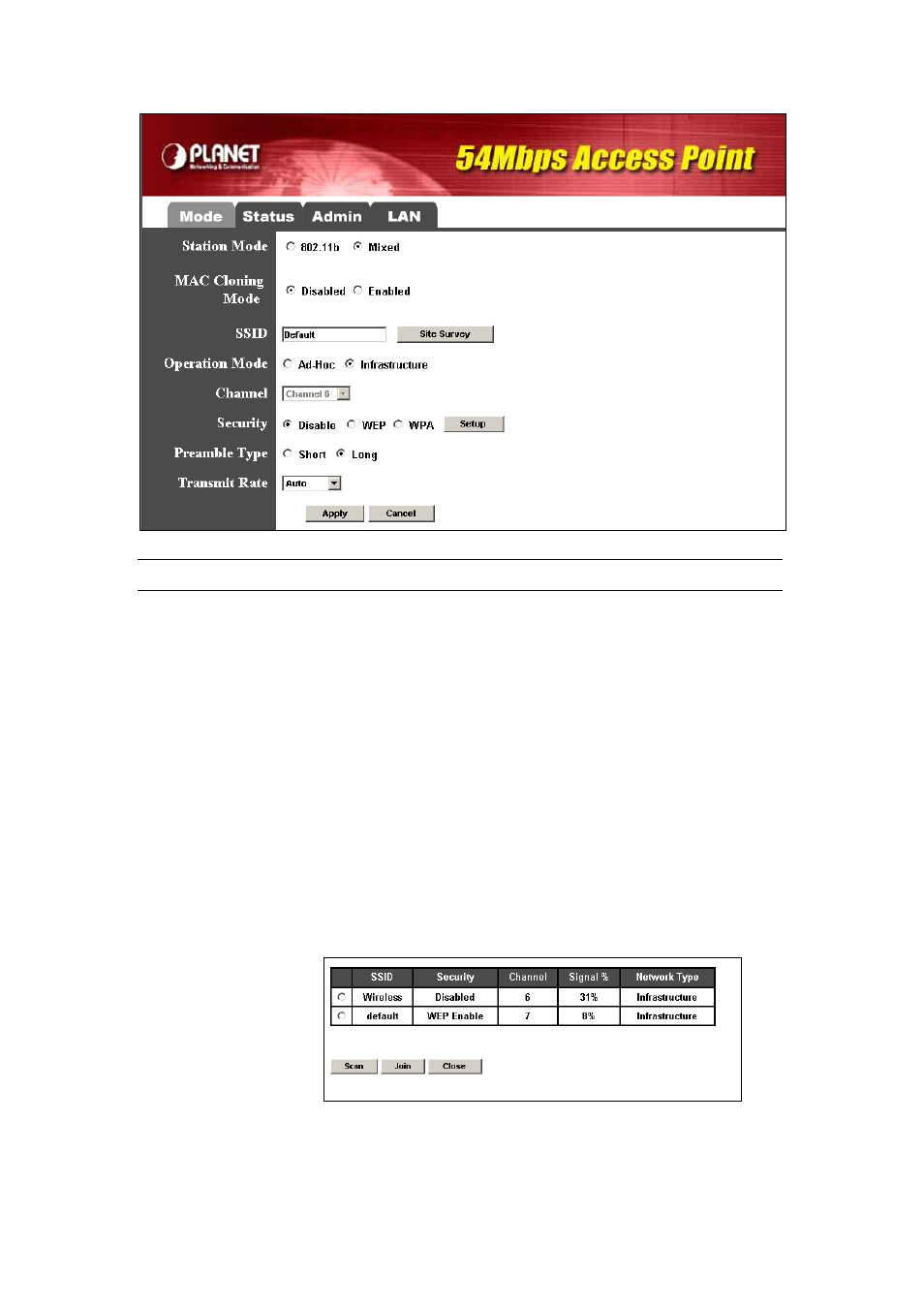

Parameter
Description
Station Mode 802.11b: It allows to select the transmit rate up to 11Mbps.
Mixed: It allows to select the transmit rate up to 54Mbps.
MAC Cloning Mode Disabled: It will use it’s own MAC address to access the wireless LAN.
Enabled: It will use PC’s MAC address to access the wireless LAN.
SSID The SSID (up to 32 printable ASCII characters) is the unique name
identified in a WLAN. The ID prevents the unintentional merging of two
co-located WLANs. Please make sure that the SSID of all stations in the
same WLAN network are the same. The default SSID is “default”.
Site Survey Click “Site Survey” button, then a “Wireless Site Survey Table” will pop up
like below. It will list all the available access points near by. You can select
one access point in the table and it will join wireless LAN through this
access point.
Operation Mode AD-Hoc: It can let your network device join a wireless LAN with
peer-to-peer communication.
11
