Quickdraw, Steam heater – PVI Industries Storage and Semi-instantaneous Steam Heaters PV500-25 User Manual
Page 4
QUICKDRAW
®
Steam Heater
4

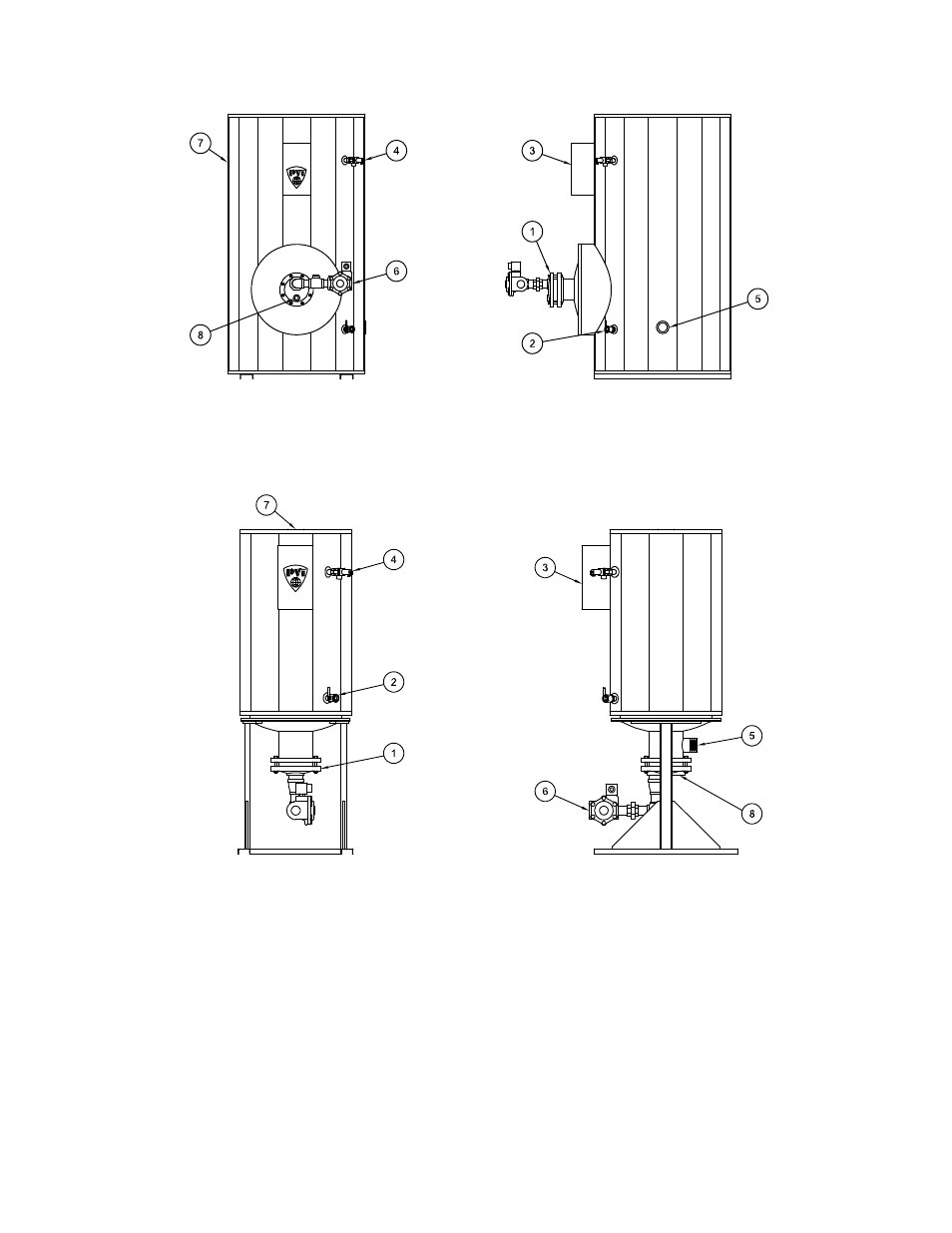

Typical QuickDraw
®
Storage Construction
Typical QuickDraw
®
Instantaneous Construction
1. U-tube Heat Exchanger
5. Potable Water Inlet
2. Tank Drain
6. Steam Inlet
3. Control Enclosure
7. Potable Water Outlet
4. Relief
Valve
(AGA optional)
8. Condensate Outlet
Note: Components, controls and connection locations may vary.
