Installing the
Bottom Rail
and
Preparing the
Screen Housing Assembly

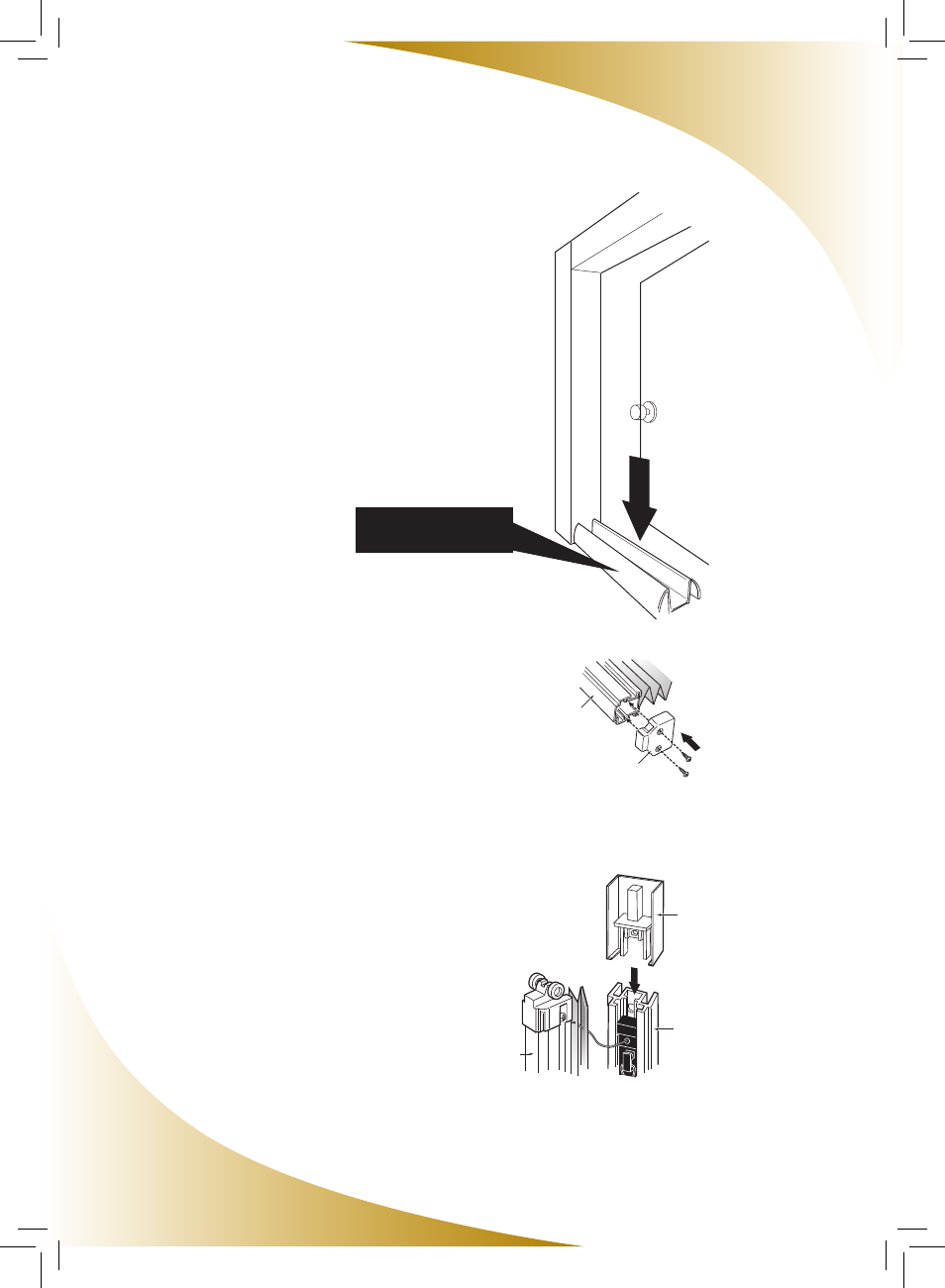

Remove the backing from the
double sided tape on the bottom
of the Bottom Rail. Attach the
Bottom Rail onto the door sill,
placing the front edge of the
Bottom Rail even with the face
or front edge of the door frame
on both sides of the opening.
Installing the Bottom Rail
Preparing the Screen Housing Assembly
1. Before installing the Screen
Housing Assembly,
rotate the Mounting Bracket so
that the Tension Wires are
no longer wound around it.
Failing to do so prior to
installing the Mounting Bracket
will restrict the motion of the
Tension Wires and prevent the
screen from operating.
2. Attach the Sliding Bar
Bottom Cap to the bottom of
the Sliding Bar using the two
screws provided.
3. Insert the Corner Cover onto
the top of the Mounting Bracket.
8
Bottom Rail
Corner
Cover
Mounting
Bracket
Sliding
Bar
Sliding Bar
Sliding Bar
Bottom Cap
