Phantom Tech Viewpoint VI0508 - Manual (Page 10)

Installing the
Top Rail
and
Catch Frame

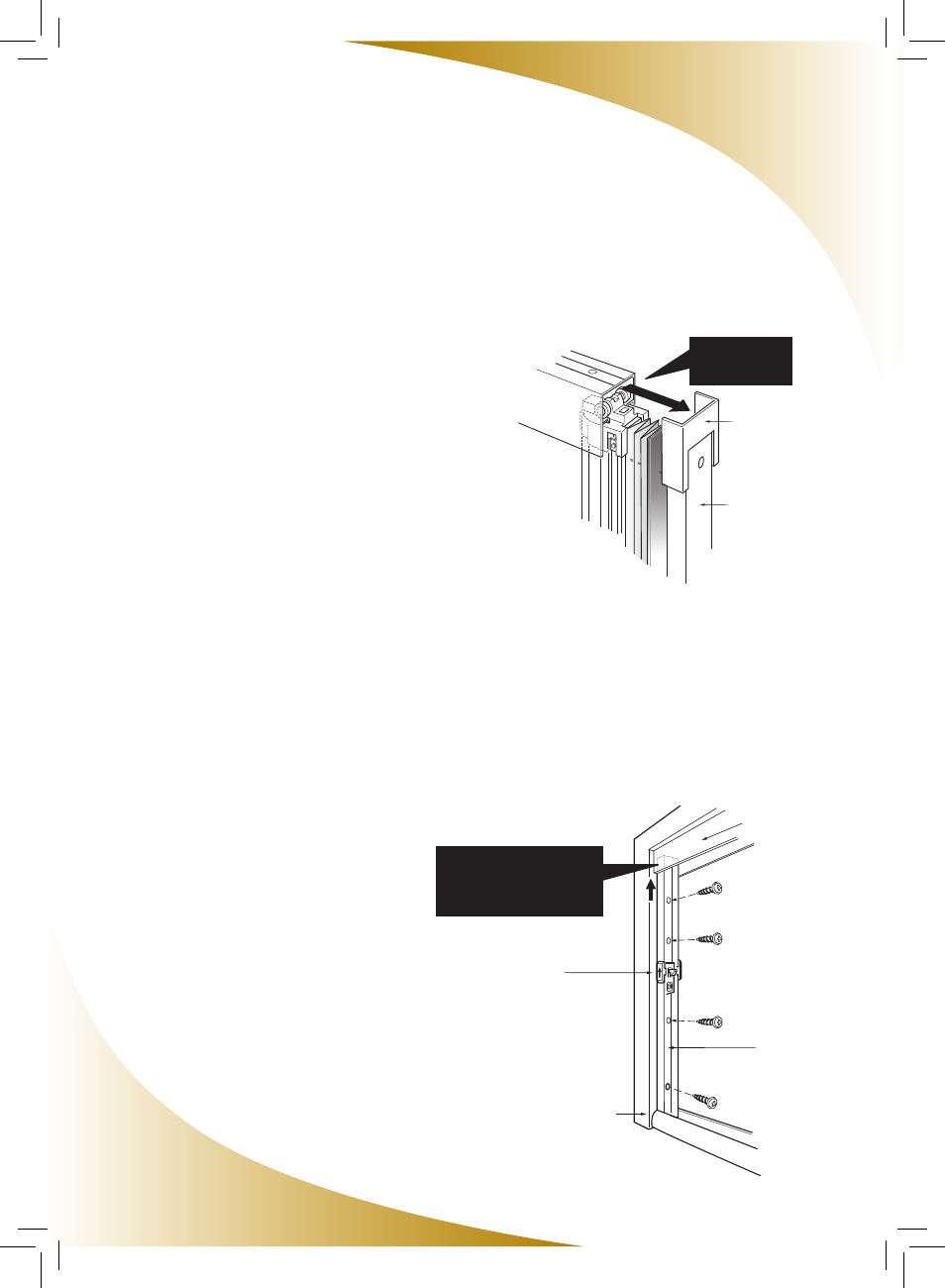

Installing the Top Rail
1. Remove the backing of the adhesive tape on the
top of the Top Rail.
2. Insert the Rollers at the top of the Sliding Bar
into the Top Rail, then push the Top Rail into the
Corner Cover on the top of the
Mounting Bracket.
3. Position the Top Rail along the top of the door
frame at a 90º angle to the side
mounting surfaces.
4. Making sure that the Top Rail is tight against the
side of the door frame opposite the
Mounting Bracket, press firmly in place,
allowing the adhesive tape to temporarily hold
it in place.
5. Using the 5/8” (16mm) screws provided, secure
the Top Rail to the door frame.
Installing the Catch Frame
1. Insert the bottom of the Catch Frame inside the
Bottom Rail and the top of the Catch frame into the
Top Rail. Position it against the door frame on
the opposite side of the Screen Housing Assembly.
2. Lift the Catch Frame upward into the Top Rail
as far as it will go, and secure to the door frame
using the provided wood screws.
Top Rail
Catch Frame
Latch
Door Frame
Push up the top of the
Catch Frame all the way
into the Top Rail
10
Push in
to the
Corner C
over
Corner Cover
Mounting Bracket
Insert Rollers
as shown
