Connecting Personal Computers and Video Equipment
Connections with Component Signals
When the Video Equipment Has a YCbCr Connector or YPbPr Connector
• The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “Compo-
nent” using the menu sequence of [Setup] → [Input Format] → [Computer].
See “Input Format” on Page E-49.
• When projecting the YCbCr signal or YPbPr signal, if the color of the overall image strongly leans toward being greenish or
another color, change the setting under the menu of [Color]
→ [Color Space].
See “Color Space” on Page E-44.

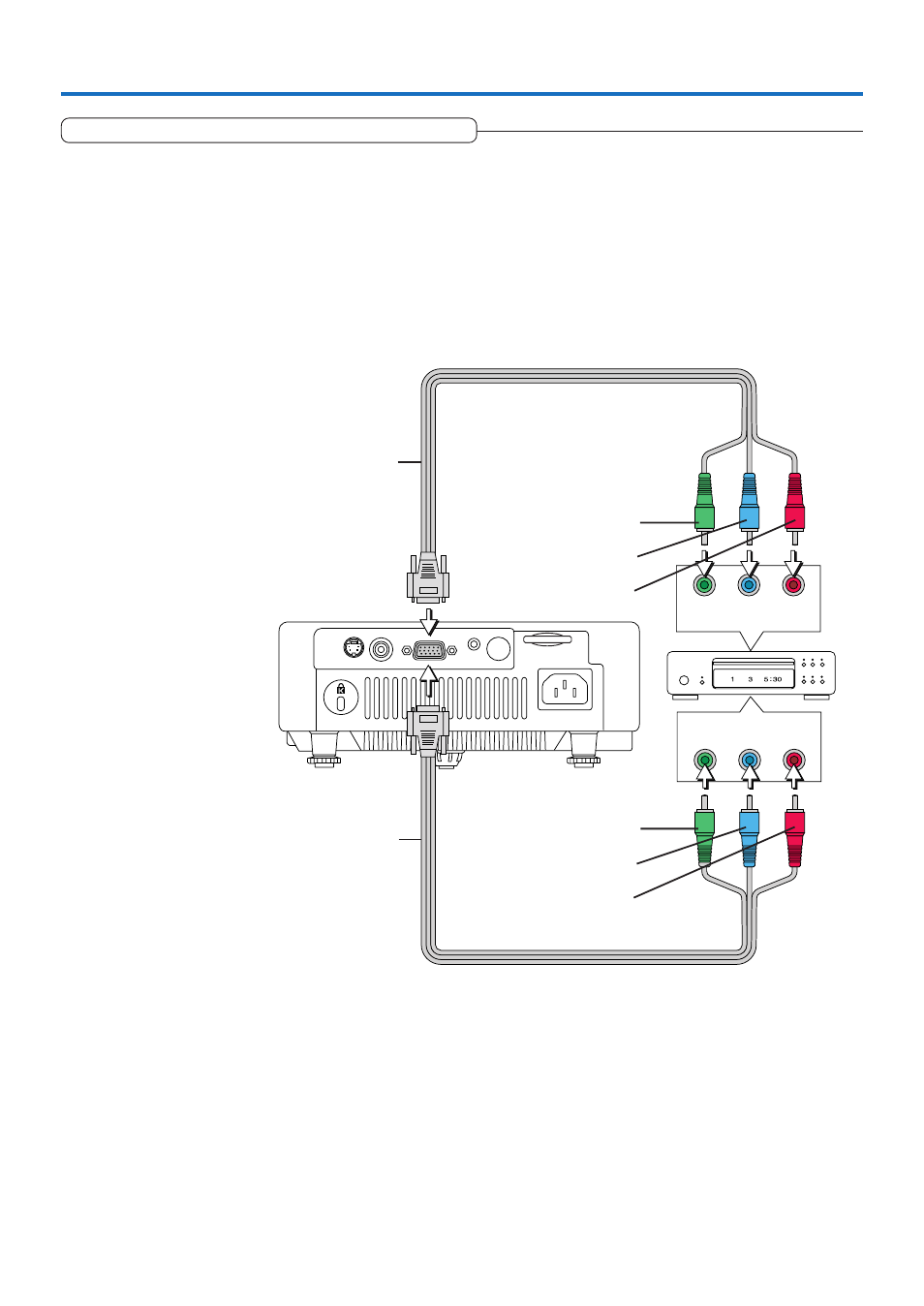

Component cable (Commercially available)
(Mini D-sub 15-pin to RCA
ן3)
Component cable (Commercially available)
(Mini D-sub 15-pin to RCA
ן3)
Green
Blue
Red
Green
Blue
Red
