Names of the Remote Control Parts
Precautions
Handling of the Remote Control
* Do not drop the remote control or handle it inappropriately.
* Do not expose the remote control to water or other liquids. Should the remote control become wet, wipe it dry
immediately.
* Try to avoid use in hot and/or humid locations.
* Please keep button battery out of the reach of children. If a battery is swallowed, promptly obtain the medical care of
a doctor.
* Remove the battery from the remote control when it is not going to be used for a long period.
* Some operations (such as menu operations) are available only through the use of the remote control and attention
should be given to its careful handling.
COMPUTER
VIDEO
FREEZE MUTE ECO
QUICK
COLOR ADJ
VOL KSTN ZOOM
CANCEL QUICK
MENU
ENTER
POWER/
STANDBY
WIRELESS
VIEWER VOL KSTN ZOOM
ASPECT
AUTO VOL KSTN ZOOM
1
2 10
11
12
13
3
4
5
6
7
8
9
14
15
14
15

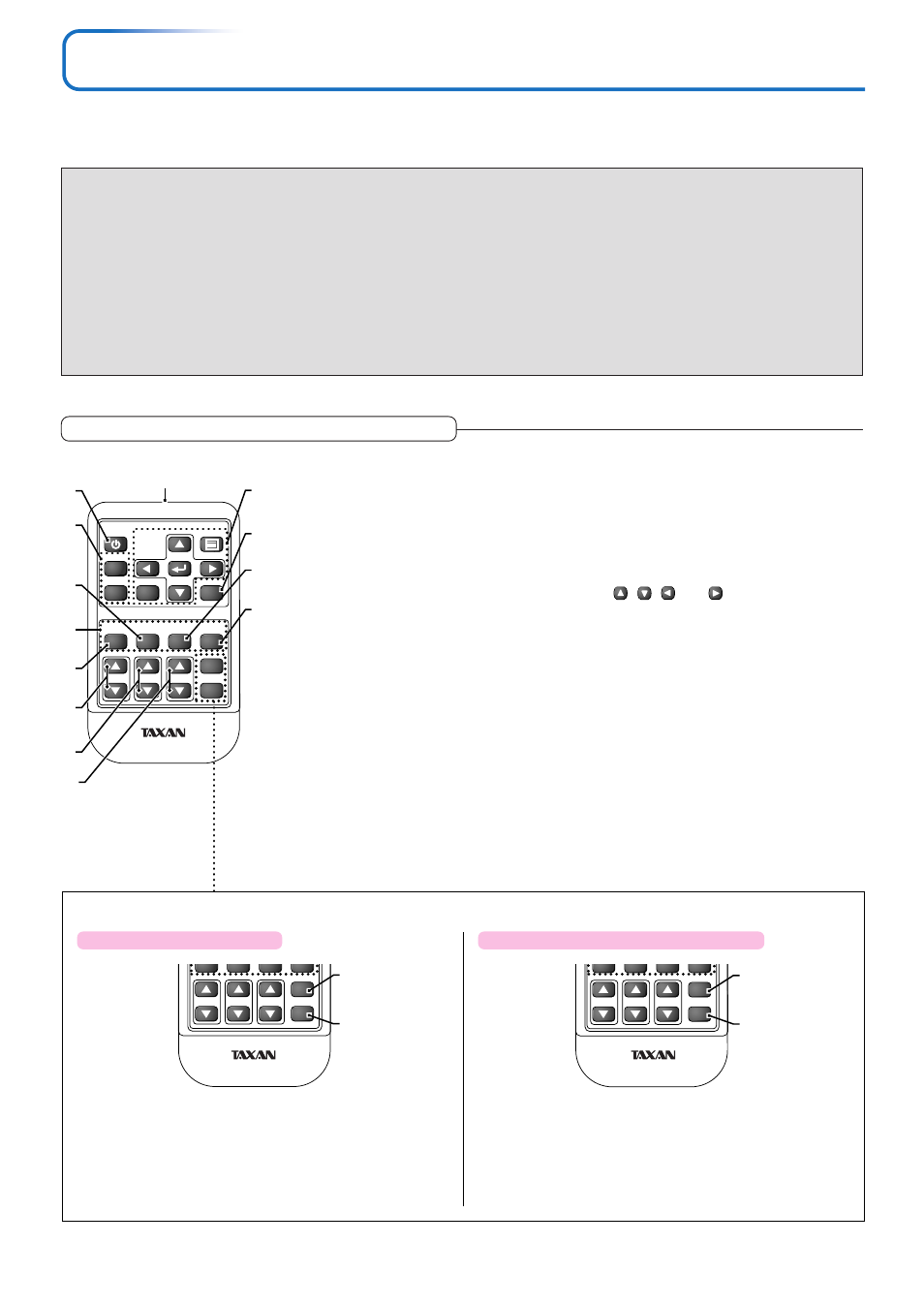

1. Infrared transmitter [E-13]
2. POWER/STANDBY button [E-21, 23]
This button is used to switch ON the power
and set the unit to the STANDBY mode.
3. Buttons used for input selection [E-26]
COMPUTER button and VIDEO button
(Video / S-Video)
4. MUTE button [E-28]
(Temporarily cancels the video and audio)
5. Input buttons [E-31]
(Used for the security lock.)
6. FREEZE button [E-28]
(Freezes moving pictures)
7. VOL button [E-29]
(Volume adjustment)
14. ASPECT button [E-27]
(Selects the vertical and horizontal ratio of the screen)
15. AUTO button [E-20]
(Automatic adjustment of the RGB moving image)
8. KSTN button [E-29]
(Keystone correction adjustment)
9. ZOOM button [E-30]
(Digital zoom adjustment)
10. SELECT Buttons [E-34]
The
, , and buttons are the
select (
̆, ̄, ̇ and ̈) buttons.
11. QUICK button [E-33]
(Displays a simplified menu)
12. ECO button [E-28]
(Selection of lamp mode)
13. QUICK COLOR ADJ button [E-28]
The function of the buttons below will differ depending on the model.
14. WIRELESS button
See “Image Viewer / Wireless Network” section.
15. VIEWER button
See “Image Viewer / Wireless Network” section.
Applicable Model: KG-PS100S/KG-PS120X Applicable Model: KG-PS125X
Two types of remote control are available for this projector, and both types are described.
See the description of the remote control (and the drawing) for the type supplied with the projector.
Names of the Remote Control Parts
