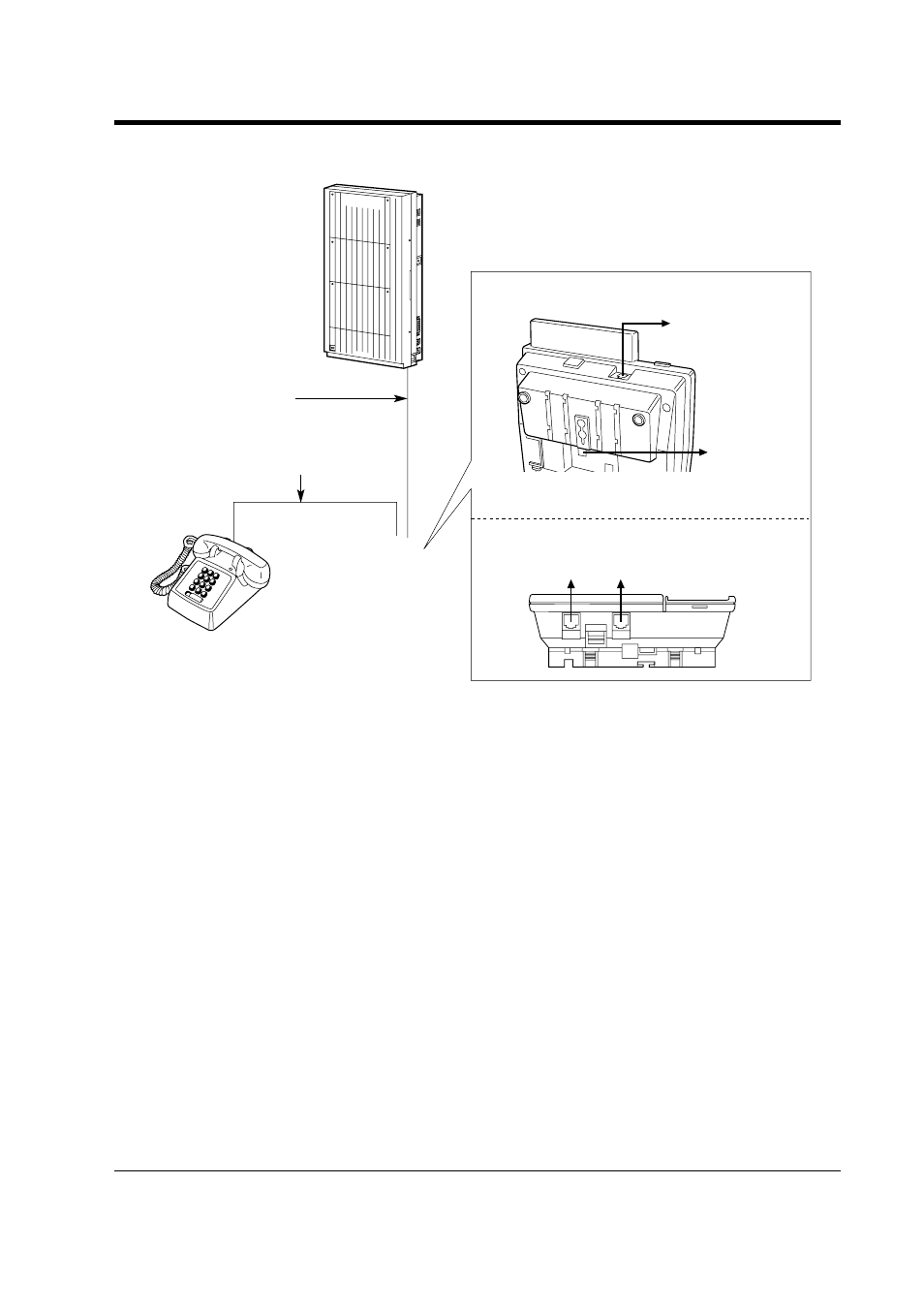

1.4 Adding Another Telephone in Parallel
Overview
15
Method 2
Method 3
To single line
telephone
To system 2-conductor wiring cord
Connect pins “ T ” and “ R. ”
Digital Proprietary
Telephone Single Line Telephone
To system To single line telephone
TO TEL TO EMSS
LCD ADJ PUSH
4-conductor wiring cord
Connect pins
“ T, ” “ R, ” “ D1 ” and “ D2. ”
D1232
DIGITAL SUPER HY BRID SYSTEM
Panason ic Panasonic
