Adjustment
11 - 35
3

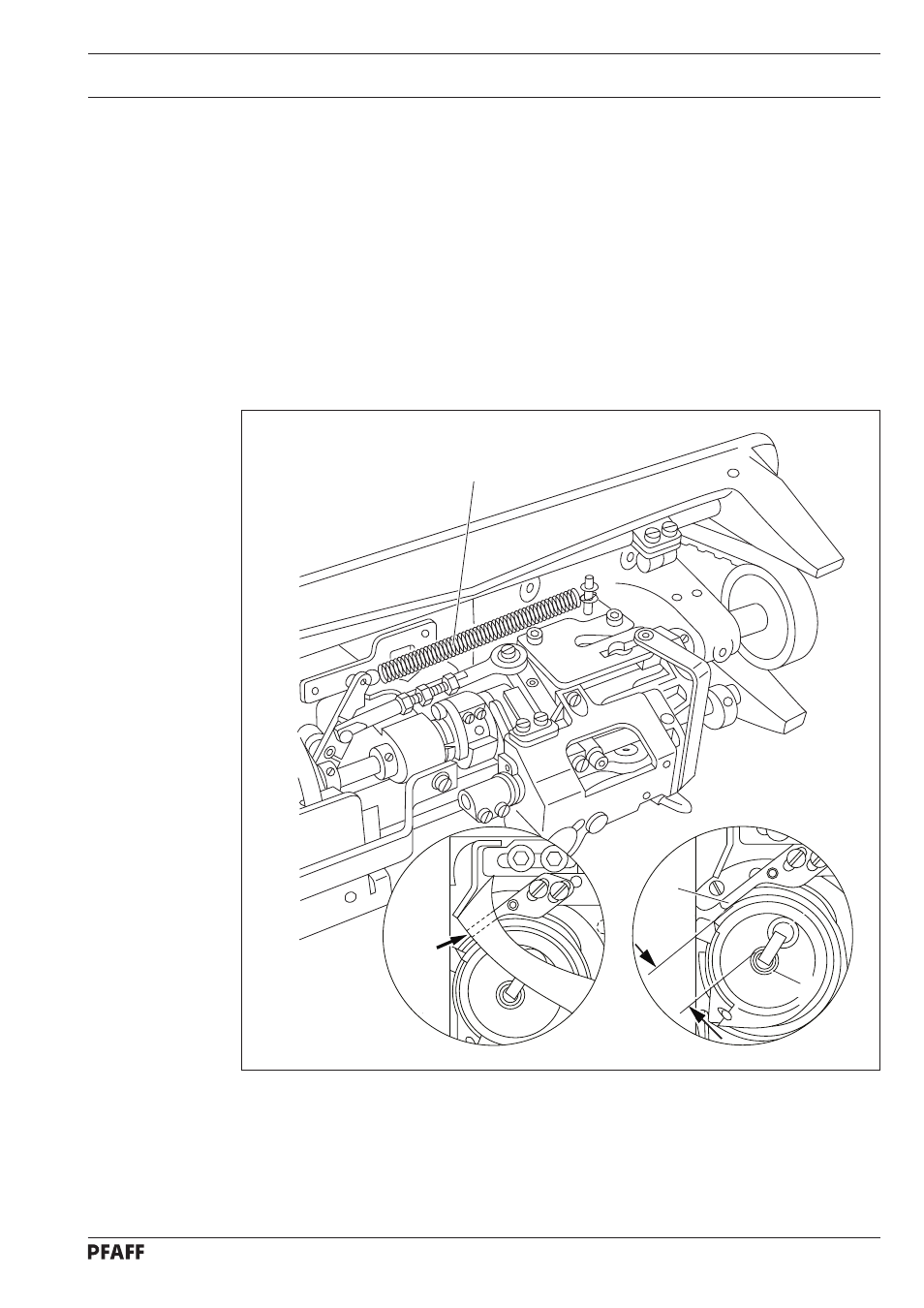

Fig. 11 - 29 A
5
12 mm
7
● Bring the machine to needle rise position, activate the engaging lever and bring the
thread catcher to its front point of reversal by turning the handwheel.
● Align clamp spring 5 (screws 6) in the elongated hole in accordance with requirement 2
- if necessary carrier 1 (screws 2) as well.
● In this position, and taking care to ensure that carrier 1 is parallel to the machine
bedplate, tighten screws 2 and 6.
