Adjustment
11 - 25
11. 05.06 Engaging lever
Requirement
With the needle bar at TDC and with control lever
3 at starting position, there must be a
distance of approx.
0.3 mm between bolt 4 and the outer diameter of control cam 5.

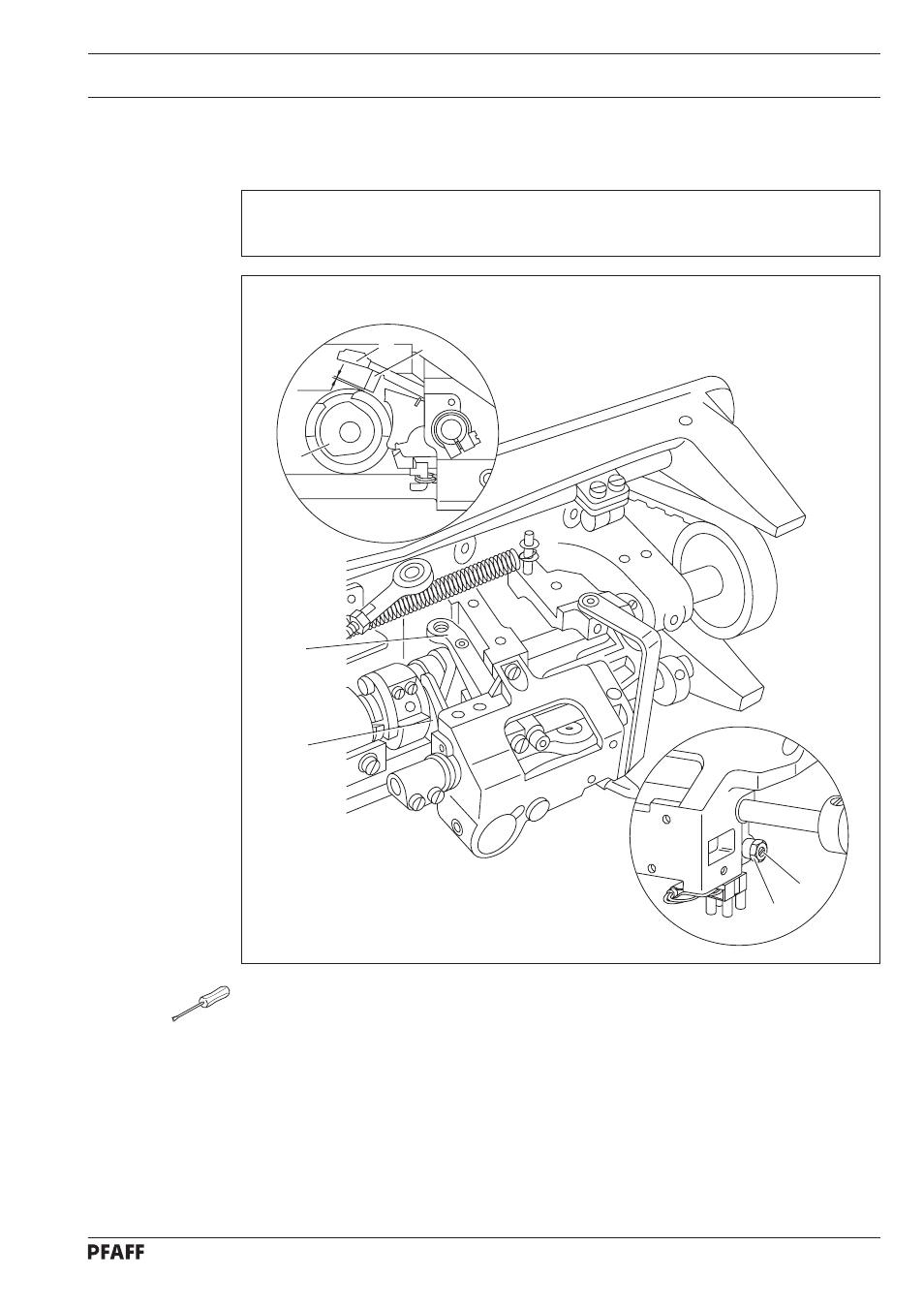

Fig. 11 - 22
● Bring the needle bar to TDC by turning the handwheel.
● Turn screw
1 (nut 2) in accordance with the requirement.
● Carry out a check by tapping control lever 3.
0.3 mm
5
1
2
3 4
3
5
