Adjustment
11 - 23
11. 05.04 Engaging solenoid
Requirement
In needle rise position and with engaging solenoid
5 activated, there must be a distance
of
0.3 mm between engaging lever 2 and pawl 3.

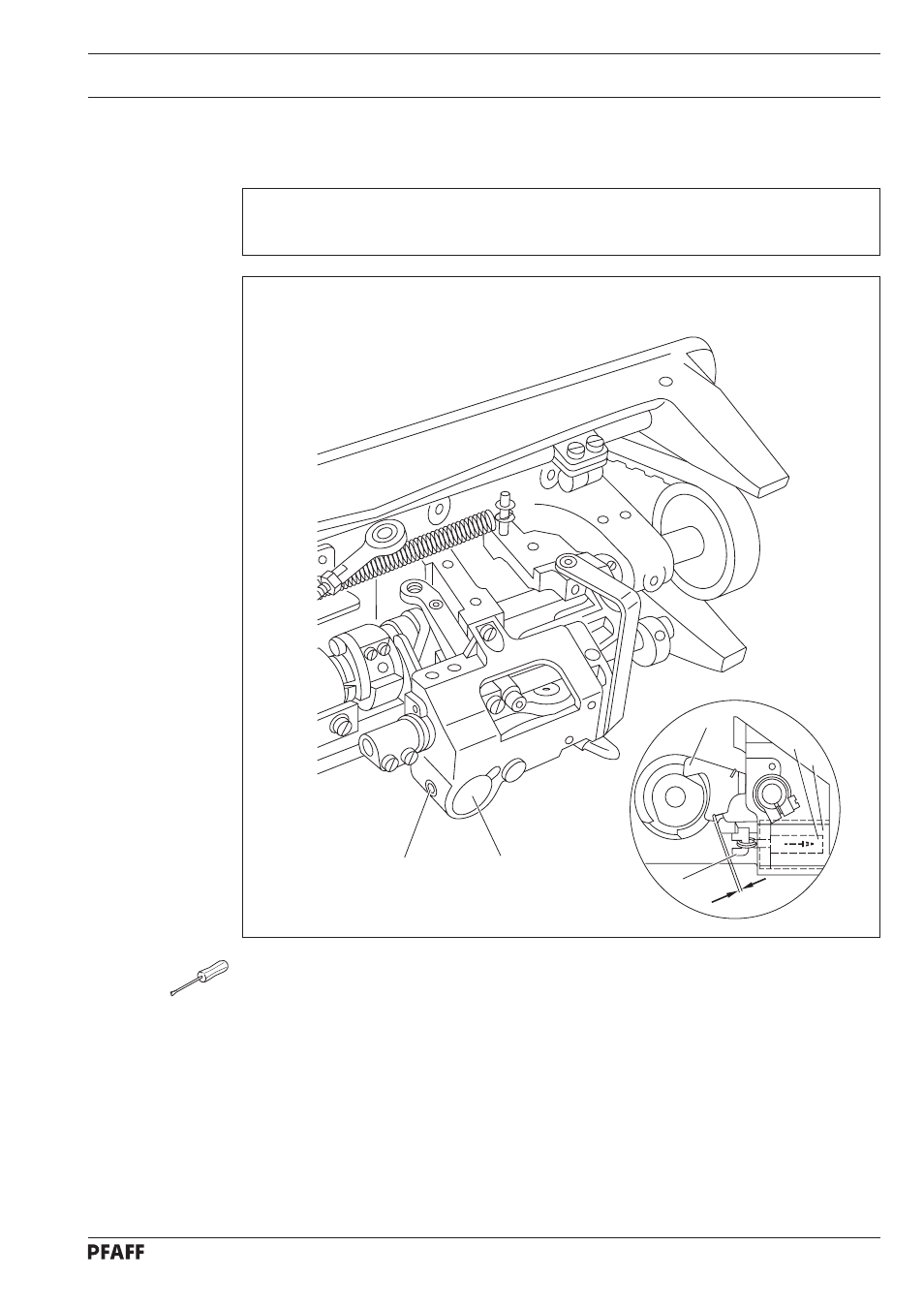

Fig. 11 - 20
2
3
0.3 mm
● Bring the machine to needle rise position by turning the handwheel.
● Loosen screw
1 until the engaging solenoid can be turned with difficulty.
● Manually activate engaging lever 2 so that pawl 3 engages.
● Press magneto inductor 4 as far as possible into solenoid housing 5 and move both the
solenoid housing and the magneto inductor in accordance with the requirement.
● In this position tighten screw 1.
4
5
1 5
