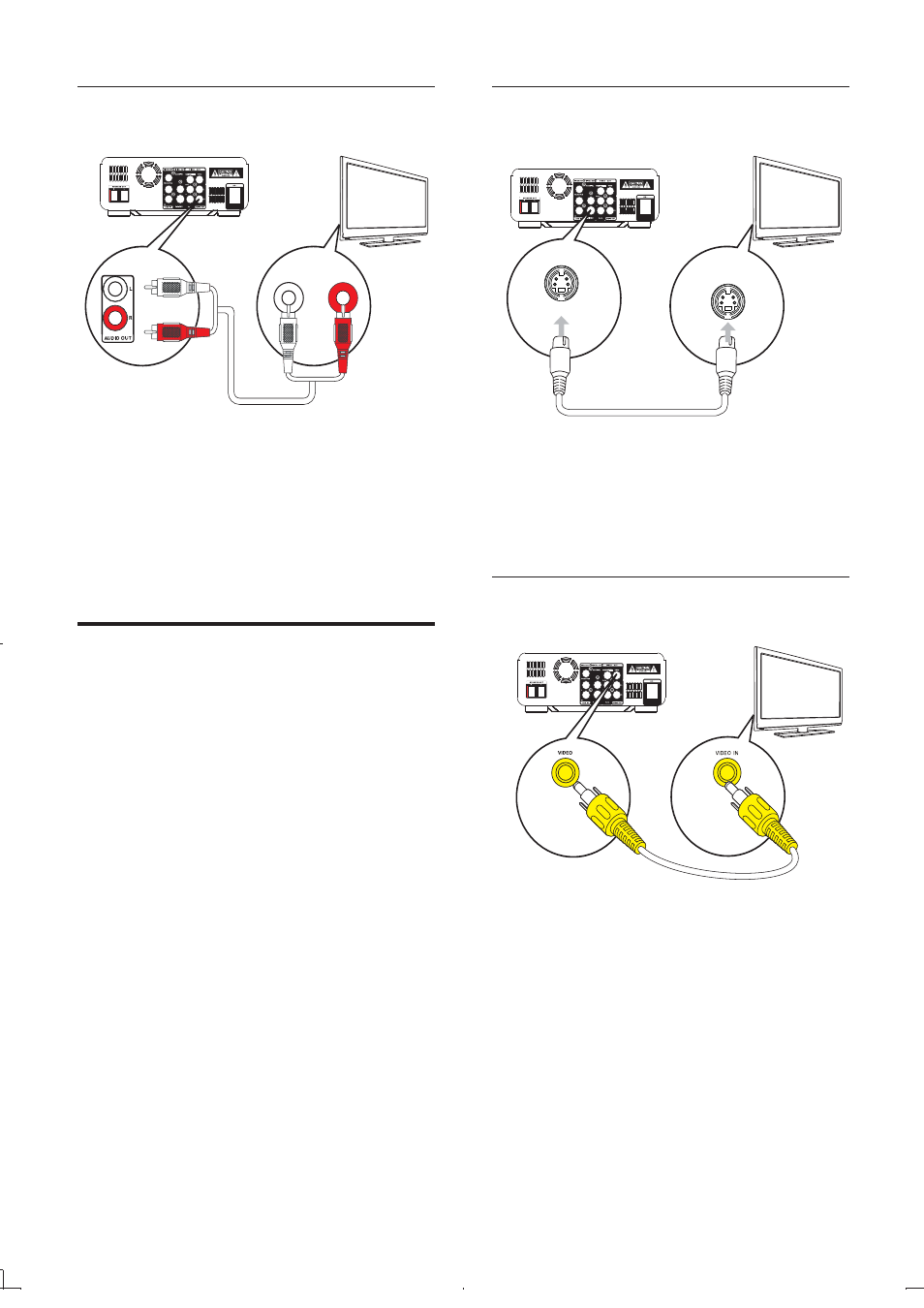

Option 1: Connect through an
S-Video cable
1
Connect an S-video cable (not supplied)
to:
the
•
S-Video socket on this unit.
the
•
S-Video socket on the TV.
Option 2: Connect through a
composite video cable
1
Connect the composite video cable
(supplied) to:
the
•
VIDEO socket on this unit.
the video input socket on the TV.
•
TV
S-VIDEO IN
S-VIDEO
TV
Option 2: Connect through analog
audio cables
1
Connect an audio cable (red/white ends)
to:
the
•
AUDIO OUT ( L and R ) sockets
on this unit.
the audio input sockets on the audio
•
device.
Connect video cables
You can select the best video connection that
your TV supports.
•
Option 1: Connect through an S-Video
cable (for a standard TV).
•
Option 2: Connect through a composite
video (CVBS) cable (for a standard TV).
•
Option 3: Connect through component
video cables (for a standard TV or
Progressive Scan TV).
•
Option 4: Connect through the iPhone/
iPod socket (for a standard TV).
TV
L LINE IN R
