Pride Mobility Cantilever Lift System - Manual (Page 9)

Basic Operation Instructions 9
Cantilever Lift System www.quantumrehab.com RevA/Nov03

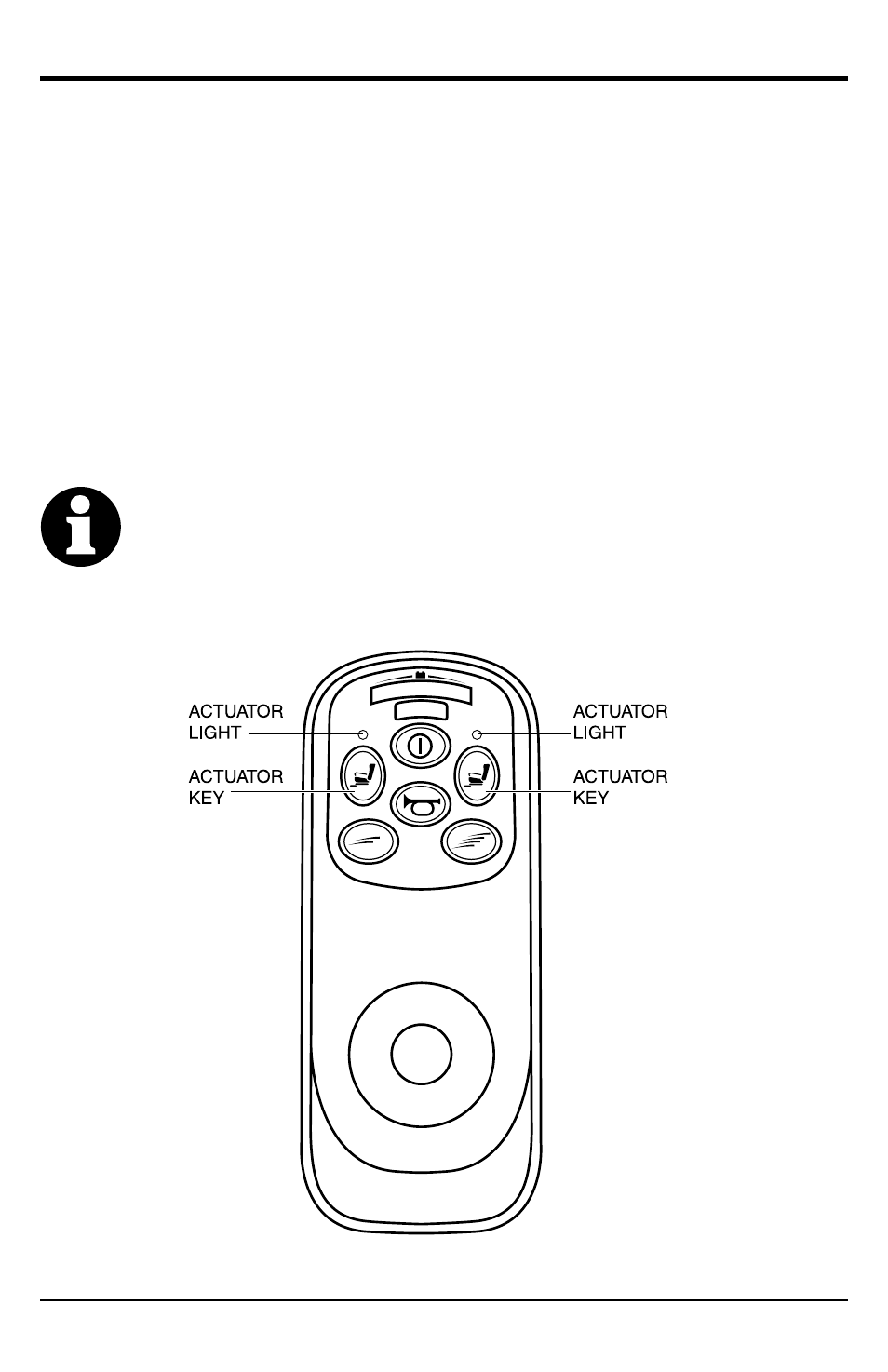

Figure 3. VSI Controller
CANTILEVER LIFT OPERATION - VSI
To operate the cantilever lift:
1. Bring your power chair to a complete stop.
2. Press an actuator key until the actuator light is on. See figure 3.
3. Push the joystick forward to raise the lift. Pull the joystick back to lower the
lift. Once the lift reaches its highest extension and the lift action stops, you
should continue to hear and/or feel the lift motor running. This is because there
is a clutch mechanism that allows the motor to continue running after the lift
has reached its limit. This clutch works at both the top and bottom extensions
of the lift. When you release the joystick, the lift motor will stop.
NOTE: Do not allow the motor to run more than a few seconds after
the lift reaches the top or bottom limit.
4. Press the actuator key again until the actuator light goes out.
