Pride Mobility Cantilever Lift System - Manual (Page 6)

6 Basic Operation Instructions
Cantilever Lift System www.quantumrehab.com RevA/Nov03

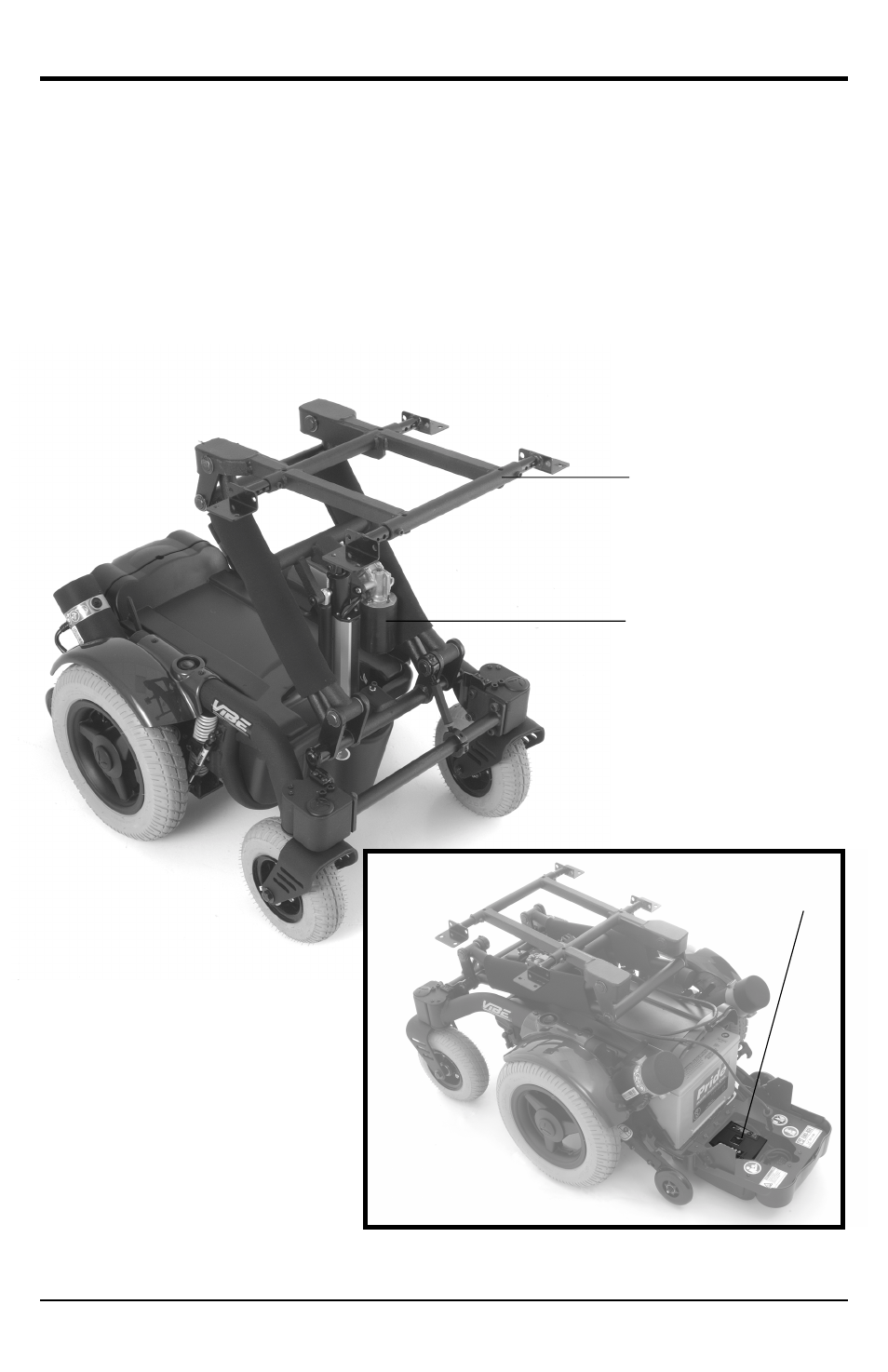

Figure 1. Cantilever Lift System
LIFT FRAME
ACTUATOR
ALM
CANTILEVER LIFT SYSTEM
The Cantilever Lift System is designed specifically for the Vibe power base. The
Cantilever Lift System consists of a lift frame that is integrated into the Vibe power
base, an actuator, and an actuator lighting module (ALM). See figure 1. The ALM
enables the controller to divert power from the batteries to the actuator. The actuator
provides the lift. The total lift is 12 inches. Lift speed is 1/2 inch per second. The
Cantilever Lift System is equipped with a speed inhibit that reduces your power chair’s
speed to one quarter (1/4) when the seat is elevated more than 3 inches.
Rear View
