T1/E1 port test modes 64
Model 2616RC T-DAC User Manual 5 • Troubleshooting and maintenance
T1/E1 port test modes
The 2616RC offers a number of diagnostics tools to test operation and performance of the T1/E1 ports and
line. Diagnostics include DSX1 payload loop and DSX1 line loop.
DSX1 payload loop (dsx1PayloadLoop)
When activated, the received signal at the selected T1/E1 port, will be looped through the 2616RC (see
figure 54 ). Typically the received signal is looped back for retransmission after it has passed through the
device's framing function (framing is terminated and then regenerated).

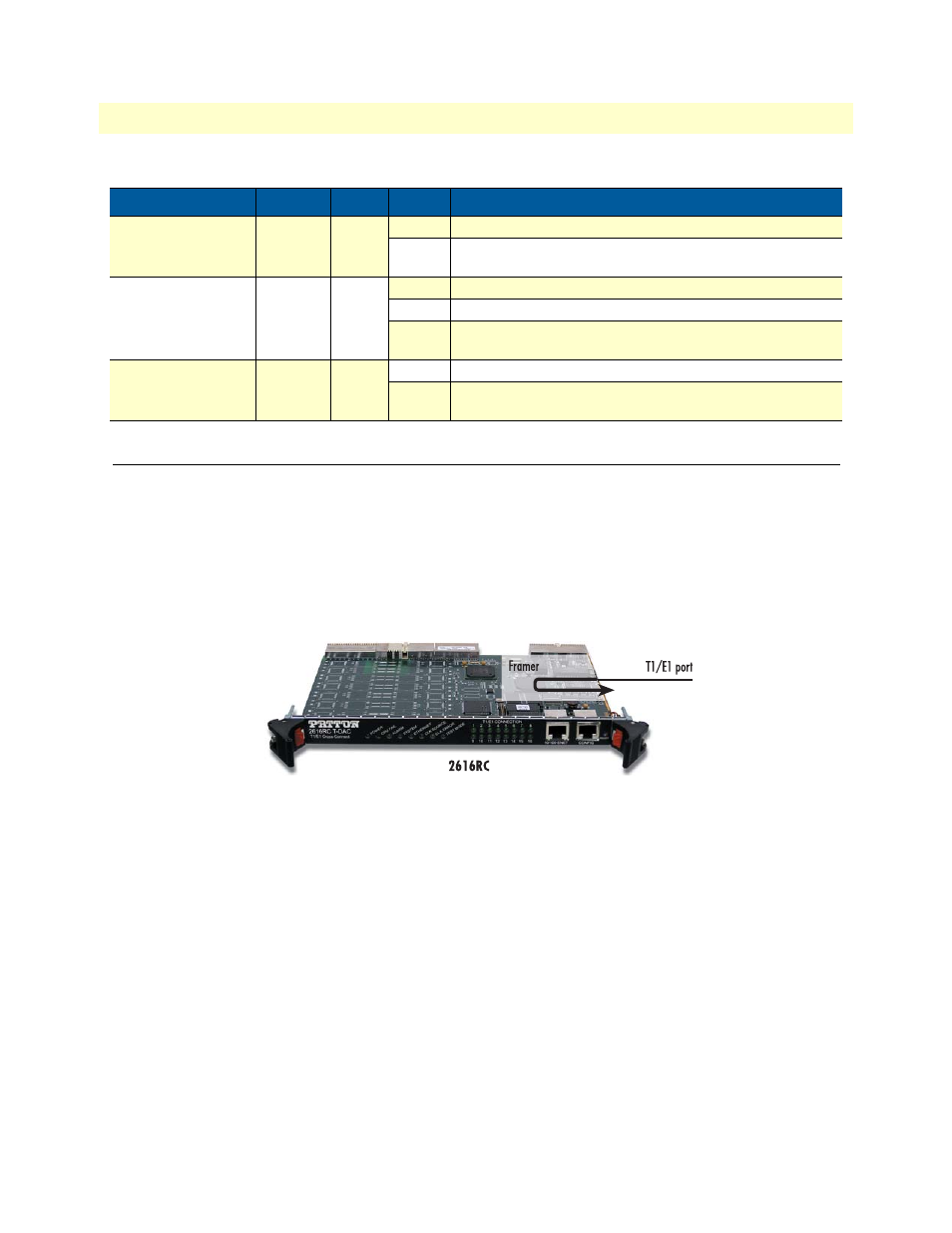

Figure 54. Payload loopback
To activate payload loop, do the following:
1. Click on the Modify Configuration link of the T1/E1 port to be placed under test
2. Locate the Loopback Configuration drop down menu
3. Select Payload Loop and click on the Submit Query button on the right.
To deactivate payload loop, set the Loopback Configuration drop down menu to NoLoop.
READY Front panel Blue On Card ready for removal from Patton ForeFront chassis.
Off Card not ready for removal from Patton ForeFront chassis.
Do not remove card from chassis.
ALARM Rear blade Yellow On solid A minor alarm condition has been detected.
Flashing A major alarm condition has been detected.
Off The Model 2616RC is operating normally. No action
recommended.
READY Rear blade Blue On Card ready for removal from Patton ForeFront chassis.
Off Card not ready for removal from Patton ForeFront chassis.
Do not remove card from chassis.
Table 7. LED definitions (Continued)
LED Location Color Status Meaning
