Cable installation

26

Model 2616RC T-DAC User Manual

2 • Hardware installation

68-pin SCSI to open end cable
The SCSI-to-open-end cable (see

figure 12

) connects the 2616RC T1/E1 lines to a punch-down block via 24

gauge solid wire (0.5mm). The other end will be unterminated, open-end twisted pairs. Refer to

table 5

for

punch-down block wiring information.

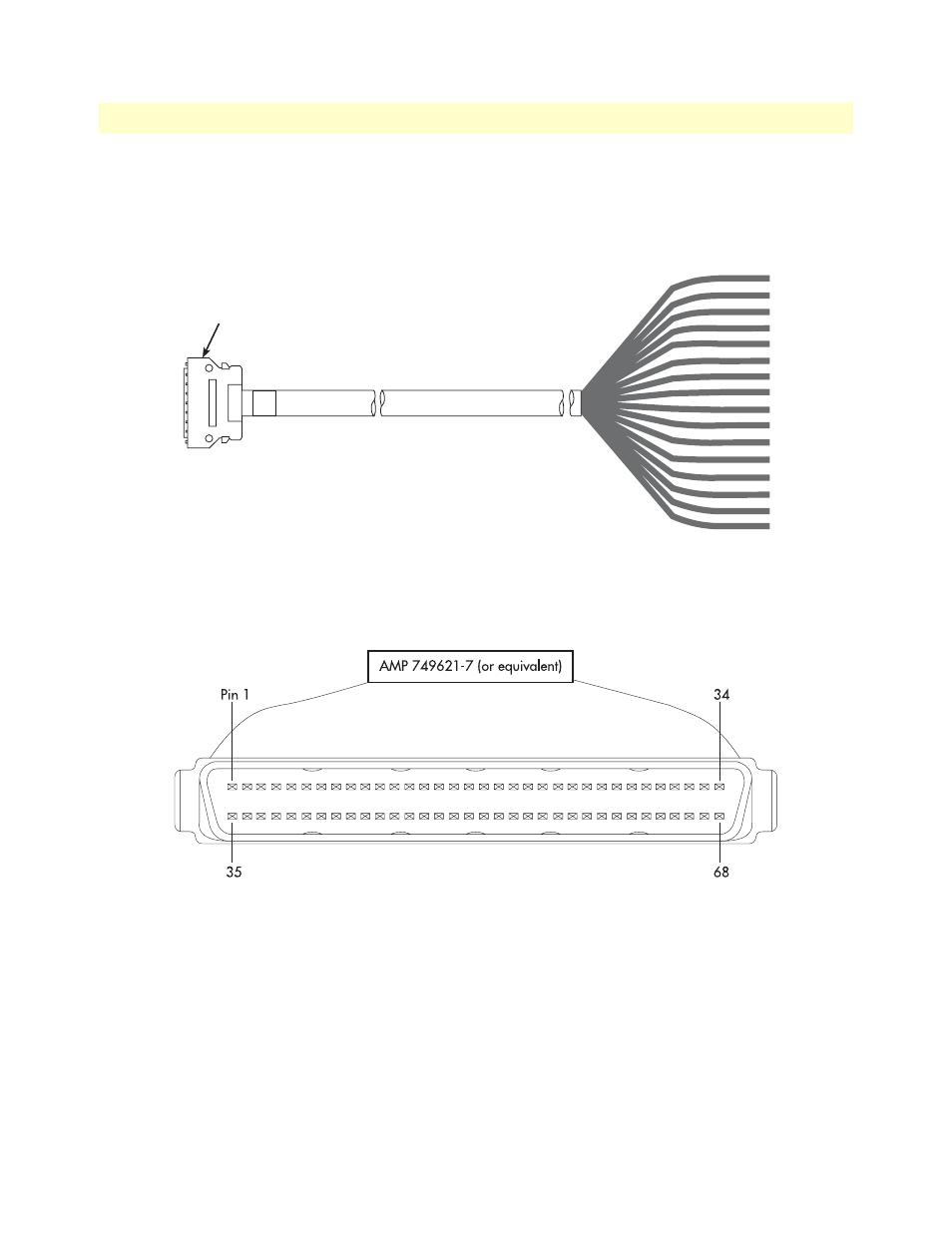

Figure 12. SCSI-to-open-end WAN cable

Figure 13. 68-pin SCSI connector

68-pin SCSI connector
