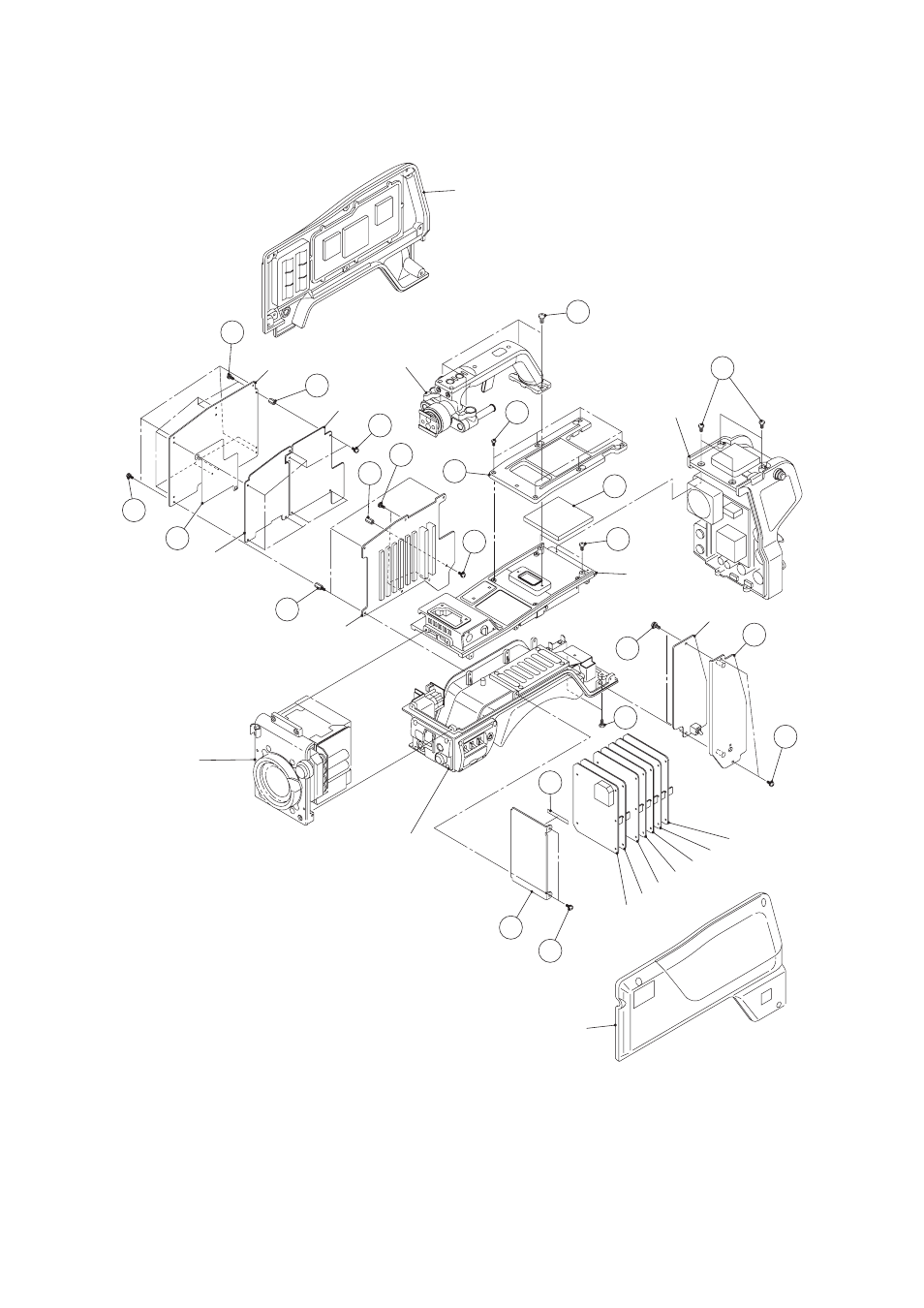

PRT-1

CHASSIS FRAME ASSEMBLY

SIDE CASE (L)
ASSEMBLY
(See PRT-17)

REAR CASE (1)
ASSEMBLY
(See PRT-11)

HANDLE
ASSEMBLY
(See PRT-15)

TOP CASE
ASSEMBLY
(See PRT-5)

BOTTOM CASE (1)
ASSEMBLY
(See PRT-7)

SIDE CASE (R)
ASSEMBLY
(See PRT-17)

FRONT
ASSEMBLY
(See PRT-3)

6

7

127

127

127

127

1

3

127

104

5

122

4

119

129

119

201

127

2

8

127

119

E7

E9

E18

E8

E17

E10

E11

E12

E13

E14

E15

E16
