L80-045 Rev0 (11/07) 9

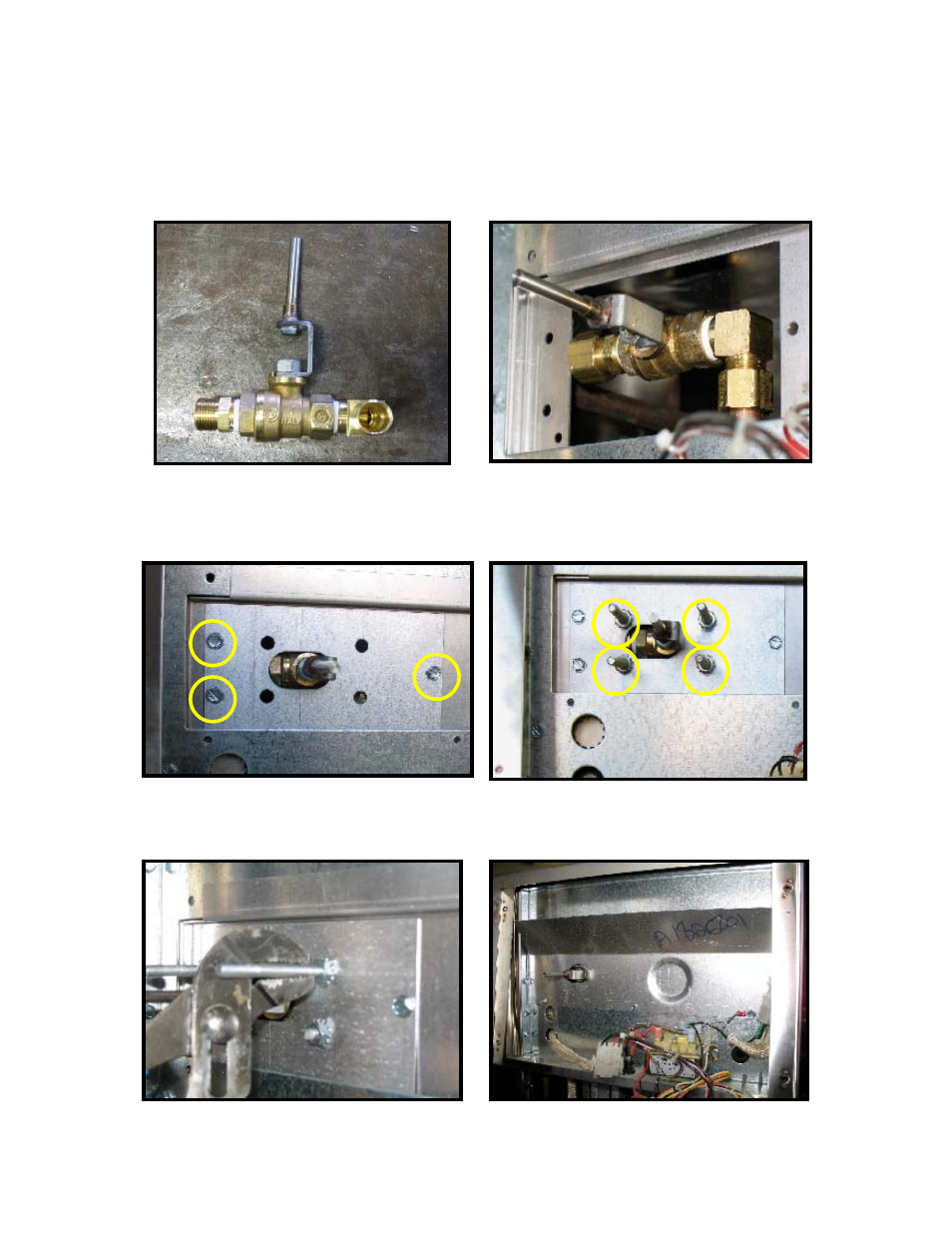

11. Apply Teflon tape the NPT ends of the fitting bodies removed earlier.
Assemble the fittings with fill valve (PP10945). Add the knob extension
to the assembly and install. Make sure the flat side of the “D” shaft faces
the 90° fitting.
12. Install the manual fill option cover plate (A1826101-C) using the original
hardware. Install two the u-bolts (PP10270) and four kep nuts
(P0092300) and tighten.
13. Using a pair of channel locks brake off the extra studs of the U-bolts.
Reinstall the heat shield using the original hardware.
