8

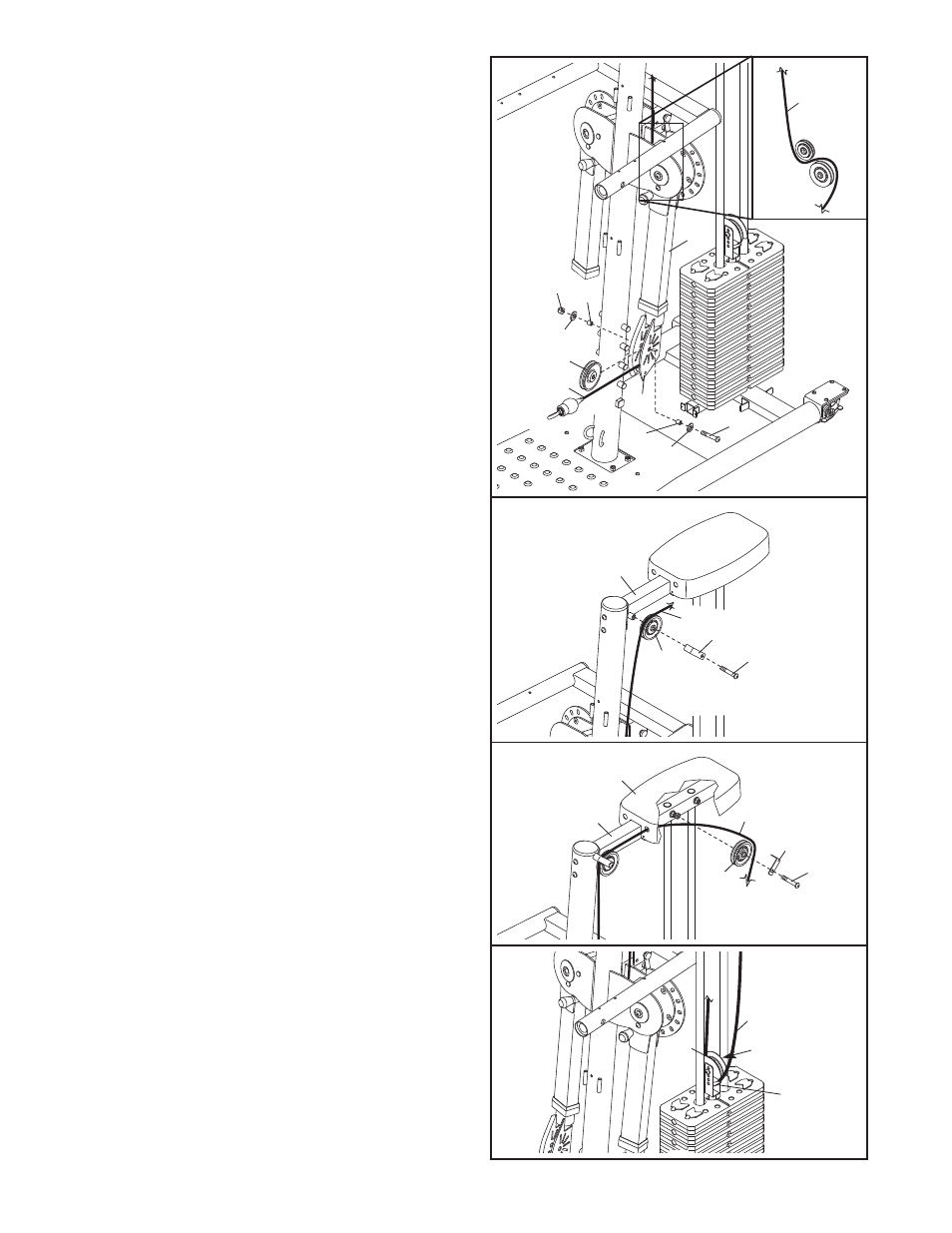

7. Refer to the CABLE DIAGRAM on page 17 to
ensure correct cable routing during steps 7
through 14.
Use the wire in the Left Press Arm (7) to pull the
Press Arm Cable (66) up through the Press Arm.
Make sure that the Cable is routed around the
pulleys above the Press Arm as shown in the
inset drawing.
Hold a 4" Pulley (42) over the Press Arm Cable
(66). Attach the Pulley inside the Swivel Arm (26)
with an M10 x 50mm Button Bolt (88), two M10
Washers (105), two 16mm x 6mm Spacers (11),
and an M10 Nylon Locknut (108).
9. Route the Press Arm Cable (66) through the Top
Cover (24) and over a 3 1/2" Pulley (43). Attach
the Pulley and a Cable Trap (47) to the Top
Frame (12) with an M10 x 40mm Screw (97).
Make sure that the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
10. Route the Press Arm Cable (66) between the 3
1/2" Pulley (43) and the Cable Trap (47). Make
sure that the Cable Trap is oriented to hold
the Cable in the groove of the Pulley. Tighten
the M10 Nylon Locknut (108).
8. Route the Press Arm Cable (66) over a 3 1/2"
Pulley (43). Attach the Pulley and a Cable Trap
(47) to the Top Frame (12) with an M10 x 40mm
Screw (97).
Make sure that the Cable Trap is
oriented to hold the Cable in the groove of the
Pulley.
7
7
11
11
88
105
105
108
42
66
26
12
8
10
9
24
66
66
47
108
66
12
66
47
43
43
43
97
47
97
