ProForm Fusion PFSY6806.0 User Manual

Page 16

108

Lever

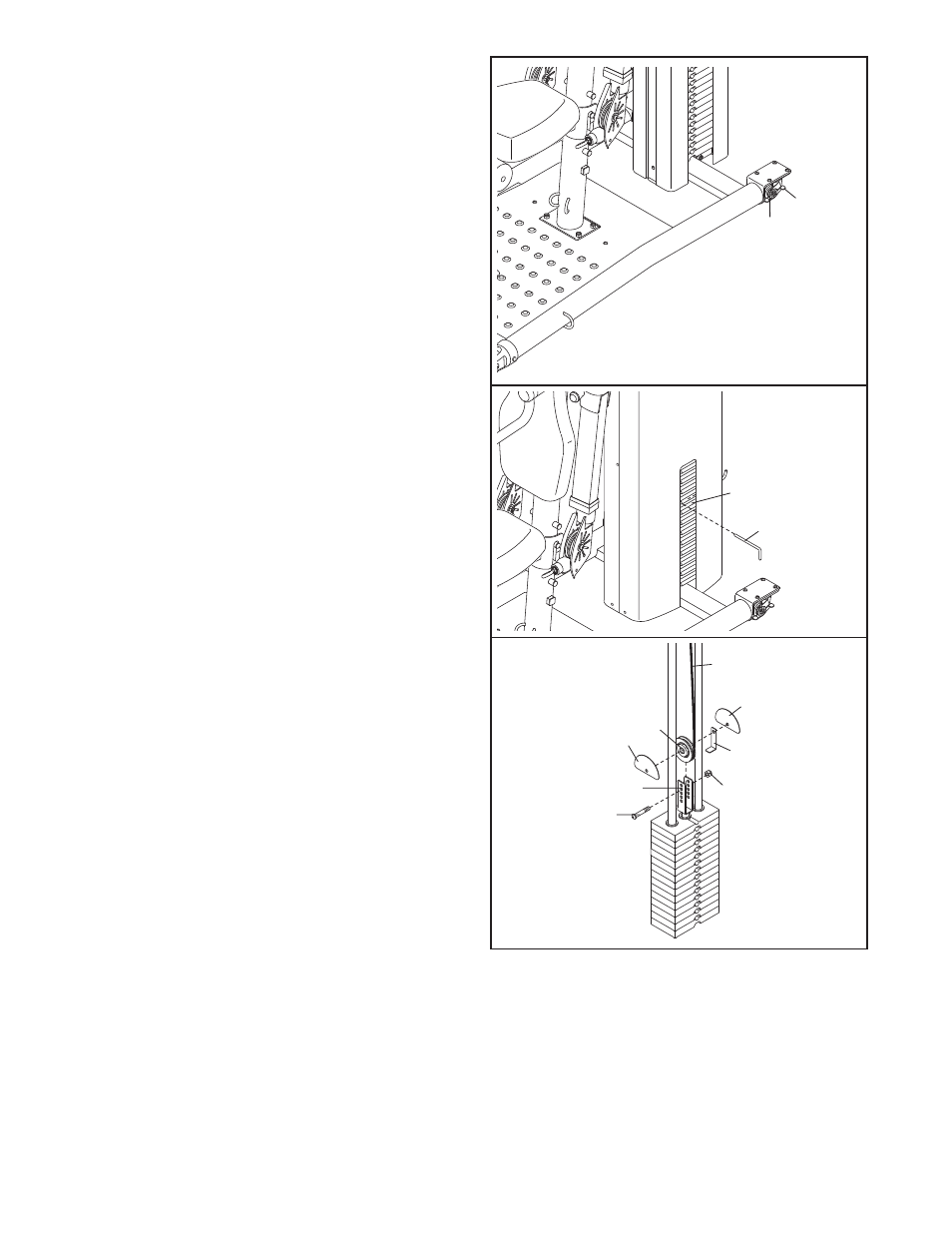

MOVING THE WEIGHT SYSTEM

To move the weight system, step on the levers on the
Locking Casters (76) to unlock the wheels. Move the
weight system to the new location. Relock the wheels
on the Locking Casters.

CHANGING THE WEIGHT SETTING

To change the setting of the weight stack, insert the
Weight Pin (28) under the desired Weight (27). Insert
the Weight Pin so that the bent end touches the
weight stack. Turn the bent end down.

Note: Due to the cables and pulleys, the amount
of resistance at each exercise station may vary
from the weight setting. Use the WEIGHT
RESISTANCE CHART on page 17 to find the
approximate amount of resistance.

ADJUSTING THE CABLE

Woven cable, the type of cable used on the weight
system, can stretch slightly when it is first used. If
there is slack in the cable before resistance is felt, the
cables should be tightened.

To tighten the Press Arm Cable (66), remove the M10
x 50mm Bolt (96) from the Weight Tube (16).
Reattach the 3 1/2" Pulley (43), the Cable Trap (47),
and the two Finger Guards (48) to a lower hole in the
Weight Tube with the Bolt and an M10 Nylon Locknut
(108).

Make sure that the Cable Trap is oriented to

hold the Press Arm Cable (66) in the groove of the
Pulley. To loosen the Cable, attach the Pulley to a
higher hole in the Weight Tube.
