Mono Input Channel Controls

6 – Pyle Pro Mixer PYD6070/1270 Owner’s Manual

MIC

Each mono input channel comes with an XLR

balanced microphone input connector and also

offers a +48V PHANTOM switch to supply power

for condenser microphones. Please mute the

playback/PA loudspeakers system before switching

on +48V PHANTOM power to prevent the switch-

on thumps being directed to the loudspeakers.

Please connect the microphones before switching

on the +48V PHANTOM power supply, do not

connect microphones to the mixer as long as the

phantom power supply is switched on. Wait for

approximately one minute to get the system

stabilized.

LINE

Each mono input channel comes with a balanced

1/4" (TRS) line level input jack. The unbalanced

devices can also be connected to this input.

NOTE

Please use only either the MIC or LINE input of

a channel at any one time, do not use both

simultaneously.

GAIN

This rotary GAIN control adjusts the channel input

gain level. Proper gain setting gives the mixer to

work in the best operating level. Please turn it

to 0 completely whenever you connect or

disconnect a signal source to one of the inputs.

EQ (HI/MID/LO)

ALL the mono input channels has a 3-band

equalizer, all bands provide up to 15dB of cut and

boost, with a centre detent for OFF. The cut-off

frequencies of HI and LO band are 10 kHz and 100

Hz respectively. The MID band is configured as a

peak filter with a center frequency at 1 kHz .

EFX

It enable you to feed channel signal to the external

effect.

PAN

It determines the amount of the channel signal

feeding the left and right mix bus, to locate the

source smoothly across the stereo image. Its

constant-power design ensure the signal is always

maintained at a constant level.

PEAK

It illuminates to warm you the input channel signal

is driven too high, which could cause distortion.

Use the GAIN control to adjust until the LED does

not light.

LEVEL

It determines the level of channel signal in the

MAIN mix bus and provides a clear visual indication

of channel level.

LO CUT (PYD1270)

It is a steep LO CUT filter designed to eliminate

unwanted low frequency hum. It is useful on live

vocals to reduce stage rumble or "popping" noise

from microphone.

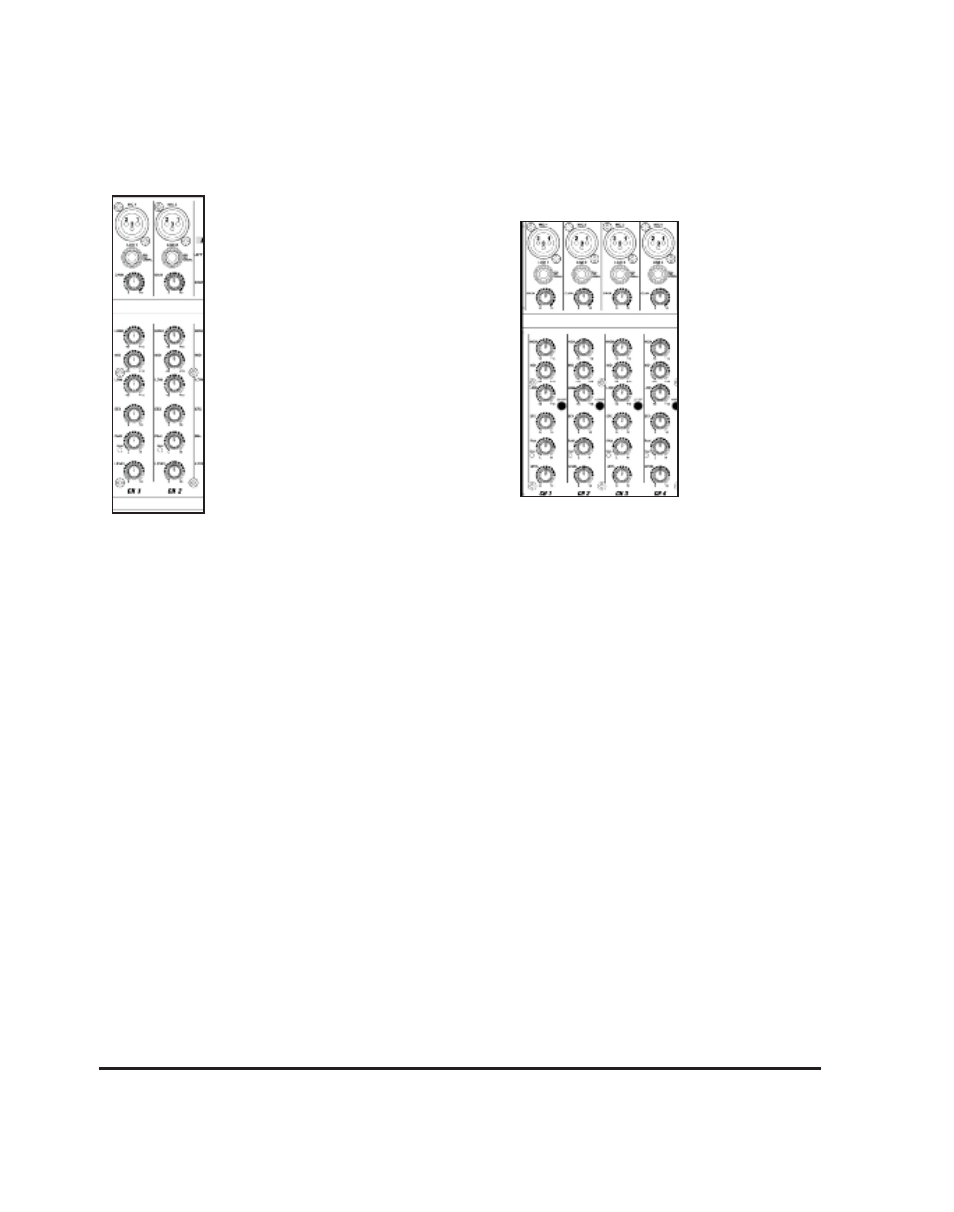

CH1/CH2 For PYD6070

CH1/CH2/CH3/CH4 For PYD1270
