2 – Pyle Pro Mixer PYD6070/1270 Owner’s Manual

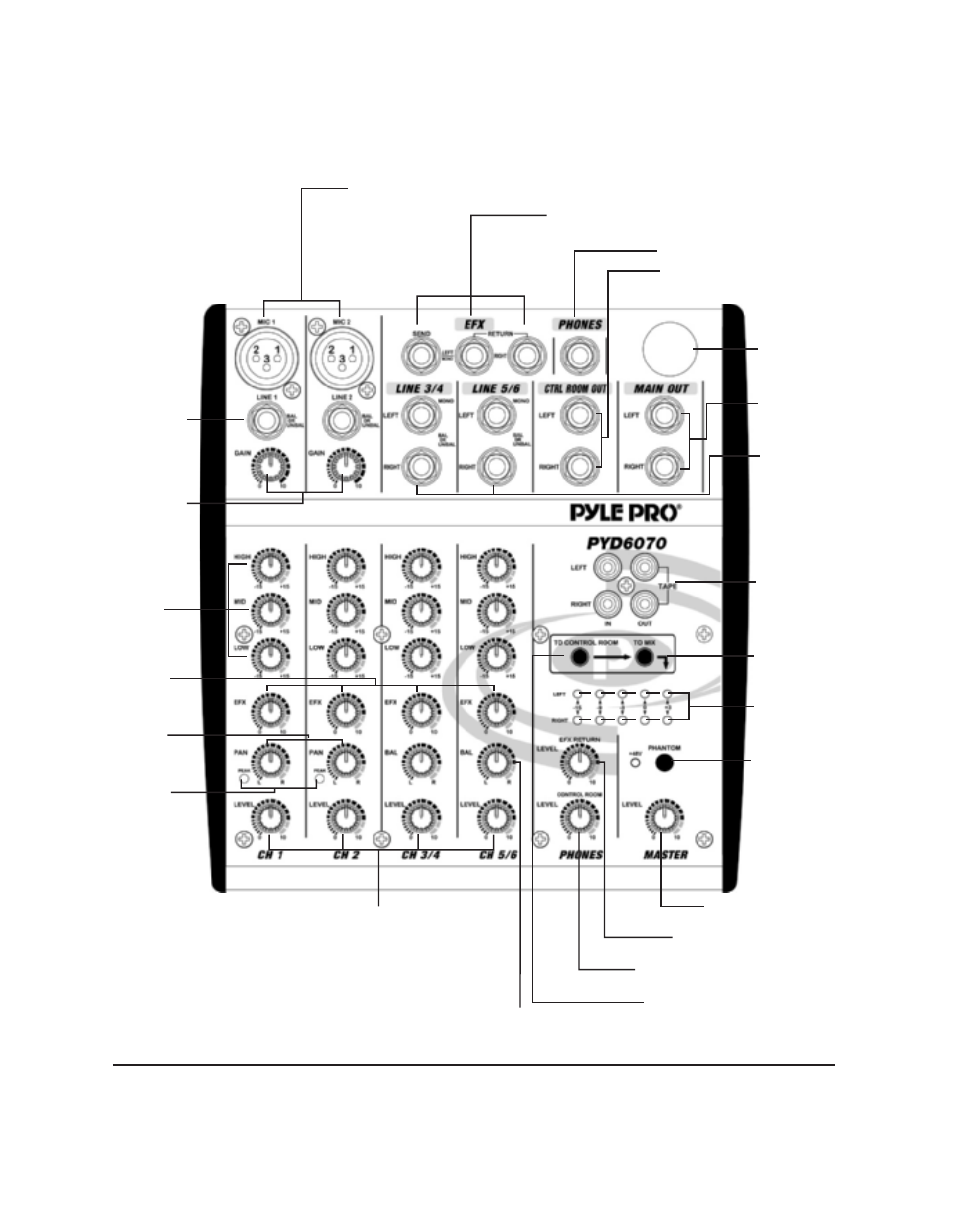

Features and Controls: PYD6070 Mixer
MIC1 & MIC2 Balanced XLR Input Connector
For connecting a balanced low impedance microphone with XLR type plug.
LINE 1 & LINE 2
BAL or UNBAL
1/4" (TRS)
Input Jack
For connecting a
balanced or
unbalanced line
level sources.
MIC1/LINE 1 &
MIC2/LINE 2
GAIN Control
Lets you adjust
the gain of the
input source.
CH1, CH2,
CH3/4, & CH5/6
Tone Controls
(EQ)
CH1, CH2,
CH3/4, & CH5/6
EFX Control
Lets you adjust the
channel signal level
sent to the external
effect.
CH1 & CH2
PEAK Indicator
Indicates the channel
signal is going into
overload.
CH1 & CH2
PAN Control
Lets you adjust
the channel signal
level feeding the
L & R mix bus.
CH1, CH2, CH3/4, &
CH5/6 LEVEL Control
Lets you adjust the channel
signal level sent to the MAIN
mix bus.
CH3/4 & CH5/6 BAL Control
Lets you adjust the channel signal levels of left and
right relative to each other before both signals are
then sent to the MAIN mix bus.
It allows you to balance the source in the stereo image.
CONTROL ROOM/PHONES Level Control
Lets you adjust the signal level sent to the
control room and headphones.
EFX RETURN Level Control
Lets you adjust the effects signal
level sent to the MIAN mix bus.
MASTER Level Control
Lets you adjust the signal level
of MAIN and TAPE outputs.
PHANTOM +48V
DC Switch with
Indicator
Press to accept the
use of condenser
microphones.
DUAL LED
DISPLAY METER
Indicates the levels
of left and right
MAIN outputs.
TAPE TO CONTROL ROOM Switch
Press to route the signal playback from
tape to the control room.
TAPE TO MIX
Switch
Press to route the
signal playback from
tape to the MAIN
mix bus.
TAPE IN & OUT
Jacks
To connect the
mixer to a tape deck
for recording the
mixed program and
for auditioning mix
playback from tape.
MAIN OUT Jacks
To connect the
mixer to a receiver
or amplifier.
CTRL ROOM OUT Jacks
To connect the mixer to a second receiver
or amplifier powering speakers in the
control room or in a remote location.
POWER ON
Indicator
EFX SEND/RETURN Jacks
Permit you to either include externally generated effects
(such as a digital sampler or synth) IN the mix, or to
process the mixed sound (echo reverb, etc.).
HEADPHONES Jack
Accepts the headphones with 1/4" plug.
LINE 3/4 & LINE
5/6 BAL or
UNBAL 1/4"
(TRS) Input
Jacks
For connecting a
balanced or
unbalanced stereo
line level sources.
Use LEFT input jack
only for each
channel, if the
source signal is
mono.
