8 – Pyle Pro Mixer PYD6070/1270 Owner’s Manual
Main Section Connections and Controls
EFX SEND Jack
It is a 1/4" unbalanced jack sends out the signals from mix bus to the external effects unit.
EFX RETURN Jacks/Control (PYD6070)
The EFX RETURN Jacks bring the output of the external effects unit back into the mixer. These jacks
can be used instead as additional line level inputs, but any external effects signal will have to be
brought back into the mixer via a normal stereo channel, it does allow you to use the channel EQ
on the effects return signal. When a normal stereo channel is used as effects return path, the EFX
control of the relevant channel should be turned fully down to
avoid undesirable feedback. If only the LEFT jack is used, the EFX RETURN is operated in MONO
mode. Use the EFX RETURN rotary control to adjust the effects signal levelsent to the MAIN mix
bus.
NOTE:PYD1270 uses two 1/4" (TRS) jacks of LINE 11/12 as EFX RETURN, turn the EFX GAIN of CH
11/12 fully down to avoid undesirable feedback when using this path.
PHONES/CTRL ROOM OUT Jacks
The stereo PHONES jack sends the mix signals to the headphones. The two unbalanced CTRL ROOM
OUT jacks carry the summed effects, main mix signals, and soloed channel signals to the control
room speakers.
POWER ON Indicator
The large size LED indicator illuminated when the mixer power is on.
MAIN OUT Jacks
The MAIN OUT jacks send line level signals from mixer to external devices, for examples, equalizer
or power amplifier.

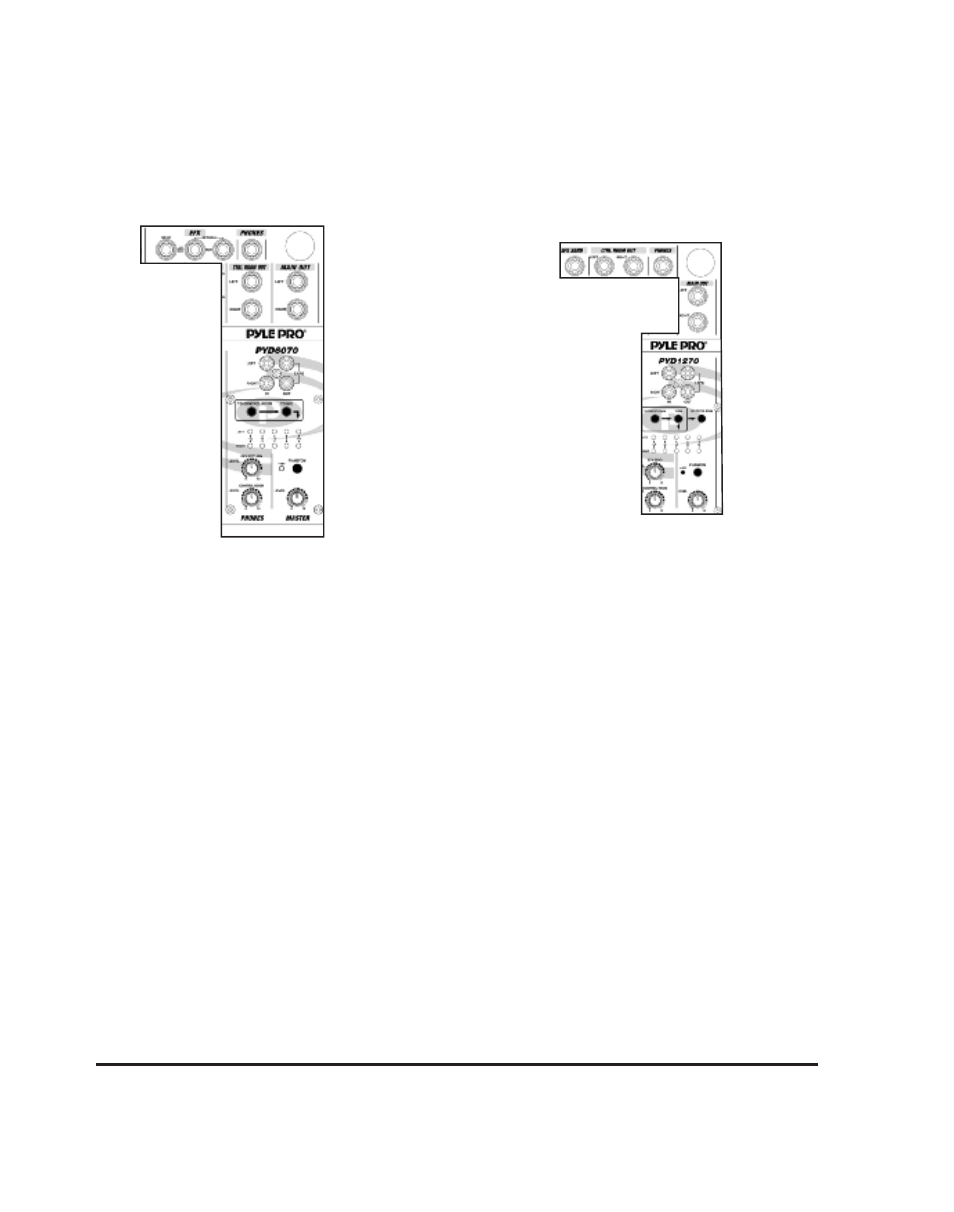

PYD6070 PYD1270
