5. Advanced Setup
5-12 September 2005 6218-A2-GB23-00
IP Filtering – Incoming
Incoming filter filters the traffic from the WAN side to the LAN side. Click on Add to
add incoming filter settings.

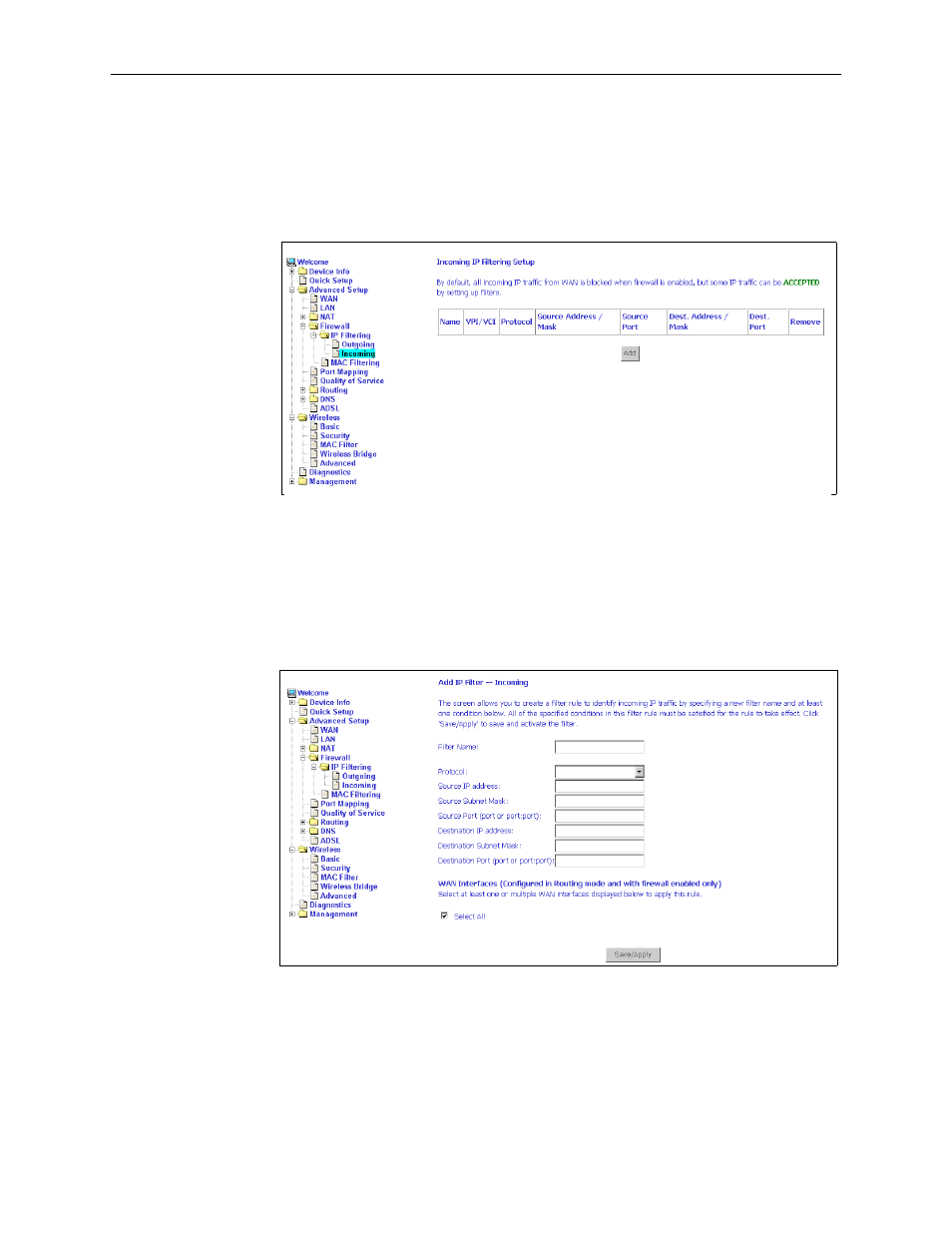

Figure 5-18. IP Filtering – Incoming Filter Setup Page
Enter a filter name, information about the source address (from the WAN side),
and information about the destination address ( to the LAN side). Select the
protocol and WAN interface. Then click on Save/Apply to add the setting.
Figure 5-19. IP Filtering - Incoming Filter Add
