Operating instructions, General instructions, External controls – Planar PL1520M User Manual
Page 13

10
OPERATING INSTRUCTIONS
GENERAL INSTRUCTIONS
Press the power button to turn the monitor on or off. The other control buttons
are located at front panel of the monitor (See Figure 4). By changing these
settings, the picture can be adjusted to your personal preferences.
•
The power cord should be connected.
•
Connect the Signal cable from the monitor to the VGA card.
•
Connect video/S-video cable from the monitor to a video source .
•
Press the power button to turn on the monitor. The power indicator will light
up.

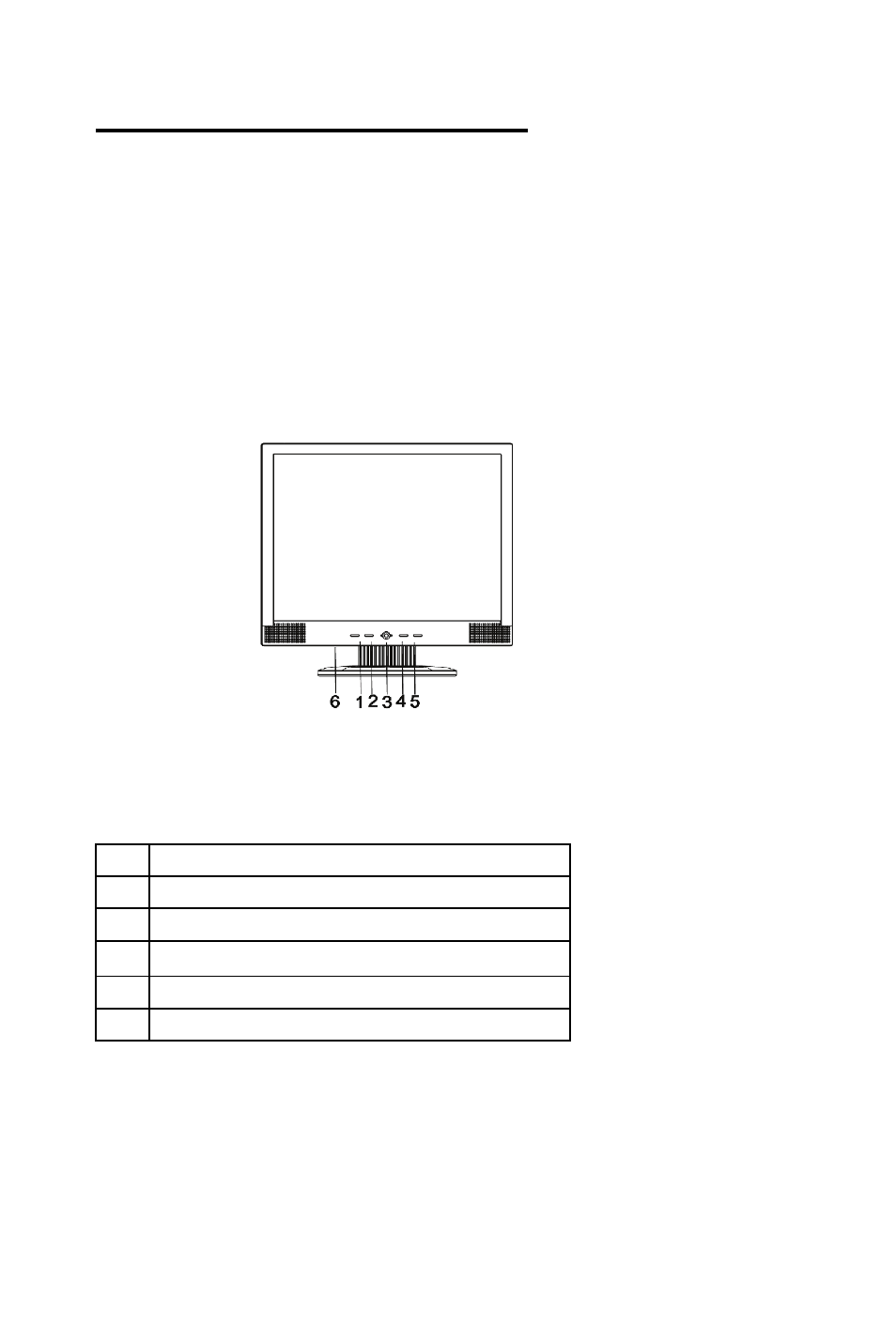

Figure 4 External Control Button
EXTERNAL CONTROLS
1.
AUTO Adjustment / Exit
2.
Vol – (Decrease) / Select menu item
3. Power
Button/LED
4.
Vol + (Increase)/ Select menu item
5.
Menu / Enter or Adjust
6.
Earphone output port
