8
INSTALLATION INSTRUCTIONS
CABLE CONNECTIONS
·
Connecting the Signal Cable: Plug one end of the VGA Cable to the LCD
monitor’s “ VGA” input socket , the other end to the computer's VGA port
and tighten the two screws on the cable connector.
· Connecting the Power Cord: Plug one end of the AC-power cord to the
LCD monitor’s AC input socket , the other end to a wall outlet.
·
Connecting the Audio Cable: Plug the audio cable between the computer
multi-media (or sound) card's audio output and the monitor's audio input
(located on the back of the monitor).
·
Connecting the S-Video Cable: Plug one end of the S-video cable (not
included) to the LCD monitor’s S-Video port and the other end to a video
source output.(eg. DVD player, video recorder, a film camara with S-Video
connection or a PC)
·
Connecting the Video Cable: Plug one end of the composite video cable
to the LCD monitor’s composite video port and the other end to a video
source .(eg. DVD player, video recorder, a film camara with video port or
gaming console)
Caution: If the AC outlet is not grounded (with three holes), install the proper
grounding adapter (not supplied).

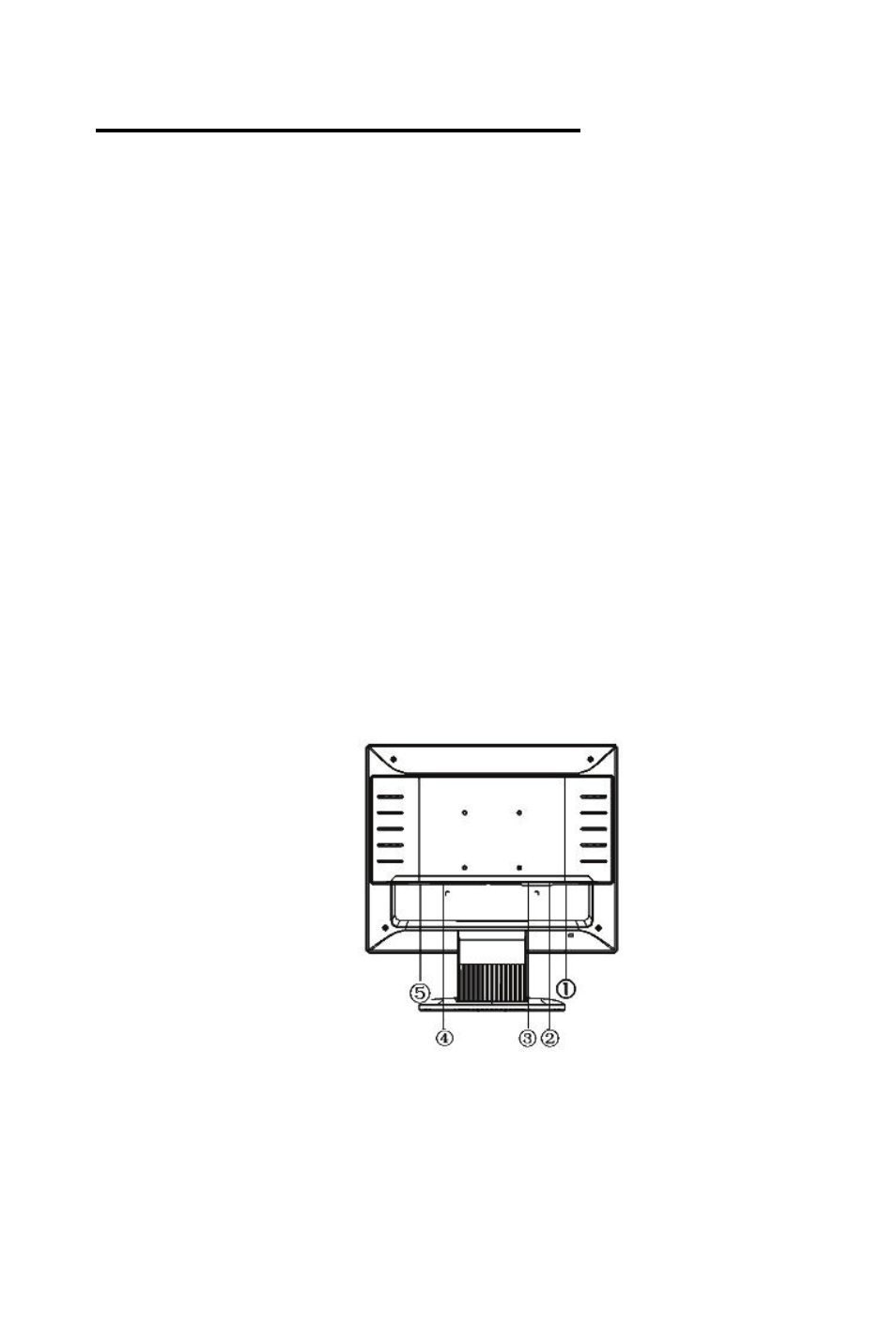

Figure 2 Connecting the Cables
① : Compsite Video Port
:
② S-Video Port
: ③ VGA port
: ④ Audio port
: AC Power input port ⑤
