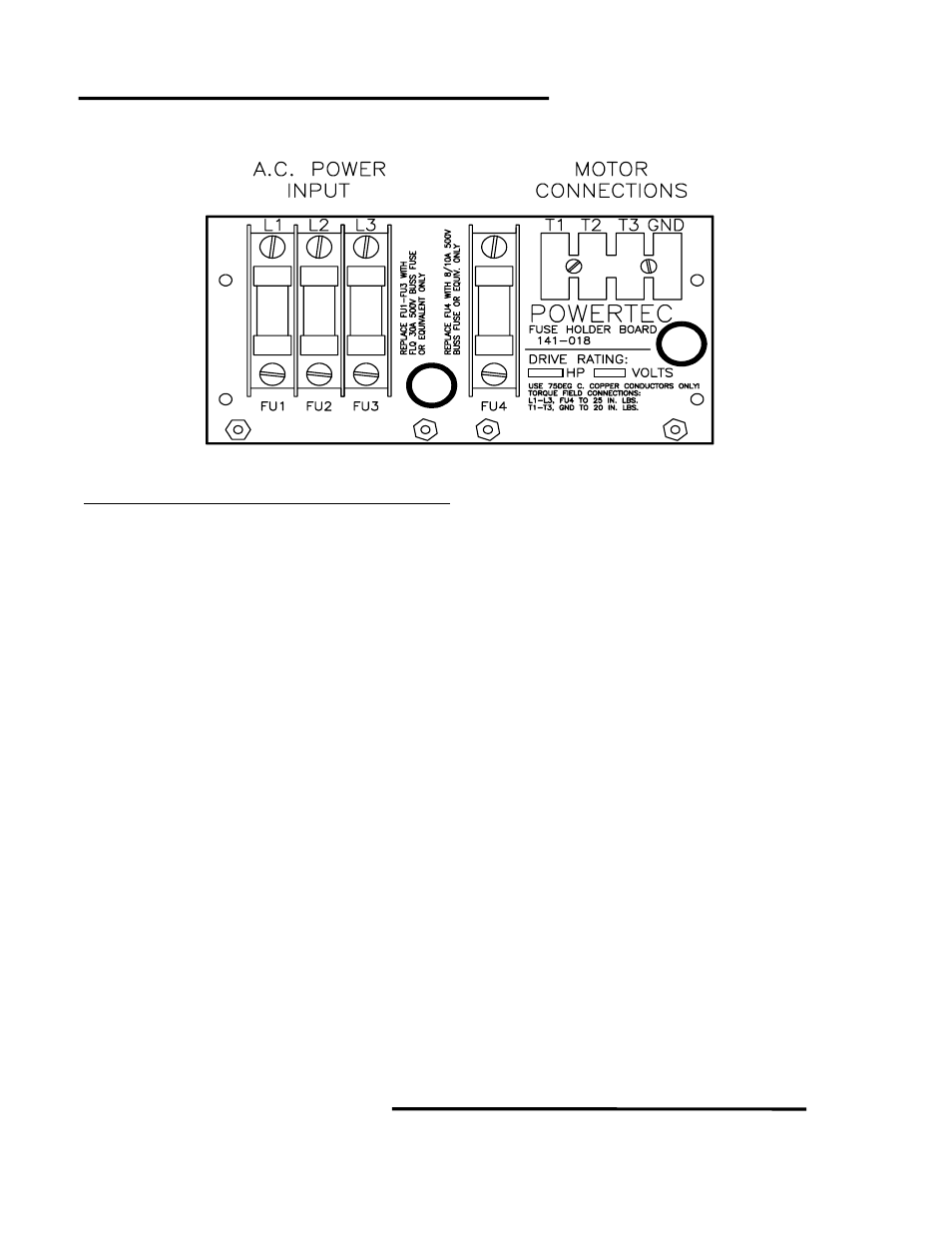

M O DEL 1000AR FUSE BO ARD
M o d e l 1 0 0 0 AR O u t p u t E l e c t r i c a l R a t i n g s
NOMINAL
AC LINE
VOLTAGE
HORSE-
POWER
KILO-
WATTS
MAXIMUM
CONTINUOUS
MOTOR
CURRENT
MAXIMUM
MOMENTARY
MOTOR
CURRENT
NOMINAL
HP
CALIBRATE
RESISTOR
230 ½ 0.37
2.2
3.3
68.1
K
230 ¾ 0.56
3.4
5.1
45.3
K
230
1 0.75
4.7
7.0
33.2
K
230 1.5 1.1
7.0
10.5
22.1
K
230
2 1.5
8.5
12.7
18.2
K
230
3 2.2
12.8
19.2
12.1
K
230
5 3.7
22.8
34.2
6.81
K
230 7.5 5.6
31.1
46.6
4.99
K
‡
230
10
7.5
41.5
61.1
3.74 K
380
1 0.75
2.7
4.0
56.2
K
380 1.5 1.1
3.9
5.8
39.2
K
380
2 1.5
4.7
7.0
33.2
K
380
3 2.2
7.8
11.7
20.0
K
380
5 3.7
14.1
21.1
11.0
K
380 7.5 5.6
18.8
28.2
8.25
K
‡
380
10
7.5
25.0
37.5
6.19 K
460
2 1.5
4.0
6.0
39.2
K
460
3 2.2
6.9
10.3
22.1
K
460
5 3.7
11.6
17.4
13.3
K
460 7.5 5.6
17.1
25.6
9.09
K
460 10 7.5
20.7
31.0
7.50
K
‡
460
15
11
31.1
46.6
4.99 K
‡
