Step 1
Home Theater connections
Before connecting
1
Placement of speakers
1
1
1
Stereo phono cable
Coaxial cable
1
Video connection cable
Speaker cable
1
Turn off all components before making any connections.
Note
• Use a digital connection to enjoy Dolby Digital or DTS (á page 10).
• Use an analogue connection to enjoy sources that cannot be decoded on this unit and to
record a source (á pages 10 and 18).
• Refer to pages 6 through 7 regarding connections to other equipment.
1
1
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE
CONNECTION.
1

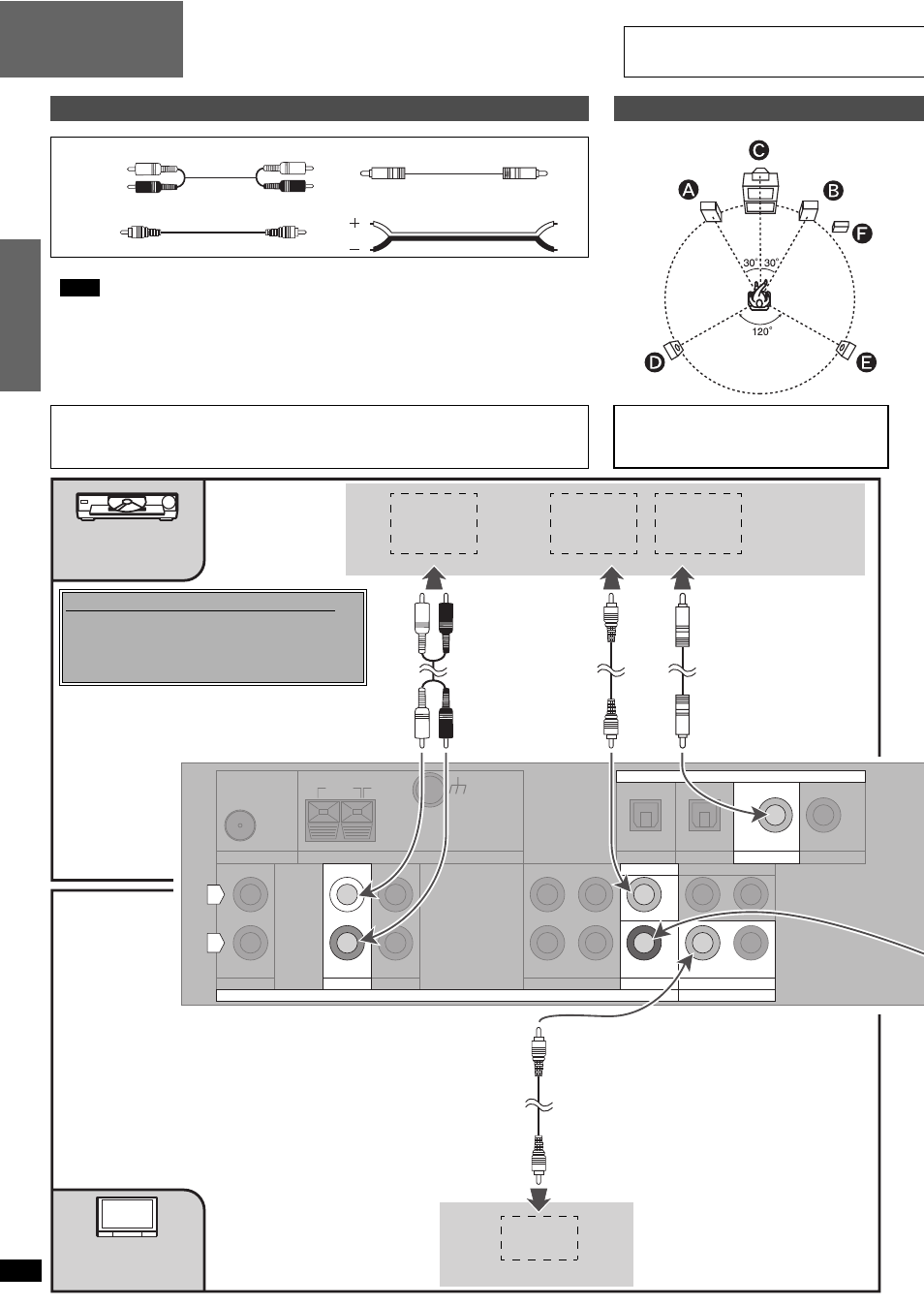

The front, center, and surround speakers
should be placed at approximately the same
distance from the seating area. The angles in
the diagram are approximate.
White (L)
Red
(R)
FM ANT
AM ANT
IN
CD
L
R
IN
TV
DVR/VCR
OUT
IN
(TV) IN
OPTICAL1
OPTICAL2
(DVR) IN
COAXIAL2
(CD) IN
OUT
SUBWOOFER
OUT
IN
DVR/VCR
DIGITAL
AUDIO
COAXIAL1
VIDEO
MONITOR OUT
IN
TV
(DVD) IN
IN
DVD
LOOP
EXT
LOOP ANT
GND
IN
DVD
75
Ω
DIGITAL
AUDIO OUT
VIDEO OUT
VIDEO IN
DVD player
TV or
monitor
Changing the digital input settings
You can change the input settings for the digital
terminals if necessary. Note the equipment you have
connected to the terminals, then change the settings
(á page 8).
AUDIO OUT
(L, R)
Step
1
DVD player/
TV or monitor
