Preparation
≥ To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
≥ For assembly, use a Phillips-head screwdriver.
≥ Make sure you have all the indicated components before starting assembly, setup, and connection.
≥ There is no difference between the right and left speakers and stands.
≥ For optional wall mount, refer to page 6.

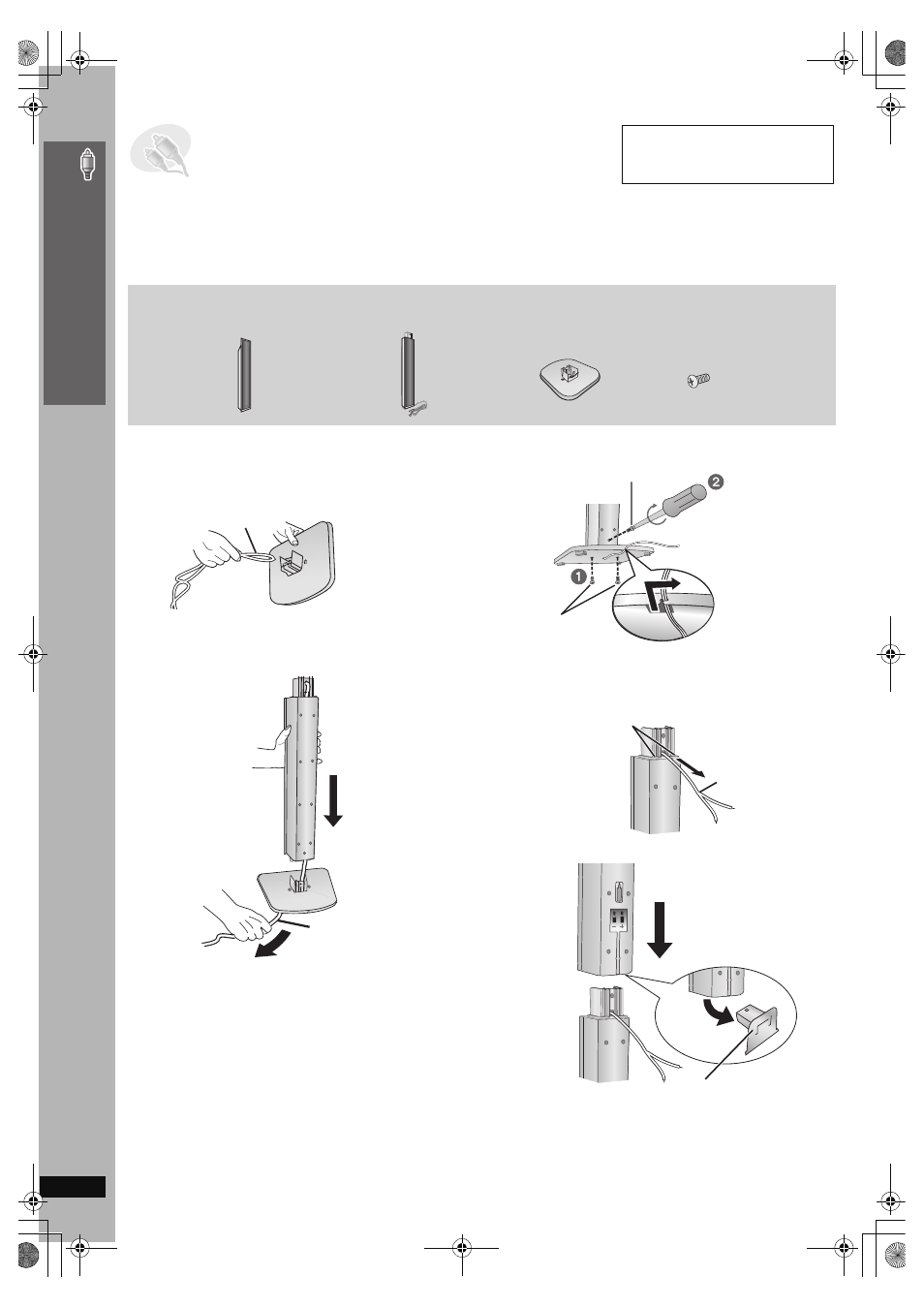

1

Attach the stand to the base.

1 Thread the speaker cable through the base.

For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the hole, and then pull
the rest of the cable through the base.

2 Attach the stand to the base while gently pulling on the

end of the speaker cable.

2

Secure the stand to the base.

3

Attach the speaker to the stand.

1 Pull out the end of the speaker cable and position it

between the ridges.

2 Attach the speaker to the stand.

STEP

1

Assembling the front speakers

The supplied stands are specially
designed for attachment to
Panasonic SB-FS540 front speakers.
Use only as indicated in this setup.

2 Front speakers
(with cover plate)

2 Bases

2 Stands
(with cable)

8 Screws

Base

Cable

Stand

Base

Cable
Pull gently.

Screw
Tighten securely.

Slide the speaker
cable into the groove.

Stand

Base

Screws
Tighten securely.

Cable

Ridges

Stand

Speaker

Stand

Cover plate
Remove before attaching the
speaker and keep for wall-mount
use (

➜ page 6).
