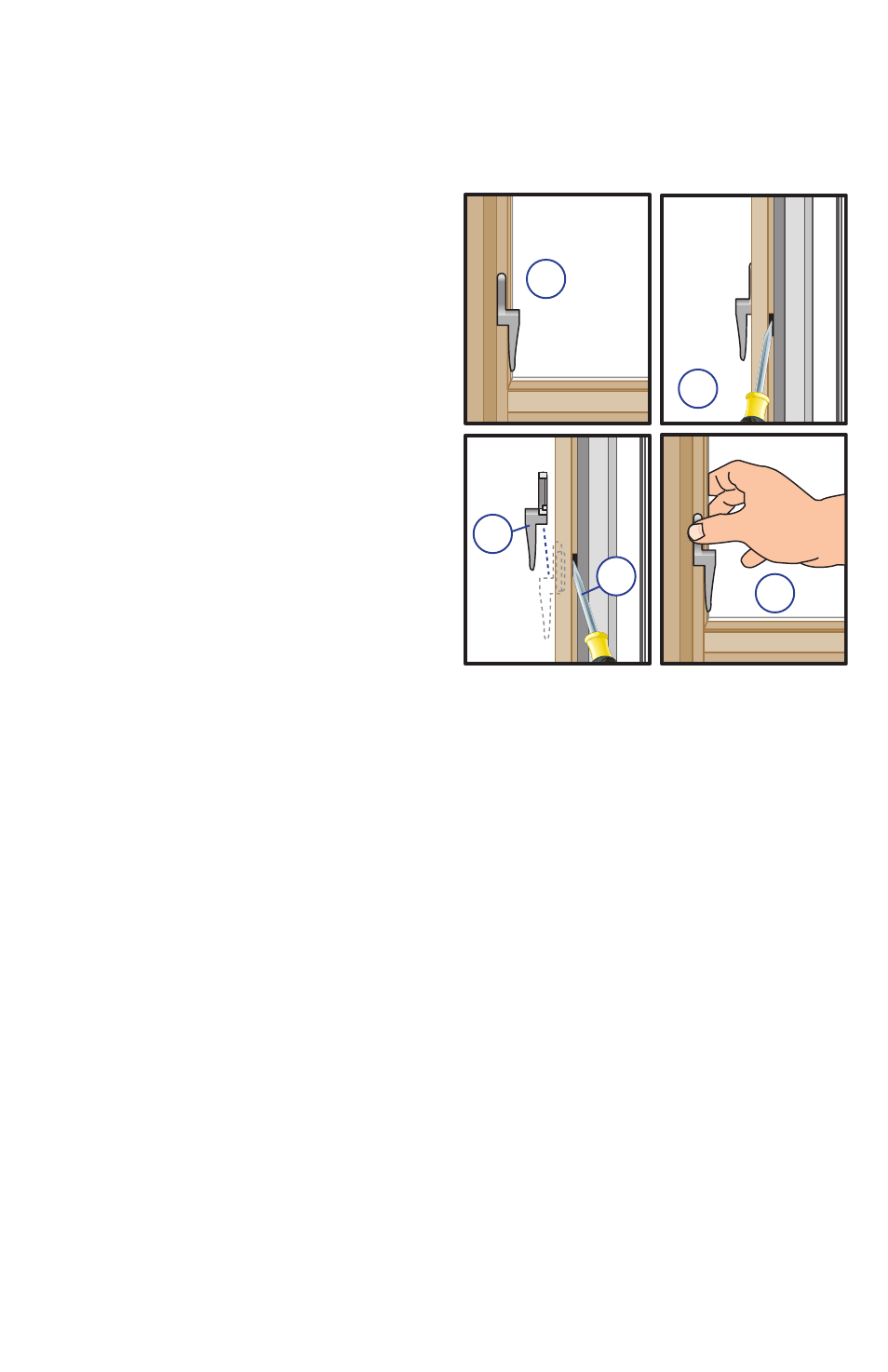

LOCK LEVER REMOVAL AND INSERTION
Note: You may want to remove the lock lever prior to finishing the window, or if it needs to be
replaced with a lock lever in a different finish.
Interior
B
Exterior
C
Interior
F
Exterior
E
D
A. Unlock and open the window.
B. Place the lock lever in the locked position.
C. From the exterior of the window, insert a
small flat-blade screwdriver between the
cam and lock lever near the bottom of
the opening between the stop and frame
gasket.
D. Push the screwdriver inwards with a small
amount of pressure; then turn the blade
slightly clockwise for a left hand unit,
counter-clockwise for a right hand unit.
DO NOT over-twist the screwdriver, this
can damage the lock driver.
Note: This will release the hook in the
lever from the cam hook.
E. Remove the lock lever by pulling it toward
the interior of the building.
F. To install a lock lever, hold it in the lock
position and insert it, from the interior, into
the slot until it snaps into the cam.
