APPENDIX B

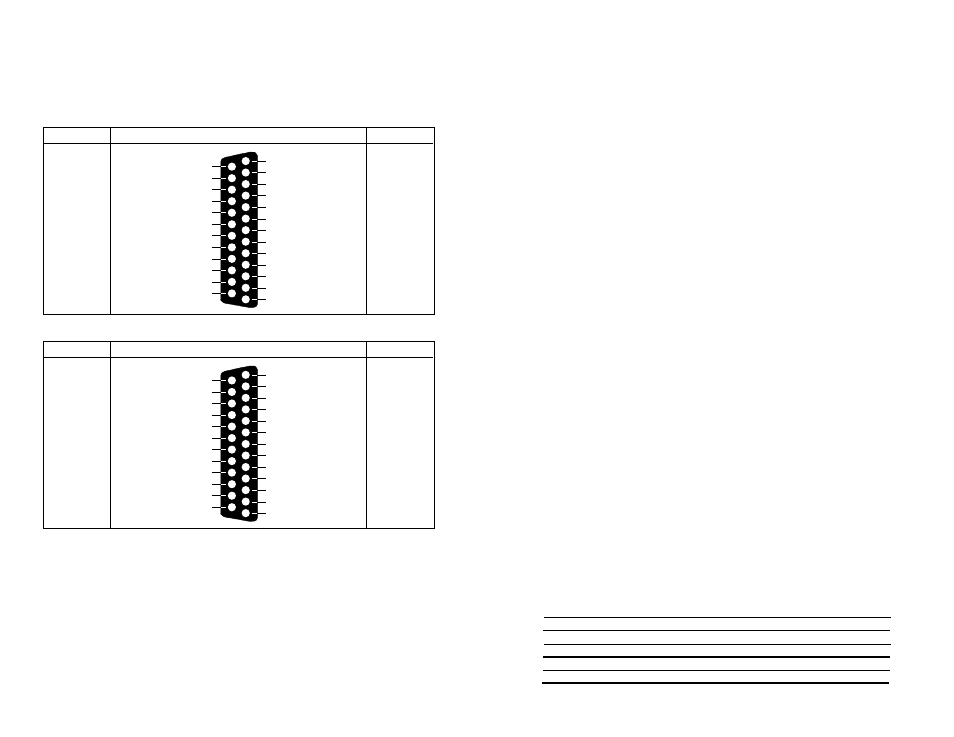

PATTON MODEL 2085 RS-232 PIN CONFIGURATIONS
Copyright ©
Patton Electronics Company
All Rights Reserved
1- (FG) Frame Ground
2- (TD) Transmit Data
To Model 2085
3- (RD) Receive Data
From Model 2085
4- (RTS) Request to Send
To Model 2085
5- (CTS) Clear to Send
From Model 2085
6- (DSR) Data Set Ready
From Model 2085
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
From Model 2085
To Model 2085
Data Term. Ready (DTR) - 20
DIRECTION
“DCE” SETTING
DIRECTION
1- (FG) Frame Ground
2- (TD) Transmit Data
From Model 2085
3- (RD) Receive Data
To Model 2085
4- (RTS) Request to Send
From Model 2085
5- (CTS) Clear to Send
To Model 2085
6- (DSR) Data Set Ready
To Model 2085
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
To Model 2085
From Model 2085 Data Term. Ready (DTR) - 20
DIRECTION
“DTE” SETTING
DIRECTION
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do appreciate
your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data communications
products in the world including CSU/DSU's, network termination units,
powered and self-powered short range modems, fiber optic modems, interface
converters, baluns, electronic data switches, data-line surge protectors,
multiplexers, transceivers, hubs, print servers and much more. We produce
these products at our Gaithersburg, MD, USA, facility, and can custom
manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the following
ways to tell us how you like this product and how we can meet your product
needs today and in the future.
Web:
http://www.patton.com
Sales E-mail:
Support E-mail: [email protected]
Phone - Sales
(301) 975-1000
Phone - Support
(301) 975-1007
Fax:
(301) 869-9293
Mail:
Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is BABT and ISO 9001 certified. We meet and exceed the highest
standards in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any aspect of
this product or the service provided from Patton Electronics or its distributors,
please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product.
