10 DX850 Label Dispenser
3. A label will peel off the liner until it trips the Label Sensor. (Figure 3-3.)
4. Pull the label off the liner with a quick upward motion. (Figure 3-4.)
Note: For labels higher than 3" (76.2 mm) you will have to slowly pull up on the label with continuous
force until the end of the label clears the Guide Roller. For these type of labels set the label sensor
bar to the maximum distance from the Peel Edge.
5. When you are ready to stop dispensing labels or if you want to stop for another reason such
as adjusting the label sensor position, simply press the Start/Stop Button.
6. To remove the label stock, disengage the Liner Idler Roller by pulling back on the tabs.

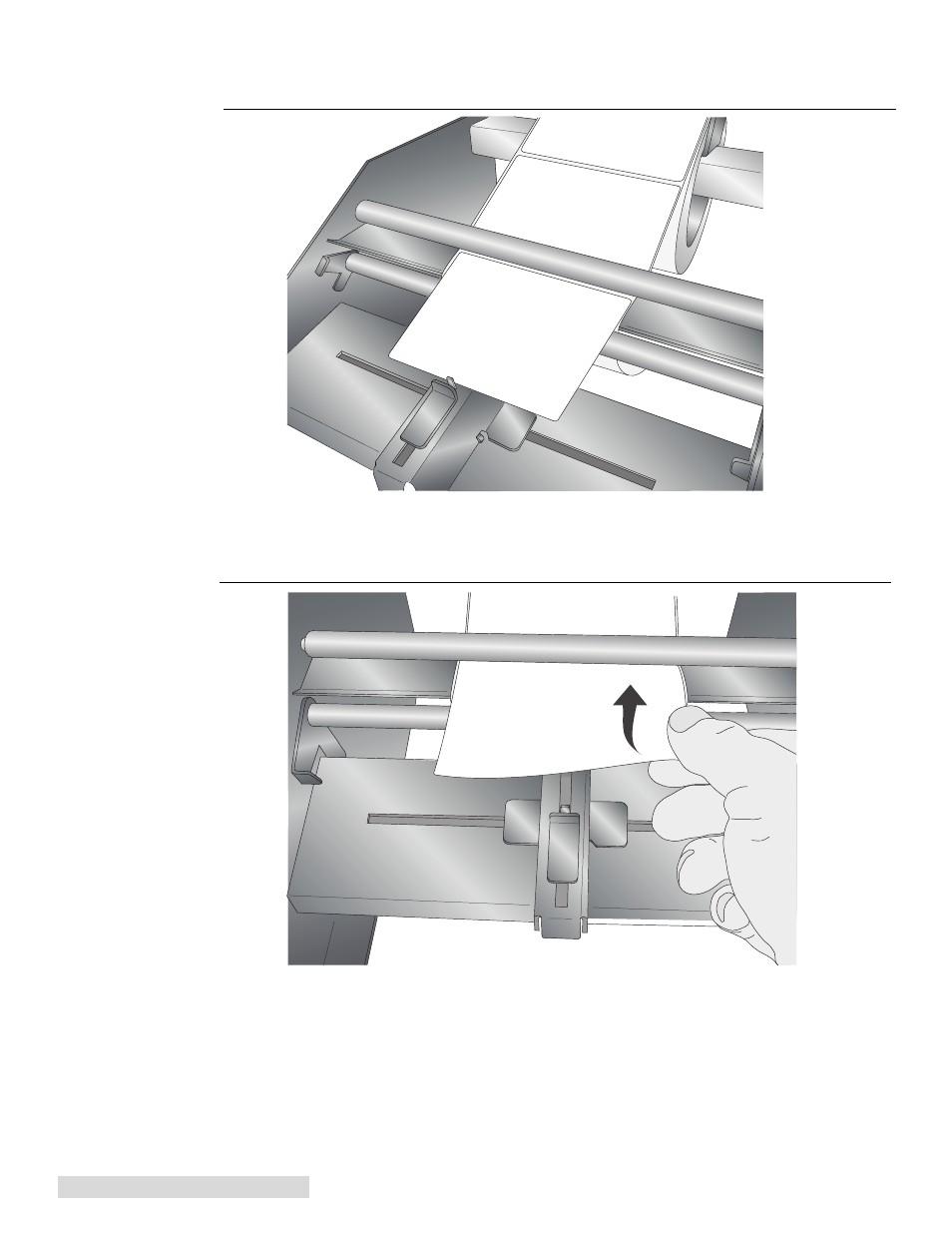

Figure 3-3.
Figure 3-4.
