Preparation

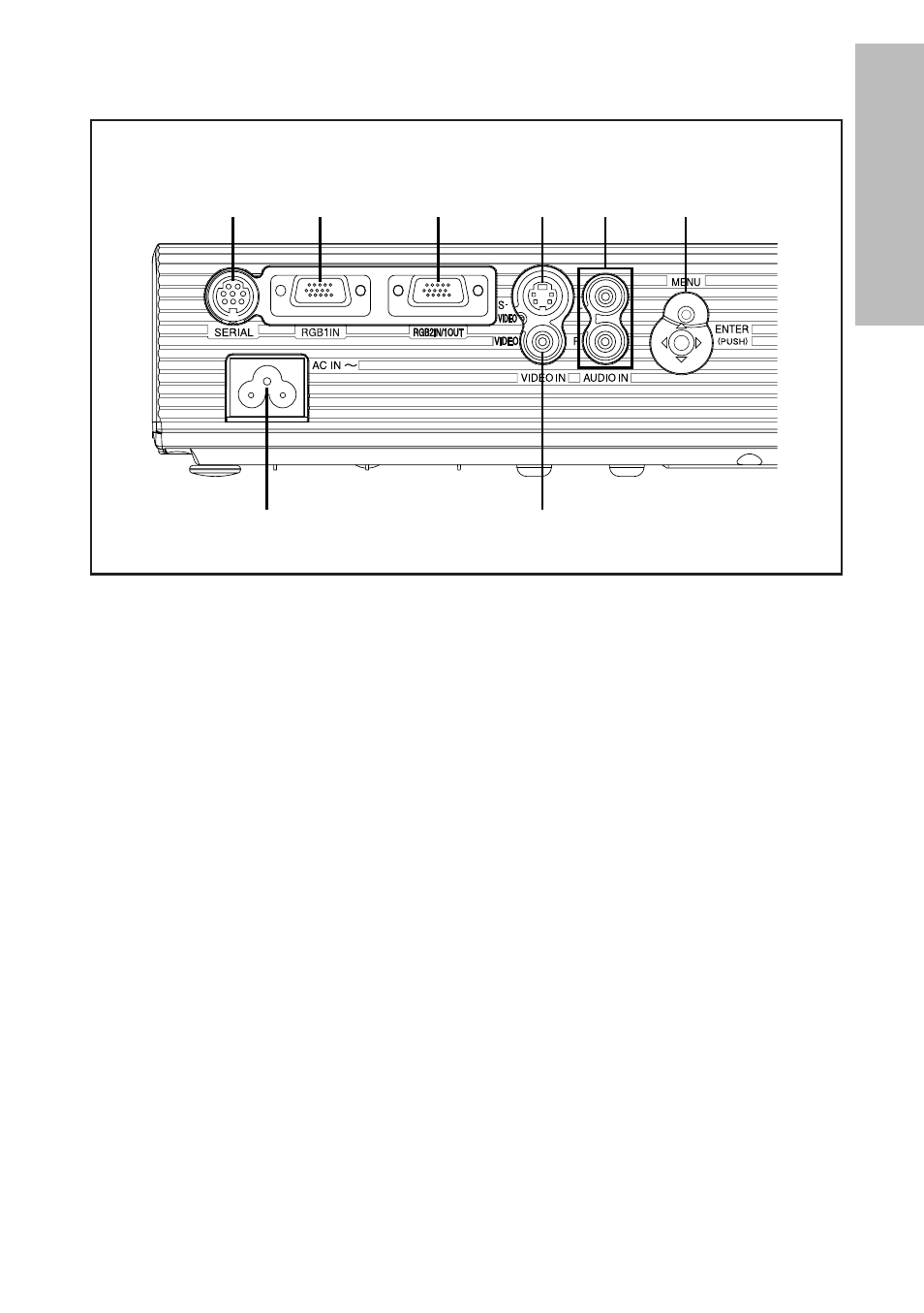

Connector panel
# Power input socket (AC IN) (page 24)
The accessory power cord is connected here.
Do not use any power cord other than the accessory power cord.
$ SERIAL connector (pages 21, 22 and 64)
This connector is used to connect a personal computer to the projector in
order to control the projector externally. (RS-232C compatible)
% RGB1 IN connector (pages 21 and 22)
This connector is used to input RGB signals and YP
B
P
R
signals.
& RGB2 IN/1 OUT connector (pages 21, 22 and 46)
This connector is used to input or output RGB signals and YP
B
P
R
signals.
Adjust “RGB2 SELECT” in the “OPTION” menu to select whether you want
input or output with this connector.
' S-VIDEO IN connector (pages 22 and 42)
This connector is used to input signals from S-VIDEO-compatible
equipment such as a video deck. The connector is S1 signal compatible,
and it automatically switches between 16:9 and 4:3 aspect ratios in
accordance with the type of signal being input.
( VIDEO IN connector (page 22)
This connector is used to input video signals from video equipment such
as a video deck.
) AUDIO IN L-R connectors (pages 21 and 22)
* Menu operation (page 16)
$ % & ' * )
( #
